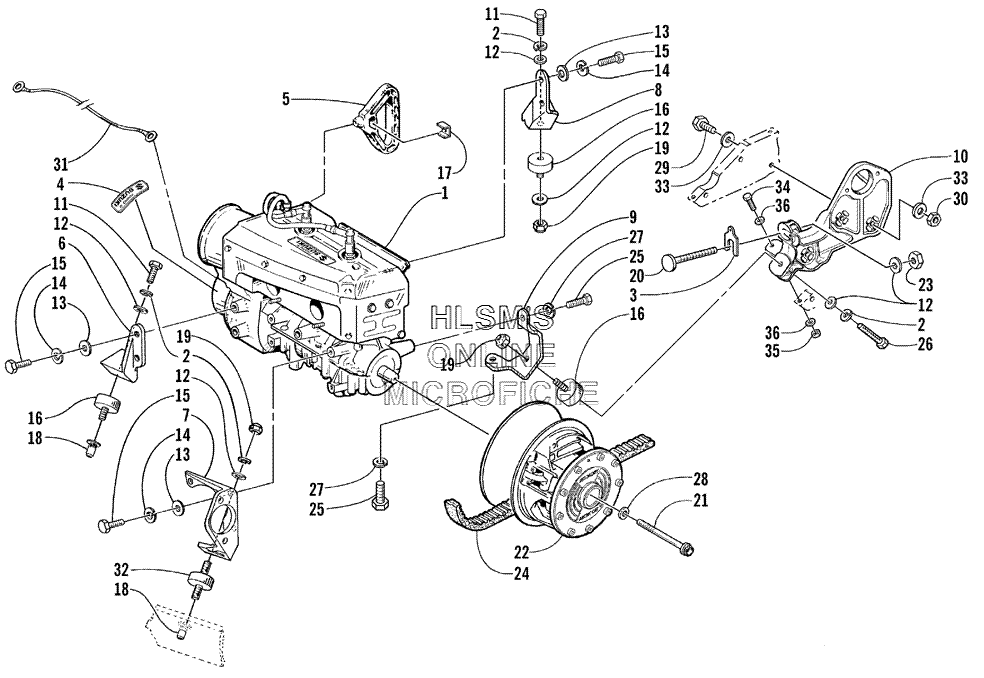

ENGINE AND RELATED PARTS для Arctic Cat Z 440 - 2000 года выпуска
-
№АртикулНазвание
-
10662-262 ENGINE, AS44A3ENGINE, AS44A3
-
28051-277 WASHER, LOCKWASHER, LOCK
-
30608-055 SHIM, ENGINE MOUNT, 0.030 IN.SHIM, ENGINE MOUNT, 0.030 IN.
-
30608-056 SHIM, ENGINE MOUNT, 0.060 IN.SHIM, ENGINE MOUNT, 0.060 IN.
-
41611-588 DECAL, ENGINE, SUZUKIDECAL, ENGINE, SUZUKI
-
50636-363 HANDLE, RECOILHANDLE, RECOIL
-
60708-050 BRACKET, ENGINE MOUNTING (RIGHT/FRONT)BRACKET, ENGINE MOUNTING (RIGHT/FRONT)
-
70608-287 BRACKET, ENGINE MOUNTING (LEFT/FRONT)BRACKET, ENGINE MOUNTING (LEFT/FRONT)
-
80708-048 BRACKET, ENGINE MOUNTING (RIGHT/REAR)BRACKET, ENGINE MOUNTING (RIGHT/REAR)
-
90608-179 BRACKET, ENGINE MOUNTING (LEFT/REAR)BRACKET, ENGINE MOUNTING (LEFT/REAR)
-
100708-054 BRACKET, ENGINE MOUNTING/ BEARING SUPPORTBRACKET, ENGINE MOUNTING/ BEARING SUPPORT
-
118002-222 SCREW, CAPSCREW, CAP
-
128050-277 WASHERWASHER
-
138050-242 WASHERWASHER
-
148051-242 WASHER, LOCKWASHER, LOCK
-
158012-132 SCREW, CAPSCREW, CAP
-
160608-217 MOUNT, ENGINEMOUNT, ENGINE
-
170606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
180623-699 INSERT, THREADEDINSERT, THREADED
-
198040-486 NUT, LOCKNUT, LOCK
-
200608-197 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
220725-264 CLUTCH, DRIVECLUTCH, DRIVE
-
238042-486 NUTNUT
-
240627-021 BELT, DRIVEBELT, DRIVE
-
258002-402 SCREW, CAPSCREW, CAP
-
268002-226 SCREW, CAPSCREW, CAP
-
278051-332 WASHER, LOCKWASHER, LOCK
-
280623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
290623-628 SCREW, CAPSCREW, CAP
-
300623-026 NUT, LOCKNUT, LOCK
-
310686-099 CABLE, GROUNDCABLE, GROUND
-
320608-118 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
-
330623-044 WASHERWASHER
-
348002-041 SCREW, CAPSCREW, CAP
-
358040-366 NUT, LOCKNUT, LOCK
-
368050-222 WASHERWASHER
