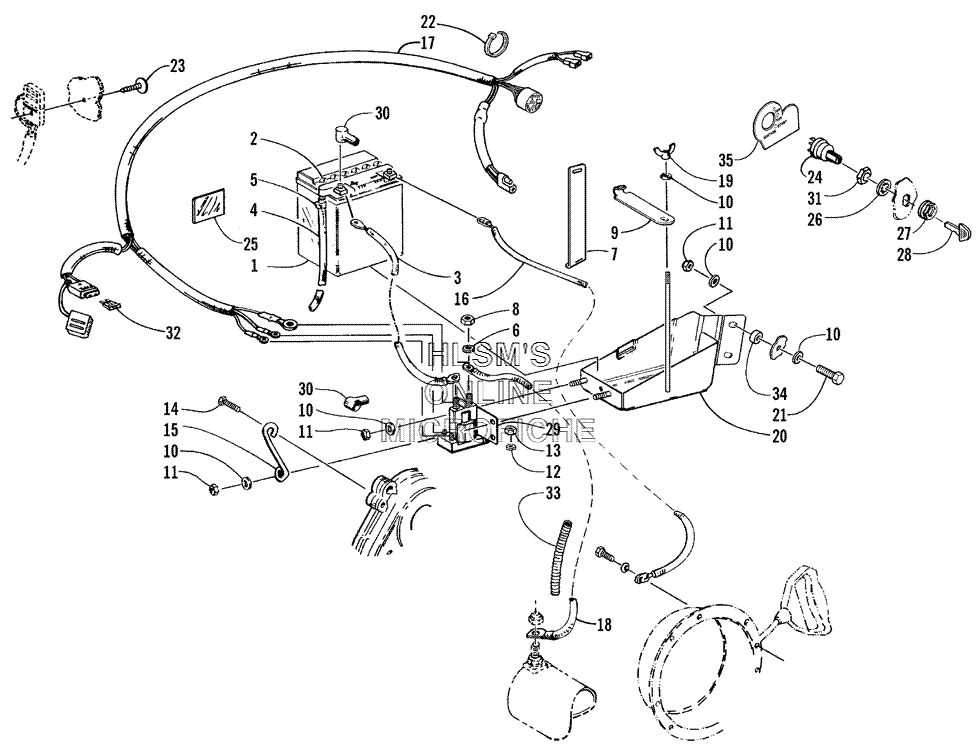

BATTERY- SOLENOID- AND CABLES для Arctic Cat Z 440 - 2000 года выпуска`
-
№АртикулНазвание
-
-1636-487 ELECTRIC START KIT (STANDARD ON Z 440 ES)ELECTRIC START KIT (STANDARD ON Z 440 ES)
-
10745-045 BATTERY (INC. 2 AND 4, 5)BATTERY (INC. 2 AND 4, 5)
-
20645-045 . CAP, BATTERY. CAP, BATTERY
-
30645-142 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
40645-263 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-152 CLAMP, HOSECLAMP, HOSE
-
68051-242 WASHER, LOCKWASHER, LOCK
-
70645-245 STRAP, BATTERYSTRAP, BATTERY
-
88043-452 NUTNUT
-
90645-243 STRAP, BATTERYSTRAP, BATTERY
-
108050-217 WASHERWASHER
-
118040-366 NUT, LOCKNUT, LOCK
-
128051-152 WASHER, LOCKWASHER, LOCK
-
138042-272 NUTNUT
-
140623-640 SCREW, CAPSCREW, CAP
-
150645-247 SUPPORT, BATTERY TRAYSUPPORT, BATTERY TRAY
-
160645-080 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
170686-643 HARNESS, ELECTRIC STARTHARNESS, ELECTRIC START
-
180645-244 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
190623-325 NUT, WINGNUT, WING
-
200745-133 TRAY, BATTERYTRAY, BATTERY
-
218002-040 SCREW, CAPSCREW, CAP
-
220123-788 TIE, CABLETIE, CABLE
-
230623-589 CLIP, RETAININGCLIP, RETAINING
-
240609-449 SWITCH, IGNITIONSWITCH, IGNITION
-
250645-151 DECAL, WARNING, BATTERYDECAL, WARNING, BATTERY
-
260123-899 WASHER, IGNITIONWASHER, IGNITION
-
270609-113 NUT, RETAININGNUT, RETAINING
-
280609-451 KEYKEY
-
290645-196 SOLENOIDSOLENOID
-
290645-078 SOLENOID (INCLUDED IN KIT)SOLENOID (INCLUDED IN KIT)
-
300645-019 BOOT, TERMINALBOOT, TERMINAL
-
310123-900 NUT, IGNITIONNUT, IGNITION
-
320630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
330716-391 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
340645-302 SPACER, TRAY, BATTERYSPACER, TRAY, BATTERY
-
352611-744 DECAL, CONSOLE SWITCH (RIGHT)DECAL, CONSOLE SWITCH (RIGHT)
