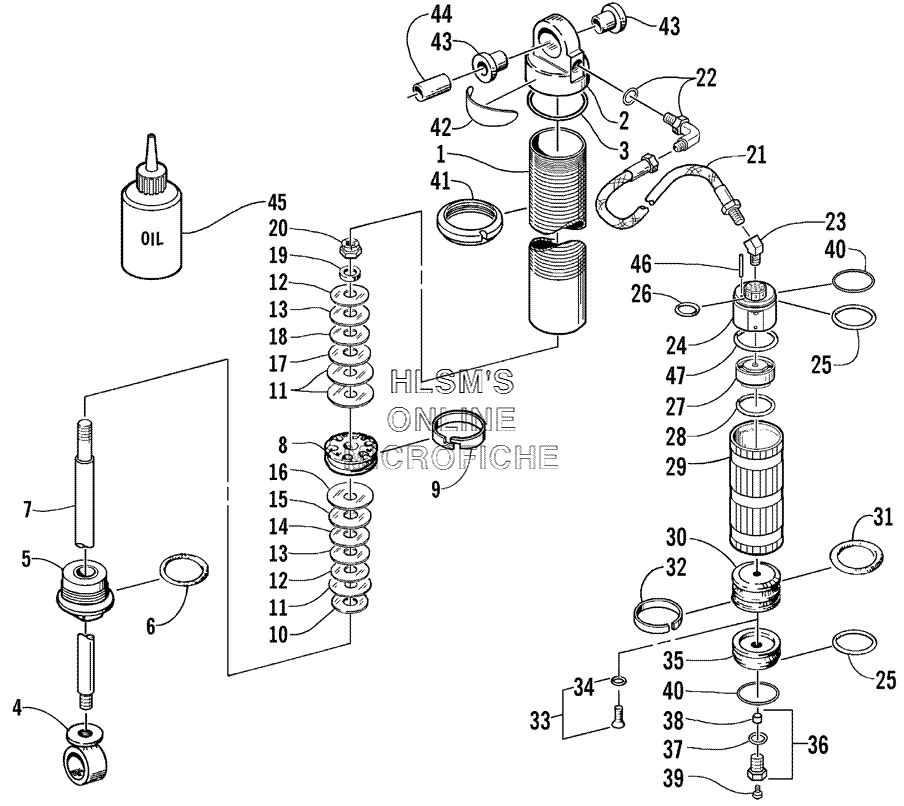

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat Z 440 Sno Pro (International) - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    0704-513 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    1603-318 BODY, SHOCK
    BODY, SHOCK
  • 2
    1604-294 END CAP, SHOCK (INC. 3)
    END CAP, SHOCK (INC. 3)
  • 3
    1604-280 O-RING, END CAP
    O-RING, END CAP
  • 4
    0704-484 EYELET, SHOCK
    EYELET, SHOCK
  • 5
    0704-386 CAP, SHOCK ASSEMBLY (INC. 6)
    CAP, SHOCK ASSEMBLY (INC. 6)
  • 6
    1604-271 O-RING
    O-RING
  • 7
    1603-319 ROD, SHOCK
    ROD, SHOCK
  • 8
    0603-952 PISTON, 0.059 IN. ORIFICE
    PISTON, 0.059 IN. ORIFICE
  • 9
    1604-274 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 10
    1604-272 WASHER, TOP, OUTER
    WASHER, TOP, OUTER
  • 11
    1603-125 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 12
    1603-055 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 13
    1603-065 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 14
    1603-076 VALVE, 1.000 X 0.012 IN.
    VALVE, 1.000 X 0.012 IN.
  • 15
    1603-096 VALVE, 1.100 X 0.012 IN.
    VALVE, 1.100 X 0.012 IN.
  • 16
    1603-137 VALVE, 1.300 X 0.015 IN.
    VALVE, 1.300 X 0.015 IN.
  • 17
    1603-095 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 18
    1603-075 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 19
    1604-273 WASHER, BACKUP
    WASHER, BACKUP
  • 20
    0623-696 NUT, CAP
    NUT, CAP
  • 21
    1604-532 HOSE, RESERVOIR/SHOCK (INC. 22 AND 23)
    HOSE, RESERVOIR/SHOCK (INC. 22 AND 23)
  • 22
    1604-533 FITTING, ELBOW W/O-RING
    FITTING, ELBOW W/O-RING
  • 23
    1604-534 FITTING, ELBOW, 45Ш
    FITTING, ELBOW, 45Ш
  • 24
    0703-541 END CAP, RESERVOIR (INC. ONE NO. 25 AND 26)
    END CAP, RESERVOIR (INC. ONE NO. 25 AND 26)
  • 25
    0603-968 O-RING
    O-RING
  • 26
    0603-975 O-RING
    O-RING
  • 27
    0703-542 RELIEF, OIL, 2, PORT ASSEMBLY
    RELIEF, OIL, 2, PORT ASSEMBLY
  • 28
    0603-984 RETAINER, OIL RELIEF
    RETAINER, OIL RELIEF
  • 29
    1603-315 BODY, RESERVOIR
    BODY, RESERVOIR
  • 30
    0603-986 PISTON, RESERVOIR (INC. 31)
    PISTON, RESERVOIR (INC. 31)
  • 31
    0603-987 O-RING
    O-RING
  • 32
    0603-988 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 33
    0623-697 SCREW, MACHINE, PISTON (INC. 34)
    SCREW, MACHINE, PISTON (INC. 34)
  • 34
    1604-279 O-RING
    O-RING
  • 35
    0703-540 END CAP, RESERVOIR (INC. ONE NO. 25)
    END CAP, RESERVOIR (INC. ONE NO. 25)
  • 36
    0704-383 VALVE, PRESSURE (INC. 37 AND 38)
    VALVE, PRESSURE (INC. 37 AND 38)
  • 37
    1604-284 O-RING, VALVE
    O-RING, VALVE
  • 39
    0624-433 SCREW, MACHINE, VALVE
    SCREW, MACHINE, VALVE
  • 40
    0603-985 RETAINER, END CAP
    RETAINER, END CAP
  • 41
    0603-960 NUT, SPRING ADJUSTER
    NUT, SPRING ADJUSTER
  • 42
    3611-007 DECAL, WARNING, SHOCK
    DECAL, WARNING, SHOCK
  • 43
    1604-287 BUSHING, SHOCK
    BUSHING, SHOCK
  • 44
    1604-502 SLEEVE, EYELET
    SLEEVE, EYELET
  • 45
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
  • 46
    1603-406 PIN, INNERDICATOR KNOB
    PIN, INNERDICATOR KNOB
  • 47
    0603-970 O-RING
    O-RING
