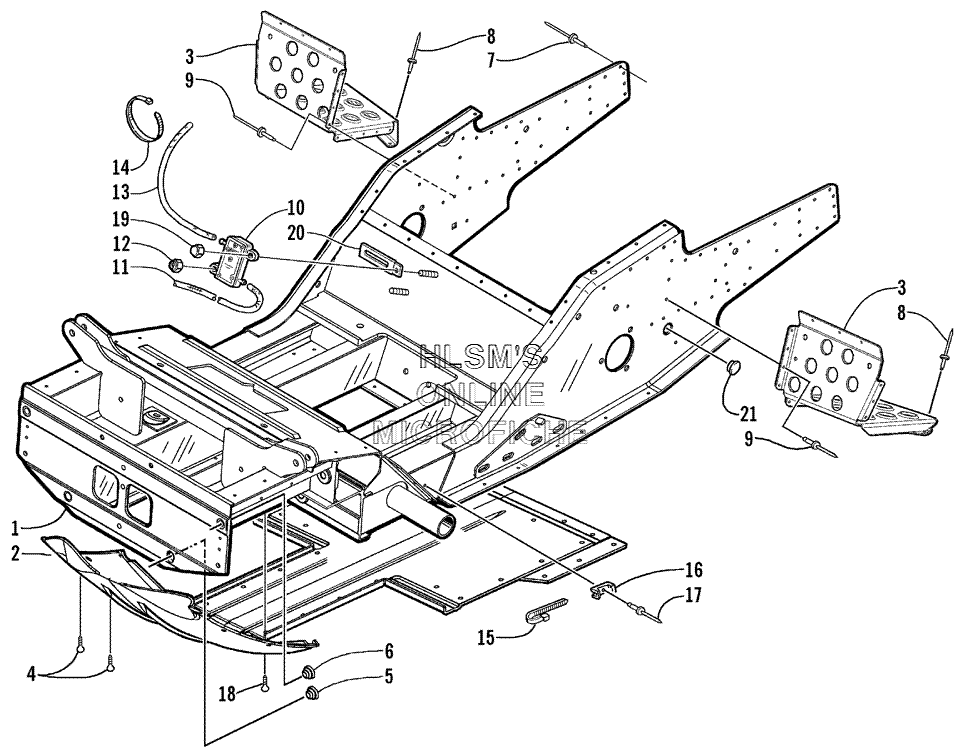

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat Z 440 Sno Pro (International) - 2000 года выпуска
-
№АртикулНазвание
-
10707-499 CHASSIS ASSEMBLYCHASSIS ASSEMBLY
-
21606-719 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
31706-366 FOOTREST (RIGHT/BLACK)FOOTREST (RIGHT/BLACK)
-
31706-367 FOOTREST (LEFT) (BLACK)FOOTREST (LEFT) (BLACK)
-
40623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
50607-420 INSERT A, ARM MOUNT (LOWER)INSERT A, ARM MOUNT (LOWER)
-
60607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
78060-504 RIVETRIVET
-
80623-282 RIVETRIVET
-
90623-166 RIVETRIVET
-
100670-163 PUMP, FUELPUMP, FUEL
-
110610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
110610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
128040-366 NUT, LOCKNUT, LOCK
-
130610-007 HOSE, IMPULSEHOSE, IMPULSE
-
140123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
150123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
160623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
178060-428 RIVETRIVET
-
180623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
190123-108 NUT, CAPNUT, CAP
-
203002-964 CLAMP, WIRECLAMP, WIRE
-
210623-471 PLUG, HOLEPLUG, HOLE
