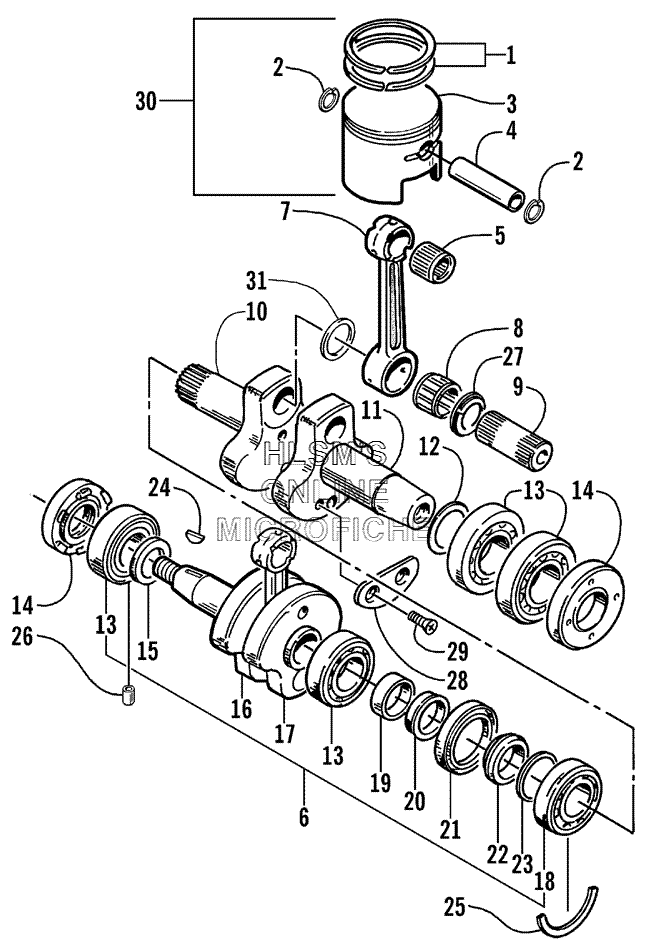

PISTON AND CRANKSHAFT для Arctic Cat Z 370 ES - 2000 года выпуска`
-
№АртикулНазвание
-
13004-825 RING SET, PISTONRING SET, PISTON
-
23003-537 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
33005-447 PISTONPISTON
-
43005-455 PIN, PISTONPIN, PISTON
-
53003-107 BEARING, PISTON PINBEARING, PISTON PIN
-
63005-457 CRANKSHAFT ASSEMBLY (INC. 7, 13 AND 15, 23)CRANKSHAFT ASSEMBLY (INC. 7, 13 AND 15, 23)
-
73005-456 . ROD, CONNECTING. ROD, CONNECTING
-
83003-744 . BEARING, CRANK PIN. BEARING, CRANK PIN
-
93002-173 . PIN, CRANK. PIN, CRANK
-
103002-841 . CRANKSHAFT (MIDDLE). CRANKSHAFT (MIDDLE)
-
113005-345 . CRANKSHAFT (LEFT). CRANKSHAFT (LEFT)
-
123002-025 . WASHER (LEFT). WASHER (LEFT)
-
133002-624 . BEARING, CRANKSHAFT. BEARING, CRANKSHAFT
-
143002-717 SEAL, OILSEAL, OIL
-
153008-501 WASHERWASHER
-
163005-344 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
173002-840 WHEEL, CRANKSHAFTWHEEL, CRANKSHAFT
-
183005-451 BEARINGBEARING
-
193002-827 SPACERSPACER
-
203005-373 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
213003-248 RETAINERRETAINER
-
223003-171 RACE, INNERRACE, INNER
-
233003-112 RING (CENTER)RING (CENTER)
-
243004-540 KEYKEY
-
253003-736 C, RING, CRANKSHAFTC, RING, CRANKSHAFT
-
263003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
273005-458 WASHER, CRANK PIN BEARINGWASHER, CRANK PIN BEARING
-
283004-746 BALANCERBALANCER
-
293004-284 SCREW, MACHINESCREW, MACHINE
-
303005-476 PISTON ASSEMBLY (INC 1-4)PISTON ASSEMBLY (INC 1-4)
-
313005-450 WASHER, CRANK PINWASHER, CRANK PIN
