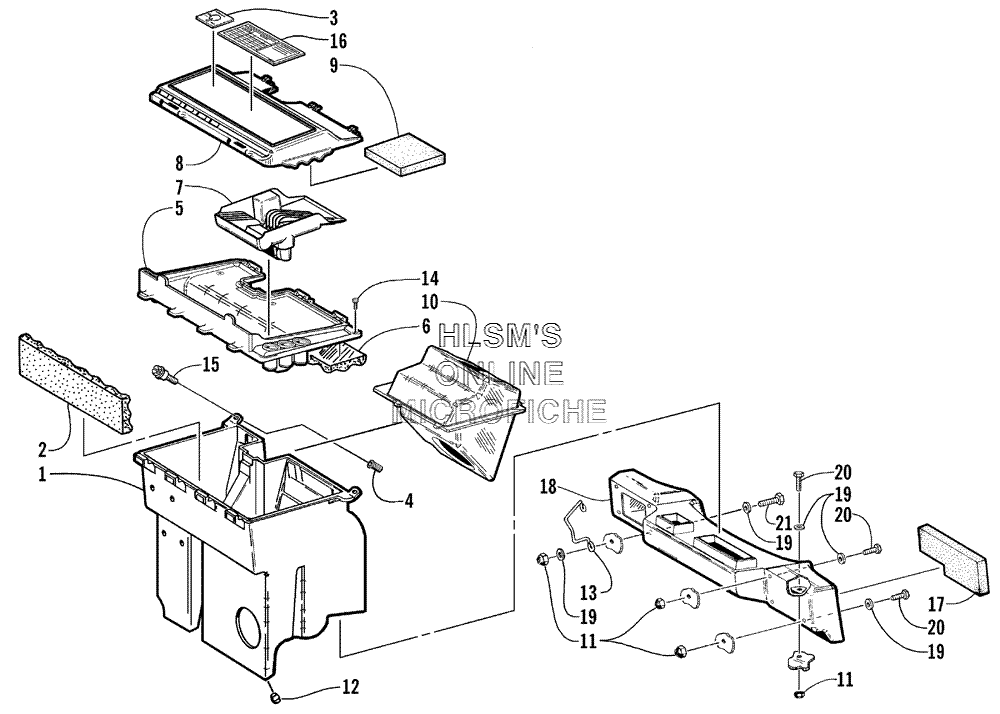

AIR SILENCER ASSEMBLY для Arctic Cat Z 370 ES - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-337 SILENCER, AIR, ASSEMBLY
    SILENCER, AIR, ASSEMBLY
  • 2
    0617-254 FOAM, AIR SILENCER (FRONT)
    FOAM, AIR SILENCER (FRONT)
  • 3
    0611-978 DECAL, FUEL SHUT, OFF VALVE
    DECAL, FUEL SHUT, OFF VALVE
  • 4
    0623-779 INSERT
    INSERT
  • 5
    1670-050 COVER, AIR SILENCER
    COVER, AIR SILENCER
  • 6
    0617-251 FOAM, AIR SILENCER, COVER
    FOAM, AIR SILENCER, COVER
  • 7
    0670-826 TRAY, TOOL
    TRAY, TOOL
  • 8
    1670-049 COVER, TOOL TRAY
    COVER, TOOL TRAY
  • 9
    0617-294 FOAM, TOOL TRAY
    FOAM, TOOL TRAY
  • 10
    1670-061 RESONATOR, Q, WAVE
    RESONATOR, Q, WAVE
  • 11
    8040-366 NUT, LOCK
    NUT, LOCK
  • 12
    1606-038 BUMPER, AIR SILENCER
    BUMPER, AIR SILENCER
  • 13
    0645-269 BRACKET, GUARD, HARNESS/ROPE
    BRACKET, GUARD, HARNESS/ROPE
  • 14
    0623-770 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 15
    0623-780 SCREW, MACHINE, HEX SHOULDER
    SCREW, MACHINE, HEX SHOULDER
  • 16
    3611-588 DECAL, JET CHART
    DECAL, JET CHART
  • 17
    0617-270 FOAM, PLENUM, INTAKE
    FOAM, PLENUM, INTAKE
  • 18
    0670-787 PLENUM, AIR SILENCER
    PLENUM, AIR SILENCER
  • 19
    8050-222 WASHER
    WASHER
  • 20
    8002-040 SCREW, CAP
    SCREW, CAP
  • 21
    8002-042 SCREW, CAP
    SCREW, CAP
