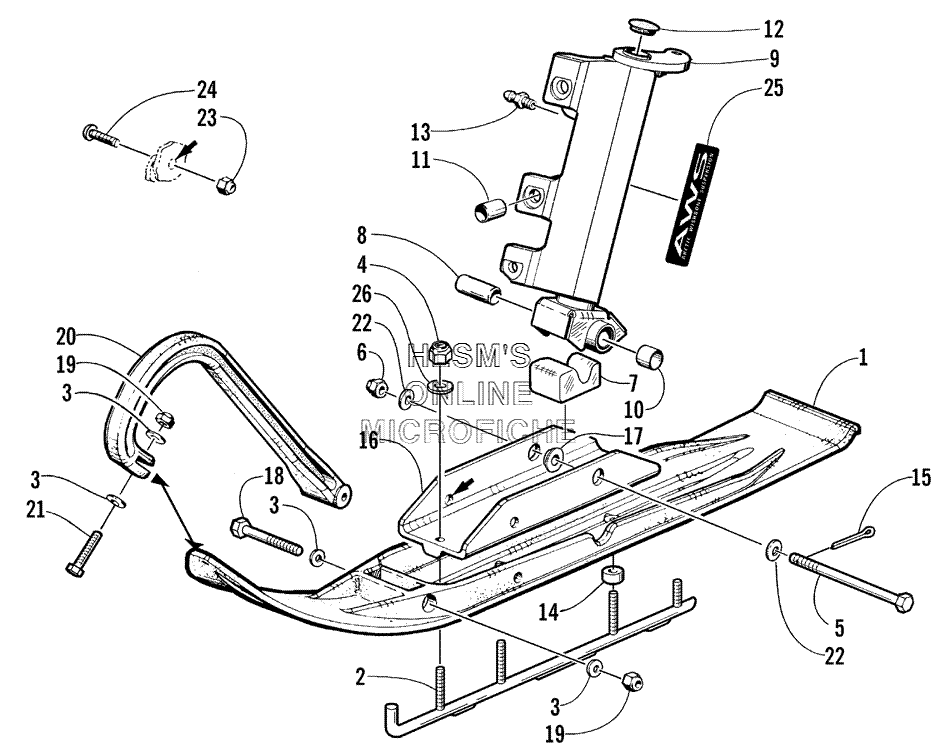

SKI AND SPINDLE ASSEMBLY для Arctic Cat Powder Special 700 LE (Green) - 2000 года выпуска
-
№АртикулНазвание
-
10703-492 SKI, PLASTICSKI, PLASTIC
-
20703-360 WEARBARWEARBAR
-
38050-247 WASHERWASHER
-
48040-486 NUT, LOCKNUT, LOCK
-
50623-552 SCREW, CAPSCREW, CAP
-
60123-296 NUT, LOCKNUT, LOCK
-
70603-036 DAMPER, SKIDAMPER, SKI
-
80603-034 AXLE, SPINDLEAXLE, SPINDLE
-
90703-576 SPINDLE, STEERING (RIGHT) (INC. 10, 11, 13, AND 26) (LE)SPINDLE, STEERING (RIGHT) (INC. 10, 11, 13, AND 26) (LE)
-
90703-577 SPINDLE, STEERING (LEFT) (INC. 10, 11, 13, AND 26) (LE)SPINDLE, STEERING (LEFT) (INC. 10, 11, 13, AND 26) (LE)
-
110603-083 . BEARING (LE). BEARING (LE)
-
120603-049 CAP, SPINDLECAP, SPINDLE
-
130623-010 FITTING, GREASEFITTING, GREASE
-
140603-616 SPACER, SADDLESPACER, SADDLE
-
150123-458 PIN, COTTERPIN, COTTER
-
160703-269 SADDLE, SKI (INC. 17)SADDLE, SKI (INC. 17)
-
170603-621 . INSERT, SKI SADDLE. INSERT, SKI SADDLE
-
188002-143 SCREW, CAPSCREW, CAP
-
198041-426 NUT, LOCKNUT, LOCK
-
200603-624 HANDLE, PLASTICHANDLE, PLASTIC
-
218002-135 SCREW, CAPSCREW, CAP
-
220623-728 WASHERWASHER
-
238041-366 NUT, LOCKNUT, LOCK
-
248017-581 SCREW, MACHINESCREW, MACHINE
-
253611-461 DECAL, "AWS", SPINDLEDECAL, "AWS", SPINDLE
-
268050-277 WASHERWASHER
