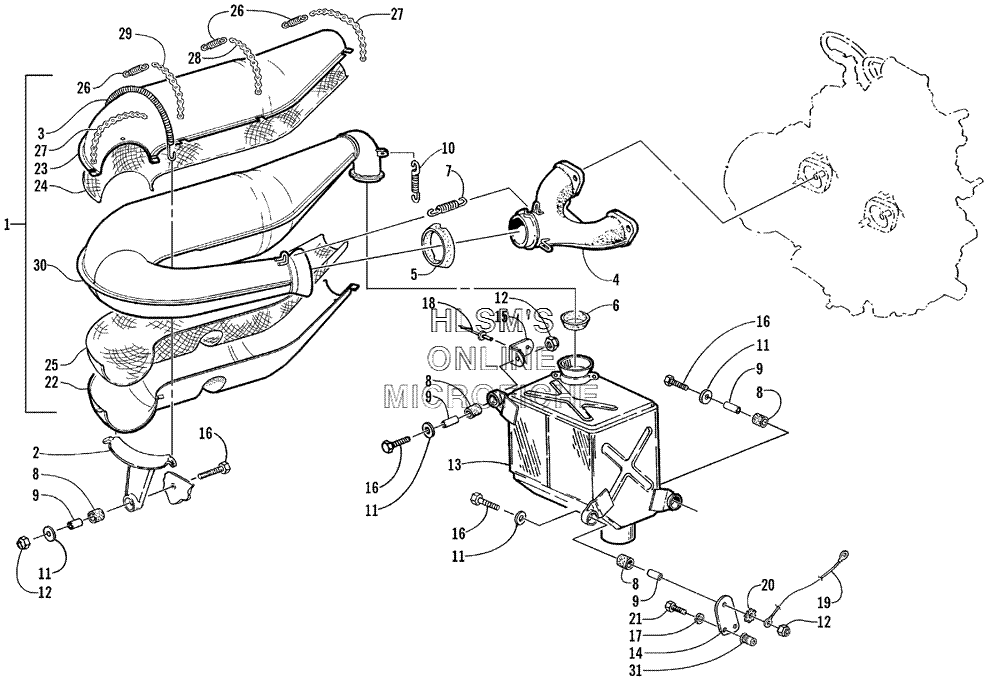

EXHAUST ASSEMBLY для Arctic Cat Powder Special 700 LE (Green) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0712-408 CHAMBER, EXPANSION (INC. 3 AND 22, 28)
    CHAMBER, EXPANSION (INC. 3 AND 22, 28)
  • 2
    0712-430 BRACKET, SUPPORT
    BRACKET, SUPPORT
  • 3
    0612-027 SPRING, EXTENSION
    SPRING, EXTENSION
  • 4
    0712-399 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 5
    1612-014 GASKET, EXHAUST
    GASKET, EXHAUST
  • 6
    0612-993 GASKET, EXHAUST, TAILPIPE
    GASKET, EXHAUST, TAILPIPE
  • 7
    0612-820 SPRING, EXTENSION
    SPRING, EXTENSION
  • 8
    0612-107 BUSHING, RESONATOR, RUBBER
    BUSHING, RESONATOR, RUBBER
  • 9
    0612-108 SPACER, RESONATOR
    SPACER, RESONATOR
  • 10
    0612-471 SPRING, EXHAUST
    SPRING, EXHAUST
  • 11
    0623-184 WASHER
    WASHER
  • 12
    8040-366 NUT, LOCK
    NUT, LOCK
  • 13
    0712-433 RESONATOR
    RESONATOR
  • 14
    0612-784 BRACKET, MOUNTING, RESONATOR
    BRACKET, MOUNTING, RESONATOR
  • 15
    0612-790 BRACKET, MOUNTING, EXHAUST
    BRACKET, MOUNTING, EXHAUST
  • 16
    8002-044 SCREW, CAP
    SCREW, CAP
  • 17
    8051-217 WASHER, LOCK
    WASHER, LOCK
  • 18
    8061-708 RIVET
    RIVET
  • 19
    0686-126 WIRE, GROUND
    WIRE, GROUND
  • 20
    8053-212 WASHER, LOCK, EXTERNAL TOOTH
    WASHER, LOCK, EXTERNAL TOOTH
  • 21
    8002-040 SCREW, CAP
    SCREW, CAP
  • 22
    1612-144 COVER (LOWER)
    COVER (LOWER)
  • 23
    1612-143 COVER (UPPER)
    COVER (UPPER)
  • 24
    1612-008 INSULATION (UPPER)
    INSULATION (UPPER)
  • 25
    1612-104 INSULATION (LOWER)
    INSULATION (LOWER)
  • 26
    0123-321 SPRING, EXTENSION
    SPRING, EXTENSION
  • 27
    0624-493 TIE, PERFORATED BAND
    TIE, PERFORATED BAND
  • 28
    0624-494 TIE, PERFORATED BAND
    TIE, PERFORATED BAND
  • 29
    0624-495 TIE, PERFORATED BAND
    TIE, PERFORATED BAND
  • 30
    0712-407 CHAMBER, EXPANSION
    CHAMBER, EXPANSION
  • 31
    0623-582 INSERT
    INSERT
