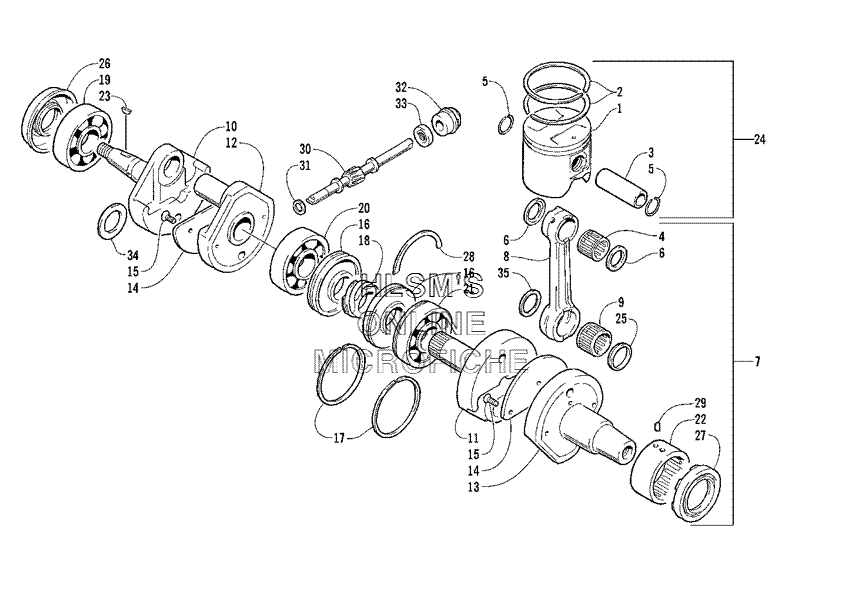

PISTON AND CRANKSHAFT для Arctic Cat Powder Special 600 EFI LE (Black) - 2000 года выпуска
-
№АртикулНазвание
-
13005-601 PISTONPISTON
-
23003-714 RING ASSEMBLYRING ASSEMBLY
-
33008-509 PIN, PISTONPIN, PISTON
-
43008-503 BEARING, PISTON PINBEARING, PISTON PIN
-
53005-304 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
63008-500 WASHER, PISTON PIN BEARINGWASHER, PISTON PIN BEARING
-
73005-665 CRANKSHAFT ASSEMBLY (INC. 8-22)CRANKSHAFT ASSEMBLY (INC. 8-22)
-
83005-492 . ROD, CONNECTING. ROD, CONNECTING
-
93005-505 . BEARING. BEARING
-
103005-495 . CRANKSHAFT - RIGHT. CRANKSHAFT - RIGHT
-
113005-496 . CRANKSHAFT - CENTER. CRANKSHAFT - CENTER
-
123005-497 . WHEEL, CRANKSHAFT. WHEEL, CRANKSHAFT
-
133005-498 . CRANKSHAFT - LEFT. CRANKSHAFT - LEFT
-
143005-500 . BALANCER, CRANKSHAFT. BALANCER, CRANKSHAFT
-
153004-372 . SCREW, MACHINE. SCREW, MACHINE
-
163005-597 . RACE, MIDDLE SEAL. RACE, MIDDLE SEAL
-
173005-508 . RING. RING
-
183005-362 . GEAR, OIL PUMP DRIVE. GEAR, OIL PUMP DRIVE
-
193005-507 . BEARING - RIGHT. BEARING - RIGHT
-
203005-504 . BEARING - MIDDLE. BEARING - MIDDLE
-
213005-503 . BEARING, CRANKSHAFT - CENTER. BEARING, CRANKSHAFT - CENTER
-
223003-805 . BEARING, CRANKSHAFT - LEFT. BEARING, CRANKSHAFT - LEFT
-
233004-540 KEYKEY
-
243005-445 PISTON ASSEMBLY (INC. 1, 2, AND 5)PISTON ASSEMBLY (INC. 1, 2, AND 5)
-
253005-494 WASHER, CRANK PIN BEARINGWASHER, CRANK PIN BEARING
-
263008-525 SEAL, OIL - RIGHTSEAL, OIL - RIGHT
-
273003-759 SEAL, OIL - LEFTSEAL, OIL - LEFT
-
283003-359 C-RING, CRANKSHAFTC-RING, CRANKSHAFT
-
293003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
303005-319 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
313005-049 SHIM, OIL PUMP SHAFTSHIM, OIL PUMP SHAFT
-
323402-360 SEAL, MECHANICAL WATER PUMPSEAL, MECHANICAL WATER PUMP
-
333004-760 SEAL, WATER - OIL PUMPSEAL, WATER - OIL PUMP
-
343005-603 WASHERWASHER
-
353005-502 . WASHER. WASHER
