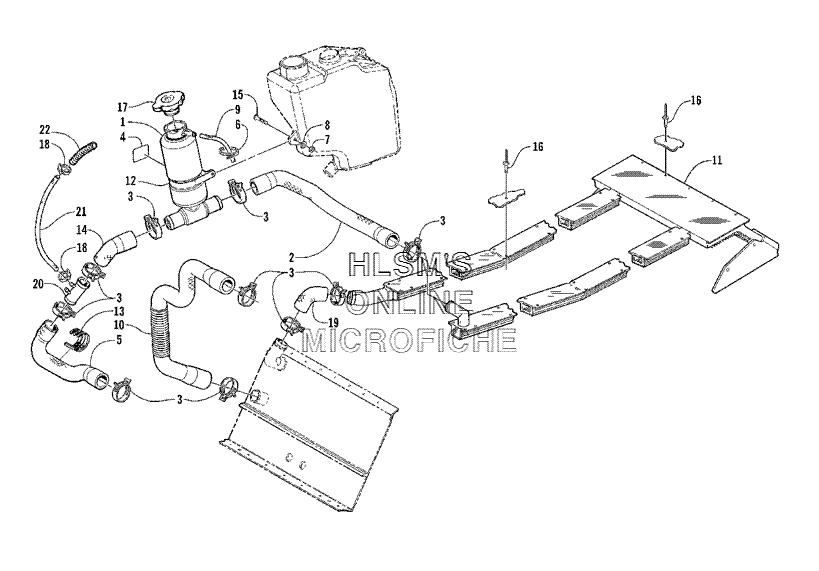

COOLING ASSEMBLY для Arctic Cat Powder Special 600 EFI LE (Black) - 2000 года выпуска
-
№АртикулНазвание
-
11606-396 TANK, COOLANTTANK, COOLANT
-
20610-379 HOSE, COOLANT TANK/HEAT EXCHANGERHOSE, COOLANT TANK/HEAT EXCHANGER
-
30623-736 CLAMP, HOSECLAMP, HOSE
-
42611-758 DECAL, FILL LEVEL - COOLANT TANKDECAL, FILL LEVEL - COOLANT TANK
-
50610-386 HOSE, COOLANT - ENGINE/T-FITTINGHOSE, COOLANT - ENGINE/T-FITTING
-
60123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
78040-366 NUT, LOCKNUT, LOCK
-
88050-217 WASHERWASHER
-
90610-015 HOSE, VENT - 100 FTHOSE, VENT - 100 FT
-
90610-016 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
100610-418 HOSE, COOLANT - ENGINE/ FRONT HEAT EXCHANGER W/PROTECTORHOSE, COOLANT - ENGINE/ FRONT HEAT EXCHANGER W/PROTECTOR
-
111706-089 HEAT EXCHANGERHEAT EXCHANGER
-
120623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
130623-540 CABLE TIE - TRIPLECABLE TIE - TRIPLE
-
140610-192 HOSE, COOLANT - COOLANT TANK/T-FITTINGHOSE, COOLANT - COOLANT TANK/T-FITTING
-
158017-580 SCREW, MACHINESCREW, MACHINE
-
168060-686 RIVETRIVET
-
170606-268 CAP, FILLER NECKCAP, FILLER NECK
-
180623-373 CLAMP, HOSECLAMP, HOSE
-
190610-244 HOSE, COOLANT - FRONT HEAT EXCHANGER/ HEAT EXCHANGERHOSE, COOLANT - FRONT HEAT EXCHANGER/ HEAT EXCHANGER
-
200616-065 T-FITTING - DOUBLET-FITTING - DOUBLE
-
210610-076 HOSE, WATER - 10 FTHOSE, WATER - 10 FT
-
220610-082 COVER, HOSECOVER, HOSE
