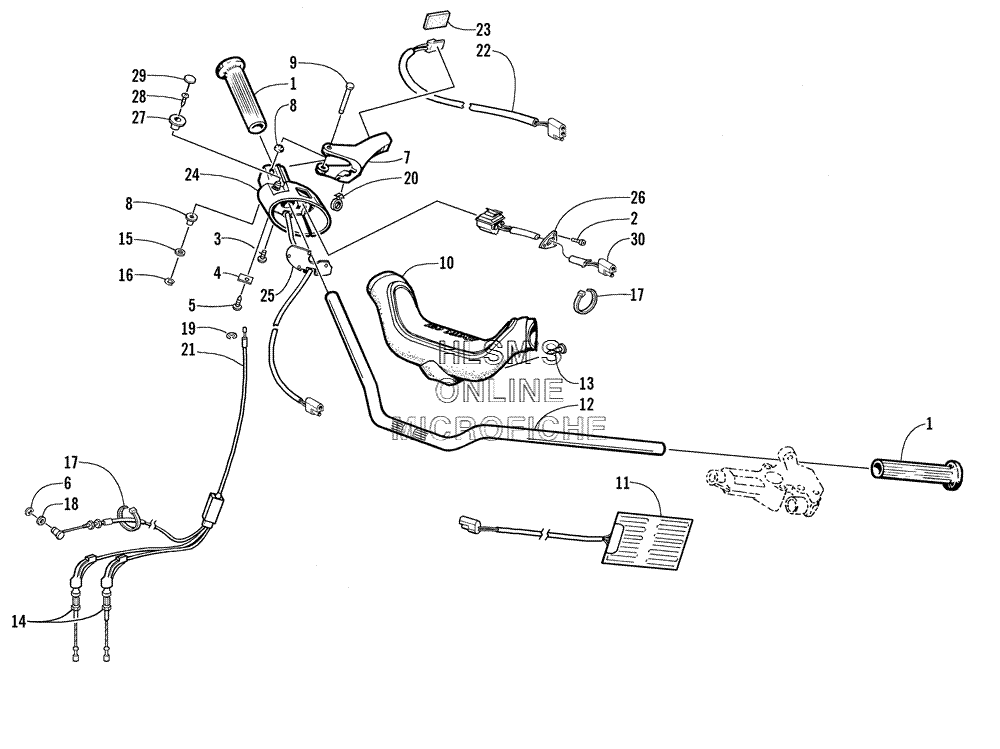

HANDLEBAR AND CONTROLS для Arctic Cat Pantera 550 - 2000 года выпуска`
-
№АртикулНазвание
-
10117-793 GRIP, HANDLEBARGRIP, HANDLEBAR
-
20609-312 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
30609-085 SCREW, MACHINESCREW, MACHINE
-
40609-319 CLAMP, HARNESS - SINGLECLAMP, HARNESS - SINGLE
-
50609-321 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
60124-057 E-RINGE-RING
-
70609-324 LEVER, THROTTLELEVER, THROTTLE
-
80609-038 SEAL, THROTTLESEAL, THROTTLE
-
90609-317 AXLE, LEVER - THROTTLEAXLE, LEVER - THROTTLE
-
100616-995 PAD, HANDLEBARPAD, HANDLEBAR
-
110609-375 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
120605-308 HANDLEBARHANDLEBAR
-
130623-128 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
140623-464 NUT, LOCK - THROTTLE CABLENUT, LOCK - THROTTLE CABLE
-
150609-036 WASHERWASHER
-
160609-040 RING, RETAININGRING, RETAINING
-
170123-788 TIE, CABLE - 7 IN.TIE, CABLE - 7 IN.
-
180124-056 WASHERWASHER
-
190123-231 RING, RETAININGRING, RETAINING
-
200623-262 CLIP, WIRECLIP, WIRE
-
210687-060 CABLE, THROTTLECABLE, THROTTLE
-
220609-373 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
230617-248 PAD, INSULATORPAD, INSULATOR
-
240609-390 CONTROL, THROTTLE (INC. 2-5 AND 25-30)CONTROL, THROTTLE (INC. 2-5 AND 25-30)
-
250609-316 . COVER, THROTTLE SWITCH. COVER, THROTTLE SWITCH
-
260609-378 . PLATE, COVER. PLATE, COVER
-
270609-282 . KNOB, EMERGENCY STOP. KNOB, EMERGENCY STOP
-
280623-215 . SCREW, SELF-TAPPING. SCREW, SELF-TAPPING
-
290609-283 . DECAL, MARK PLATE. DECAL, MARK PLATE
-
300609-382 . CONTROL, THUMBWARMER. CONTROL, THUMBWARMER
