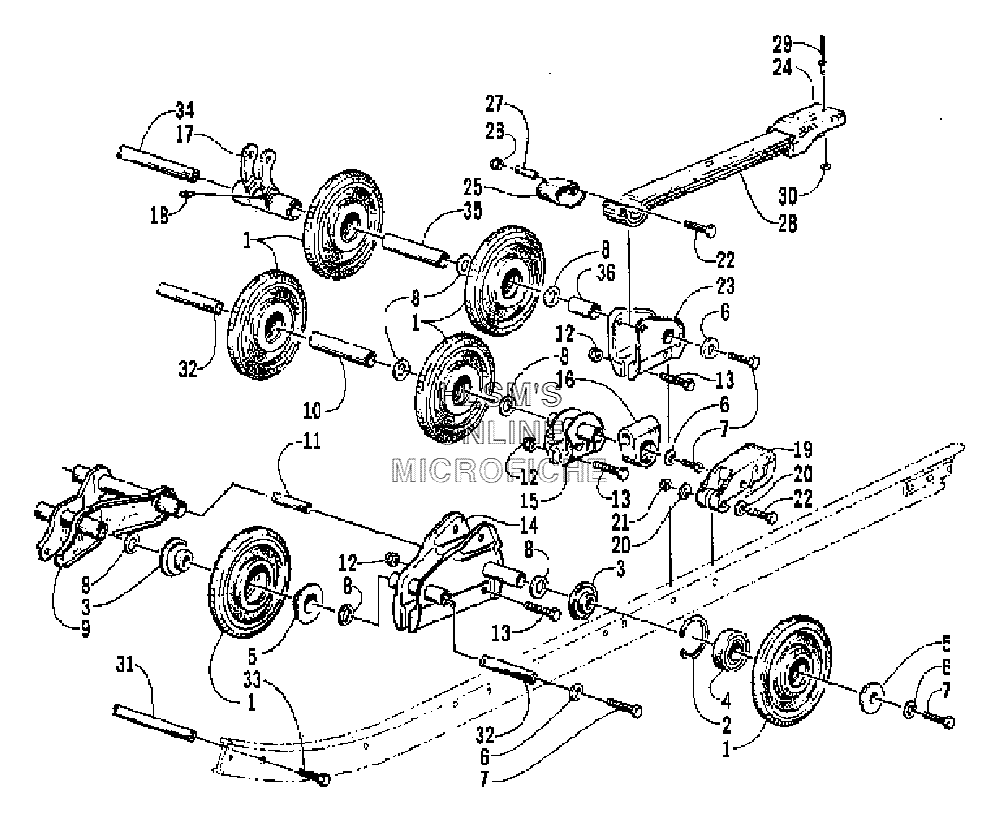

REAR SUSPENSION AXLE ASSEMBLY для Arctic Cat Bearcat Wide Track (International) - 2000 года выпуска
-
№АртикулНазвание
-
10114-240 WHEEL, IDLER (INC. 2, 5)WHEEL, IDLER (INC. 2, 5)
-
20123-798 RING, RETAININGRING, RETAINING
-
30104-340 INSERT, WHEEL (INSIDE)INSERT, WHEEL (INSIDE)
-
40107-598 BEARINGBEARING
-
50104-341 INSERT, WHEEL (OUTSIDE)INSERT, WHEEL (OUTSIDE)
-
60123-260 WASHERWASHER
-
78012-132 SCREW, CAPSCREW, CAP
-
80123-439 WASHERWASHER
-
90704-278 BRACKET SHOCK (FRONT)BRACKET SHOCK (FRONT)
-
100604-942 SPACER, IDLER WHEELSPACER, IDLER WHEEL
-
110604-979 AXLE, IDLER WHEELAXLE, IDLER WHEEL
-
128040-426 NUT, LOCKNUT, LOCK
-
138002-131 SCREW, CAPSCREW, CAP
-
140704-276 BRACKET, MOUNTING (RIGHT)BRACKET, MOUNTING (RIGHT)
-
140704-277 BRACKET, MOUNTING (LEFT)BRACKET, MOUNTING (LEFT)
-
150704-279 BRACKET, AUXILIARY WHEELBRACKET, AUXILIARY WHEEL
-
160604-403 SLIDE, SPRINGSLIDE, SPRING
-
170704-374 PIVOT, SHOCK (INC. 18)PIVOT, SHOCK (INC. 18)
-
189916-963 FITTING, GREASEFITTING, GREASE
-
190604-612 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
208050-277 WASHERWASHER
-
218040-486 NUT, LOCKNUT, LOCK
-
228002-227 SCREW, CAPSCREW, CAP
-
230704-280 BRACKET, MOUNTING, AUXILIARY WHEEL (RIGHT)BRACKET, MOUNTING, AUXILIARY WHEEL (RIGHT)
-
230704-281 BRACKET, MOUNTING, AUXILIARY WHEEL (LEFT)BRACKET, MOUNTING, AUXILIARY WHEEL (LEFT)
-
240604-859 BLOCK, WEARBLOCK, WEAR
-
250604-860 CLIP, RETAININGCLIP, RETAINING
-
268041-486 NUT, LOCKNUT, LOCK
-
270604-739 BUSHING, OVERLOAD SPRINGBUSHING, OVERLOAD SPRING
-
281604-450 SPO-RINGVERLOAD, ASSEMBLY (INC. 24 AND 29, 30)SPO-RINGVERLOAD, ASSEMBLY (INC. 24 AND 29, 30)
-
298060-411 RIVETRIVET
-
300123-149 WASHERWASHER
-
310604-938 SUPPORT, RAILSUPPORT, RAIL
-
320604-949 AXLE SHOCK (FRONT)AXLE SHOCK (FRONT)
-
338012-132 SCREW, CAPSCREW, CAP
-
340604-951 AXLE, AUXILIARY WHEEL (INNER)AXLE, AUXILIARY WHEEL (INNER)
-
350603-105 SPACER, AUXILIARY WHEELSPACER, AUXILIARY WHEEL
-
360604-945 SPACER, AUXILIARY WHEEL (INSIDE)SPACER, AUXILIARY WHEEL (INSIDE)
