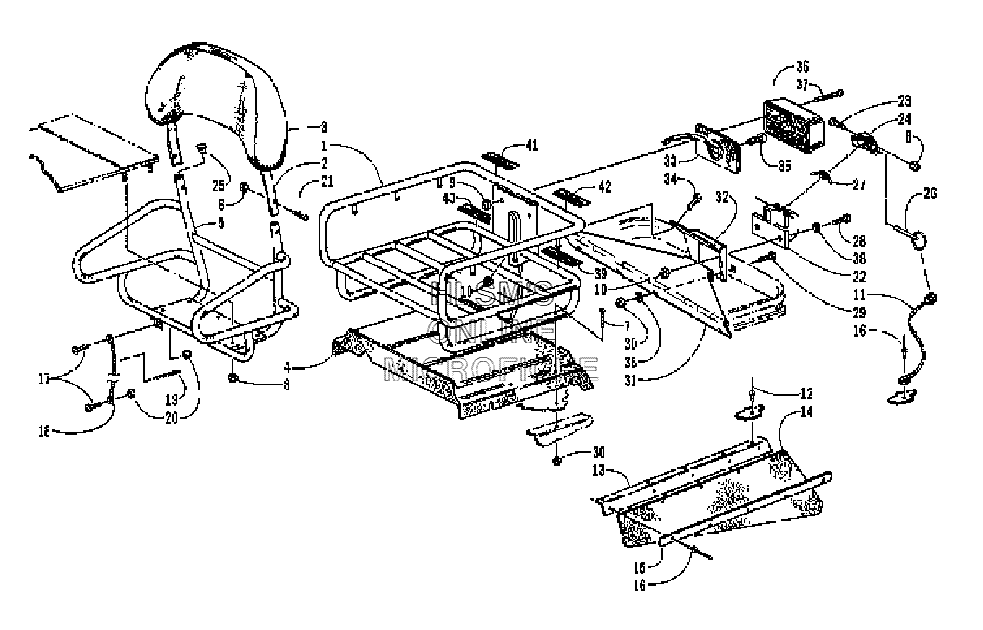

RACK- BACKREST- AND HITCH ASSEMBLIES для Arctic Cat Bearcat Wide Track (International) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0716-627 RACK
    RACK
  • 2
    0716-680 BACKREST (INC. 3)
    BACKREST (INC. 3)
  • 3
    0716-679 COVER, BACKREST
    COVER, BACKREST
  • 4
    0616-848 COVER, TUNNEL EXTENSION (REAR)
    COVER, TUNNEL EXTENSION (REAR)
  • 5
    0716-296 BACKREST, MOUNTING
    BACKREST, MOUNTING
  • 6
    0123-108 NUT, CAP
    NUT, CAP
  • 7
    0623-060 SCREW, CAP, OVAL HEAD
    SCREW, CAP, OVAL HEAD
  • 8
    8040-366 NUT
    NUT
  • 9
    0123-709 NUT, LOCK
    NUT, LOCK
  • 10
    8040-426 NUT, LOCK
    NUT, LOCK
  • 11
    1606-075 CABLE, SUPPORT, HANDGRIP
    CABLE, SUPPORT, HANDGRIP
  • 12
    8060-504 RIVET
    RIVET
  • 13
    0616-659 RETAINER (SIDE)
    RETAINER (SIDE)
  • 14
    0616-660 SNOWFLAP (SIDE)
    SNOWFLAP (SIDE)
  • 15
    0616-709 STRAP (SIDE)
    STRAP (SIDE)
  • 16
    8060-428 RIVET
    RIVET
  • 17
    0623-413 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    0115-595 CABLE
    CABLE
  • 19
    0623-199 SPRING, EXTENSION
    SPRING, EXTENSION
  • 20
    0123-430 NUT, LOCK
    NUT, LOCK
  • 21
    8017-584 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    0706-727 HITCH ASSEMBLY (INC. 23, 24 AND 26, 27)
    HITCH ASSEMBLY (INC. 23, 24 AND 26, 27)
  • 23
    8002-046 SCREW, CAP
    SCREW, CAP
  • 24
    0606-997 LATCH, HITCH
    LATCH, HITCH
  • 25
    0606-487 CLOSURE, TUBE
    CLOSURE, TUBE
  • 26
    0623-213 PIN, HITCH
    PIN, HITCH
  • 27
    0623-335 SPRING, HITCH LATCH
    SPRING, HITCH LATCH
  • 28
    8002-132 SCREW, CAP
    SCREW, CAP
  • 29
    8011-040 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 30
    8041-366 NUT, LOCK
    NUT, LOCK
  • 31
    1606-646 BRACKET, HITCH SUPPORT
    BRACKET, HITCH SUPPORT
  • 32
    0716-818 BRACKET, MOUNTING, HITCH
    BRACKET, MOUNTING, HITCH
  • 33
    0609-230 HOUSING, TAILLIGHT
    HOUSING, TAILLIGHT
  • 34
    8002-130 SCREW, CAP
    SCREW, CAP
  • 35
    0109-460 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 36
    0609-229 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 37
    0623-303 SCREW, CAP, PAN HEAD
    SCREW, CAP, PAN HEAD
  • 38
    8050-252 WASHER
    WASHER
  • 39
    1611-567 DECAL, WARNING, TOWING (FRENCH)
    DECAL, WARNING, TOWING (FRENCH)
  • 40
    1611-566 DECAL, WARNING, TOWING (ENGLISH)
    DECAL, WARNING, TOWING (ENGLISH)
  • 41
    1611-568 DECAL, WARNING, MAX PAYLOAD (ENGLISH)
    DECAL, WARNING, MAX PAYLOAD (ENGLISH)
  • 42
    1611-569 DECAL, WARNING, MAX PAYLOAD (FRENCH)
    DECAL, WARNING, MAX PAYLOAD (FRENCH)
