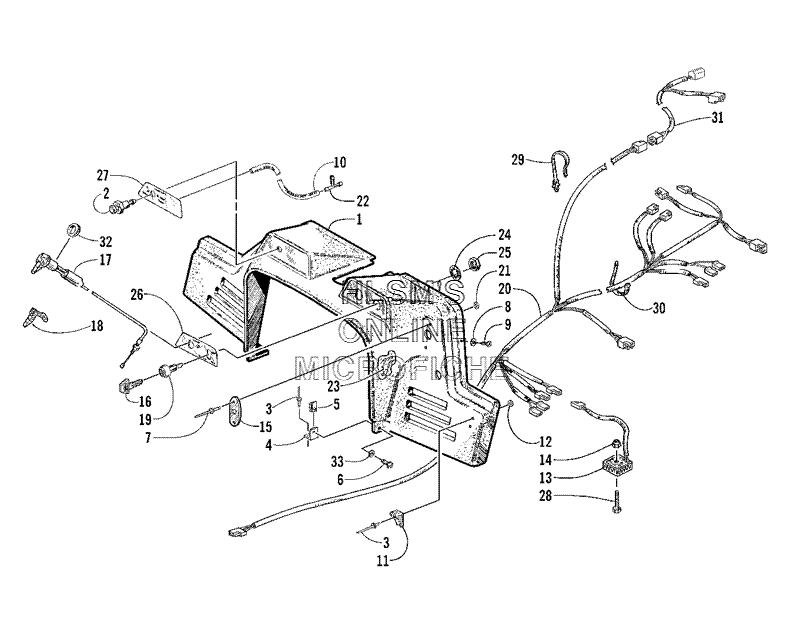

CONSOLE- SWITCHES- AND WIRING ASSEMBLIES для Arctic Cat Bearcat 440 I - 2000 года выпуска`
-
№АртикулНазвание
-
11606-258 CONSOLECONSOLE
-
20670-006 PRIMERPRIMER
-
38060-484 RIVETRIVET
-
40106-956 BRACKET, MOUNTING - CONSOLEBRACKET, MOUNTING - CONSOLE
-
50123-539 NUT, SPEEDNUT, SPEED
-
68017-580 SCREW, MACHINESCREW, MACHINE
-
78060-708 RIVETRIVET
-
88050-157 WASHERWASHER
-
90623-378 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
100610-012 HOSE, PRIMER - 25 FTHOSE, PRIMER - 25 FT
-
110115-307 LATCH CUPLATCH CUP
-
120123-149 WASHERWASHER
-
130630-001 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
148041-366 NUT, LOCKNUT, LOCK
-
150606-211 PLATE, RECOILPLATE, RECOIL
-
160609-412 KEYKEY
-
170687-006 CABLE, CHOKE (INC. 18 AND 32)CABLE, CHOKE (INC. 18 AND 32)
-
180636-062 . CHOKE LEVER KIT. CHOKE LEVER KIT
-
190609-256 SWITCH, IGNITION - MANUALSWITCH, IGNITION - MANUAL
-
200686-582 HARNESS, MAINHARNESS, MAIN
-
210123-802 WASHERWASHER
-
220670-026 T-FITTING, GASLINET-FITTING, GASLINE
-
230617-204 FOAM, CONSOLE - RIGHTFOAM, CONSOLE - RIGHT
-
230617-205 FOAM, CONSOLE - LEFTFOAM, CONSOLE - LEFT
-
240123-899 WASHER, IGNITIONWASHER, IGNITION
-
250123-900 NUT, IGNITIONNUT, IGNITION
-
263611-274 DECAL, CONSOLE SWITCH - RIGHTDECAL, CONSOLE SWITCH - RIGHT
-
273611-271 DECAL, CONSOLE SWITCH - LEFTDECAL, CONSOLE SWITCH - LEFT
-
288002-044 SCREW, CAPSCREW, CAP
-
290423-075 TIE, CABLE - PUSH MOUNTTIE, CABLE - PUSH MOUNT
-
300123-788 TIE, CABLETIE, CABLE
-
310686-436 HARNESS, HEADLIGHTHARNESS, HEADLIGHT
-
320623-054 NUT, CHOKENUT, CHOKE
-
338050-222 WASHERWASHER
