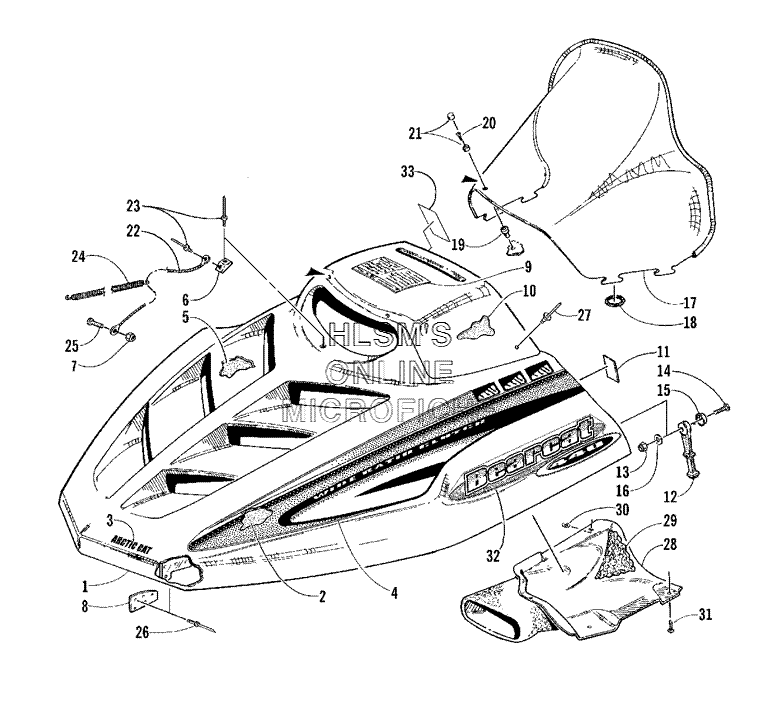

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Bearcat 440 I - 2000 года выпуска`
-
№АртикулНазвание
-
10718-780 HOOD W/DECALSHOOD W/DECALS
-
10718-192 HOOD W/O DECALSHOOD W/O DECALS
-
20717-058 FOAM - RIGHTFOAM - RIGHT
-
20717-075 FOAM - LEFTFOAM - LEFT
-
32611-556 DECAL, ''ARCTIC CAT''DECAL, ''ARCTIC CAT''
-
43611-472 DECAL, HOOD - RIGHTDECAL, HOOD - RIGHT
-
43611-475 DECAL, HOOD - LEFTDECAL, HOOD - LEFT
-
50717-060 FOAM, HOOD CENTER - RIGHTFOAM, HOOD CENTER - RIGHT
-
50717-061 FOAM, HOOD CENTER - LEFTFOAM, HOOD CENTER - LEFT
-
61606-088 BRACKET, HOOD CABLEBRACKET, HOOD CABLE
-
70123-430 NUT, LOCKNUT, LOCK
-
80616-438 BRACKET, HOOD-HINGEBRACKET, HOOD-HINGE
-
91611-575 DECAL, WARNINGDECAL, WARNING
-
100717-062 FOAM, HOOD UPPER - RIGHTFOAM, HOOD UPPER - RIGHT
-
112611-158 DECAL, CAUTION - ENGINE/BATTERYDECAL, CAUTION - ENGINE/BATTERY
-
120115-306 STRAP, LATCHSTRAP, LATCH
-
138040-366 NUT, LOCKNUT, LOCK
-
148019-614 SCREW, MACHINESCREW, MACHINE
-
150623-261 WASHER, CUPWASHER, CUP
-
168050-217 WASHERWASHER
-
180616-032 O-RINGO-RING
-
190123-010 NUT, EXPANSIONNUT, EXPANSION
-
200623-121 SCREW, MACHINESCREW, MACHINE
-
210124-054 SNAP, CAP W/WASHERSNAP, CAP W/WASHER
-
220606-121 CABLE, HOODCABLE, HOOD
-
238061-708 RIVETRIVET
-
240123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
250623-413 SCREW, MACHINESCREW, MACHINE
-
268061-706 RIVETRIVET
-
278060-430 RIVETRIVET
-
280616-767 DUCT, AIR-OUTDUCT, AIR-OUT
-
290617-212 FOAM, DUCT - RIGHTFOAM, DUCT - RIGHT
-
290617-213 FOAM, DUCT - LEFTFOAM, DUCT - LEFT
-
300123-149 WASHERWASHER
-
310623-789 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
323611-476 DECAL, HOOD - ''BEARCAT'' - RIGHTDECAL, HOOD - ''BEARCAT'' - RIGHT
-
323611-477 DECAL, HOOD - ''BEARCAT'' - LEFTDECAL, HOOD - ''BEARCAT'' - LEFT
-
332611-309 DECAL, CAUTION - REVERSEDECAL, CAUTION - REVERSE
