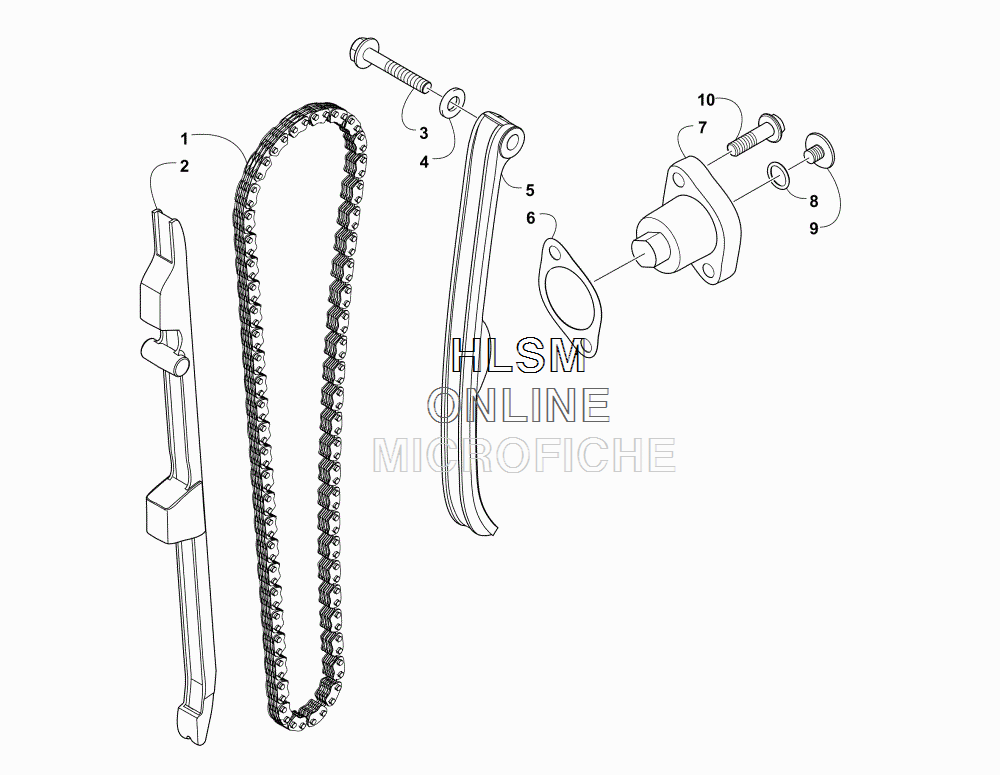

CAM CHAIN ASSEMBLY для Arctic Cat XC 450 EFI GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
10810-005 CHAIN, CAMCHAIN, CAM
-
20810-068 GUIDE, CHAINGUIDE, CHAIN
-
30826-133 PIVOT, TENSIONERPIVOT, TENSIONER
-
40830-150 WASHERWASHER
-
50810-007 TENSIONER, CHAINTENSIONER, CHAIN
-
63303-035 GASKETGASKET
-
73307-102 ADJUSTER, TENSIONER - ASSEMBLYADJUSTER, TENSIONER - ASSEMBLY
-
83304-100 O-RINGO-RING
-
93307-125 SCREW, ADJUSTERSCREW, ADJUSTER
-
103304-569 BOLT FLANGE 6X25BOLT FLANGE 6X25
