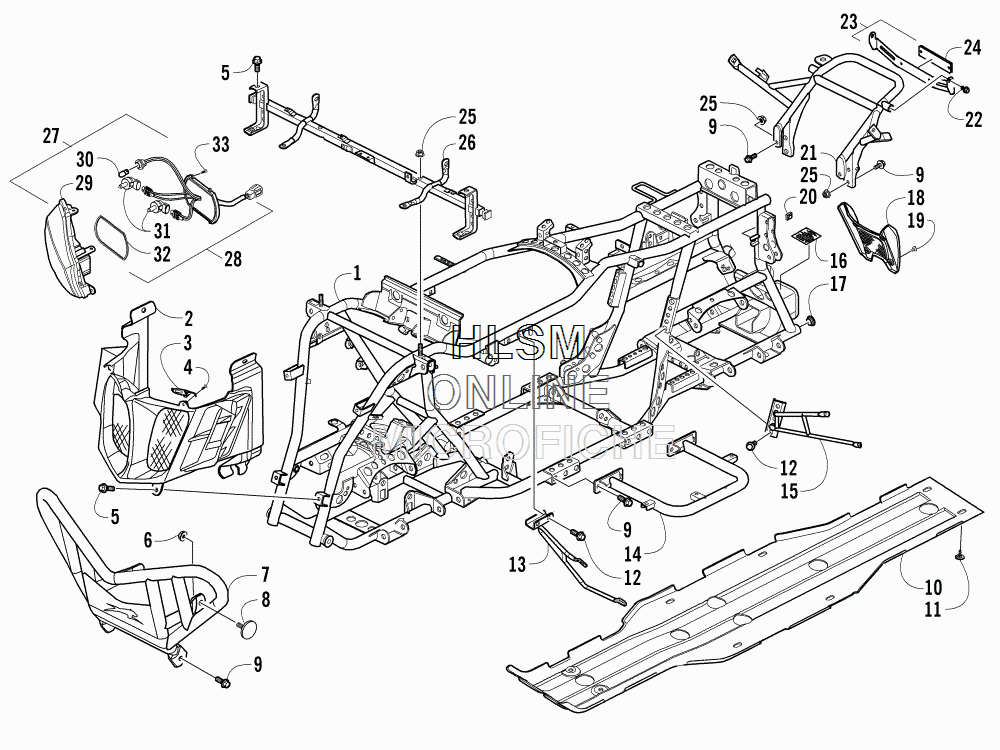

BUMPER- FRAME- AND HEADLIGHT ASSEMBLIES для Arctic Cat XC 450 EFI GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
13306-521 FRAME, MAINFRAME, MAIN
-
23306-453 FASCIA, LOWER FRONTFASCIA, LOWER FRONT
-
33306-541 BRACKET, SUPPORT - FRONT FASCIABRACKET, SUPPORT - FRONT FASCIA
-
43304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
53304-587 BOLT WASHER 6X16BOLT WASHER 6X16
-
63304-654 NUT, LOCKNUT, LOCK
-
73306-531 BUMPER, FRONTBUMPER, FRONT
-
83305-272 REFLECTOR - AMBERREFLECTOR - AMBER
-
93304-543 BOLT FLANGE 8X16BOLT FLANGE 8X16
-
103313-755 PLATE, SKIDPLATE, SKID
-
110423-545 SCREW, SHOULDERSCREW, SHOULDER
-
123304-544 BOLT FLANGE 8X12BOLT FLANGE 8X12
-
133306-524 BRACKET, FENDER SUPPORT - FRONT RIGHTBRACKET, FENDER SUPPORT - FRONT RIGHT
-
133306-525 BRACKET, FENDER SUPPORT - FRONT LEFTBRACKET, FENDER SUPPORT - FRONT LEFT
-
143306-522 FOOTREST - RIGHTFOOTREST - RIGHT
-
143306-523 FOOTREST - LEFTFOOTREST - LEFT
-
153306-526 BRACKET, FENDER SUPPORT - REAR RIGHTBRACKET, FENDER SUPPORT - REAR RIGHT
-
153306-527 BRACKET, FENDER SUPPORT - REAR LEFTBRACKET, FENDER SUPPORT - REAR LEFT
-
161411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
-
173306-530 PLUGPLUG
-
183306-489 FASCIA, REARFASCIA, REAR
-
193304-404 BOLT SPECIAL 6X16BOLT SPECIAL 6X16
-
203306-329 CUSHIONCUSHION
-
213306-529 BRACKET, FENDER SUPPORT - REARBRACKET, FENDER SUPPORT - REAR
-
223304-553 BOLT, FLANGE - 6 X 12BOLT, FLANGE - 6 X 12
-
235506-374 BRACKET, ASSEMBLY - REAR (INC. 24)BRACKET, ASSEMBLY - REAR (INC. 24)
-
240606-029 ...REFLECTOR - RED...REFLECTOR - RED
-
253304-668 NUT, LOCKNUT, LOCK
-
263306-597 MOUNT, HEADLIGHT TUBEMOUNT, HEADLIGHT TUBE
-
273306-442 HEADLIGHT ASSEMBLY - RIGHT (INC. 28-33)HEADLIGHT ASSEMBLY - RIGHT (INC. 28-33)
-
273306-443 HEADLIGHT ASSEMBLY - LEFT (INC. 28-33)HEADLIGHT ASSEMBLY - LEFT (INC. 28-33)
-
283306-446 ...HARNESS, HEADLIGHT - ASSEMBLY...HARNESS, HEADLIGHT - ASSEMBLY
-
293306-444 ...LENS ASSEMBLY - RIGHT...LENS ASSEMBLY - RIGHT
-
303306-445 ...LENS ASSEMBLY - LEFT...LENS ASSEMBLY - LEFT
-
303313-508 ...BULB...BULB
-
313306-447 ...BULB, HEADLIGHT...BULB, HEADLIGHT
