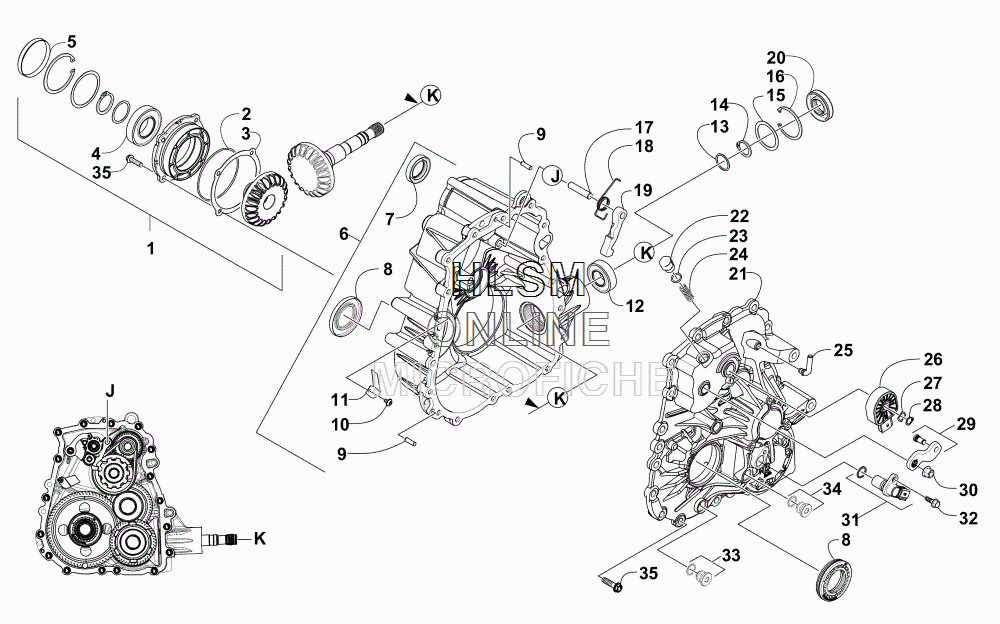

TRANSAXLE CASE/COVER для Arctic Cat WILDCAT TRAIL SE EPS BLACK - 2017 года выпуска`
-
№АртикулНазвание
-
10817-068 PINION, REAR - ASSEMBLY (INC. 2-5)PINION, REAR - ASSEMBLY (INC. 2-5)
-
20817-081 ...O-RING...O-RING
-
30817-025 ...KIT, SHIM...KIT, SHIM
-
40817-078 ...BEARING...BEARING
-
50817-080 ...PLUG...PLUG
-
60817-069 CASE - ASSEMBLY (INC. 7-17)CASE - ASSEMBLY (INC. 7-17)
-
70817-079 ...SEAL...SEAL
-
80817-076 ...SEAL...SEAL
-
90817-077 ...PIN, DOWEL...PIN, DOWEL
-
100817-004 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
110817-070 ...DEFLECTOR, OIL...DEFLECTOR, OIL
-
120817-028 ...BEARING...BEARING
-
130817-024 ...KIT, SHIM...KIT, SHIM
-
140817-015 ...RING, RETAINING...RING, RETAINING
-
150817-023 ...KIT, SHIM...KIT, SHIM
-
160817-012 ...RING, RETAINING...RING, RETAINING
-
170817-011 ...PIN, DOWEL...PIN, DOWEL
-
180817-086 SPRINGSPRING
-
190817-087 PAWL, PARKPAWL, PARK
-
200817-072 SEALSEAL
-
210817-040 COVERCOVER
-
220817-065 PLUGPLUG
-
230817-075 O-RINGO-RING
-
240817-036 SPRINGSPRING
-
250817-051 FITTING, ELBOWFITTING, ELBOW
-
260409-202 SWITCH, GEARSWITCH, GEAR
-
270817-037 SPRINGSPRING
-
280817-019 RING, RETAININGRING, RETAINING
-
290817-067 KIT, BELL CRANKKIT, BELL CRANK
-
300817-007 NUT, LOCKNUT, LOCK
-
310430-121 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
320817-006 SCREW, SPEEDSCREW, SPEED
-
330817-003 PLUGPLUG
-
340817-002 PLUGPLUG
-
350817-005 SCREW, HEX (SELF-TAPPING SCREW)SCREW, HEX (SELF-TAPPING SCREW)
