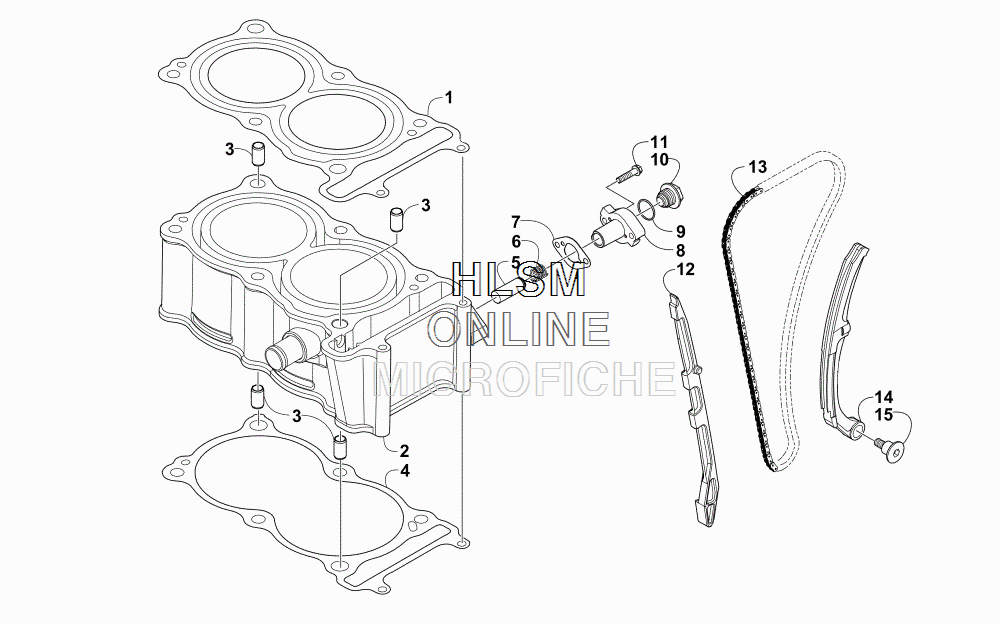

CYLINDER AND TIMING CHAIN ASSEMBLY для Arctic Cat WILDCAT TRAIL SE EPS BLACK - 2017 года выпуска
-
№АртикулНазвание
-
13306-929 GASKET, HEADGASKET, HEAD
-
23306-990 CYLINDERCYLINDER
-
30829-046 PIN, DOWELPIN, DOWEL
-
43306-991 GASKET, BASEGASKET, BASE
-
53307-004 TENSIONER, CHAINTENSIONER, CHAIN
-
63307-001 SPRING, OIL TENSIONSERSPRING, OIL TENSIONSER
-
73306-999 GASKETGASKET
-
83307-002 ADJUSTER, TENSIONERADJUSTER, TENSIONER
-
93307-007 WASHERWASHER
-
103307-006 BOLT, STUDBOLT, STUD
-
113303-385 BOLT FLANGE SH 6X28BOLT FLANGE SH 6X28
-
123307-005 GUIDE, CHAINGUIDE, CHAIN
-
133306-997 CHAIN, CAMCHAIN, CAM
-
143306-998 TENSIONER, CHAINTENSIONER, CHAIN
-
153307-003 BOLT, STUDBOLT, STUD
