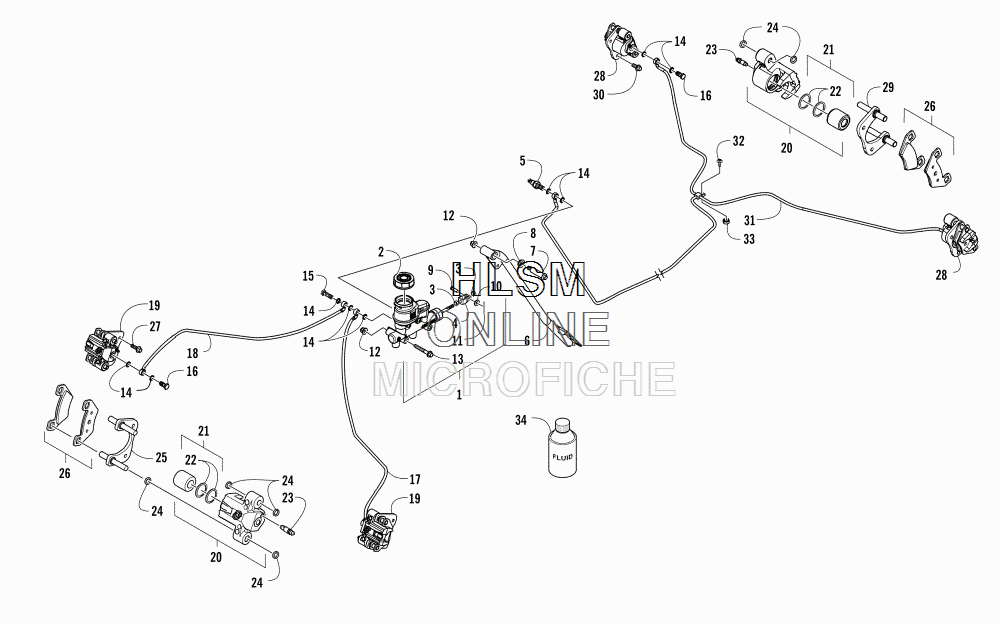

FRONT AND REAR BRAKE ASSEMBLY для Arctic Cat PROWLER 700 XT RED - 2017 года выпуска`
-
№АртикулНазвание
-
12502-043 CYLINDER, MASTER BRAKE - ASSEMBLY (INC. 2-4)CYLINDER, MASTER BRAKE - ASSEMBLY (INC. 2-4)
-
22502-044 ...CAP, RESERVOIR...CAP, RESERVOIR
-
30402-592 ...NUT...NUT
-
41402-520 ...CLEVIS...CLEVIS
-
53313-239 SWITCH, BRAKE PRESSURESWITCH, BRAKE PRESSURE
-
62502-215 PEDAL, BRAKEPEDAL, BRAKE
-
70423-505 SCREW, SHOULDERSCREW, SHOULDER
-
82402-213 BUSHINGBUSHING
-
91402-377 PIN, CLEVISPIN, CLEVIS
-
108050-217 WASHERWASHER
-
110117-868 PIN, COTTERPIN, COTTER
-
128427-802 NUTNUT
-
138408-855 SCREW, CAPSCREW, CAP
-
140423-178 WASHER, CRUSHWASHER, CRUSH
-
150423-610 BOLT, DOUBLE BANJO - FITTINGBOLT, DOUBLE BANJO - FITTING
-
160423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
171402-389 HOSE, BRAKE - FRONT - LEFTHOSE, BRAKE - FRONT - LEFT
-
181402-290 HOSE, BRAKE - FRONT - RIGHTHOSE, BRAKE - FRONT - RIGHT
-
191502-730 CALIPER, BRAKE (FRONT RIGHT) (INC. 20-27)CALIPER, BRAKE (FRONT RIGHT) (INC. 20-27)
-
191502-731 CALIPER, BRAKE (FRONT LEFT) (INC. 20-27)CALIPER, BRAKE (FRONT LEFT) (INC. 20-27)
-
201436-160 ...HOUSING, CALIPER - ASSEMBLY (FRONT RIGHT AND REAR LEFT) (INC. 21-23)...HOUSING, CALIPER - ASSEMBLY (FRONT RIGHT AND REAR LEFT) (INC. 21-23)
-
201436-161 ...HOUSING, CALIPER - ASSEMBLY (FRONT LEFT AND REAR RIGHT) (INC. 21-23)...HOUSING, CALIPER - ASSEMBLY (FRONT LEFT AND REAR RIGHT) (INC. 21-23)
-
210502-606 ......PISTON/SEAL SET (INC. 22)......PISTON/SEAL SET (INC. 22)
-
220502-607 .........SEAL SET.........SEAL SET
-
230502-609 ......VALVE, BLEED......VALVE, BLEED
-
240502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
250502-960 ...BRACKET ASSEMBLY...BRACKET ASSEMBLY
-
261436-420 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
278408-826 SCREW, CAPSCREW, CAP
-
281436-422 CALIPER, BRAKE (REAR LEFT) (INC. 21-24 AND 29-31)CALIPER, BRAKE (REAR LEFT) (INC. 21-24 AND 29-31)
-
281436-423 CALIPER, BRAKE (REAR RIGHT) (INC. 21-24 AND 29-31)CALIPER, BRAKE (REAR RIGHT) (INC. 21-24 AND 29-31)
-
290502-605 ...BRACKET ASSEMBLY...BRACKET ASSEMBLY
-
308408-821 SCREW, CAPSCREW, CAP
-
311402-845 HOSE, BRAKEHOSE, BRAKE
-
328476-616 SCREW, MACHINESCREW, MACHINE
-
330623-038 NUT W/WASHERNUT W/WASHER
-
345639-848 FLUID, BRAKE - 12 OZFLUID, BRAKE - 12 OZ
