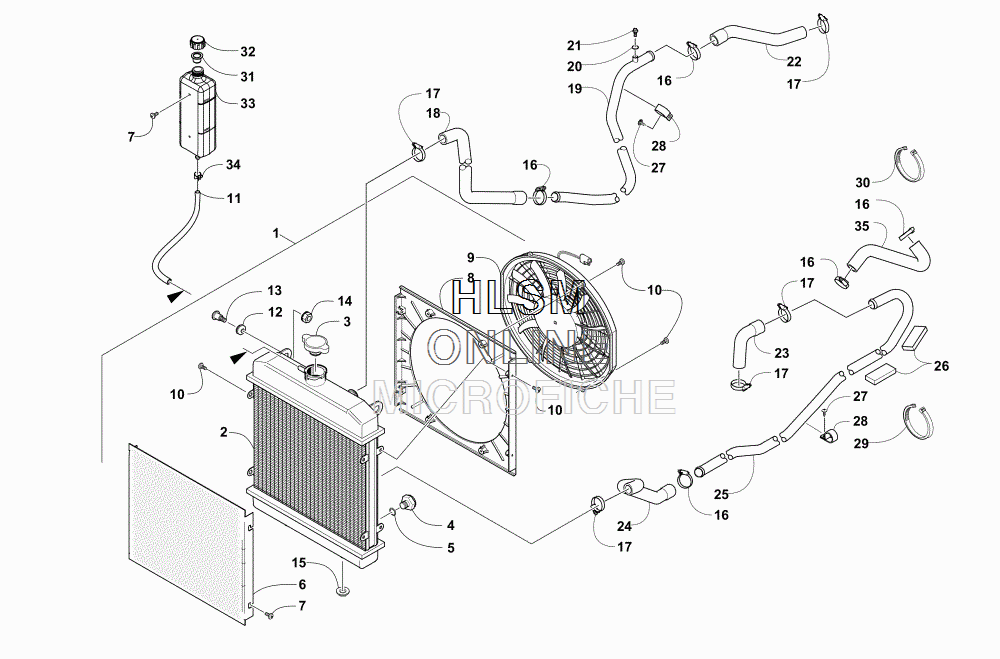

COOLING ASSEMBLY для Arctic Cat PROWLER 700 XT RED - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    0513-064 RADIATOR - ASSEMBLY (INC. 2-13)
    RADIATOR - ASSEMBLY (INC. 2-13)
  • 2
    0413-205 ...RADIATOR
    ...RADIATOR
  • 3
    0413-255 ...CAP, RADIATOR
    ...CAP, RADIATOR
  • 4
    0413-195 ...PLUG, DRAIN
    ...PLUG, DRAIN
  • 5
    1602-213 ...O-RING
    ...O-RING
  • 6
    0413-007 ...SCREEN, RADIATOR
    ...SCREEN, RADIATOR
  • 7
    8475-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 8
    0413-203 ...SHROUD, FAN
    ...SHROUD, FAN
  • 9
    0413-123 ...FAN, RADIATOR
    ...FAN, RADIATOR
  • 10
    0623-378 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 11
    0410-274 ...HOSE - 25 FT
    ...HOSE - 25 FT
  • 12
    0423-030 ...GROMMET
    ...GROMMET
  • 13
    0423-484 SCREW, SHOULDER
    SCREW, SHOULDER
  • 14
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 15
    0423-028 BUSHING, STEM
    BUSHING, STEM
  • 16
    0423-496 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    0423-490 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    0410-298 HOSE, COOLANT - UPPER RADIATOR
    HOSE, COOLANT - UPPER RADIATOR
  • 19
    0510-596 PIPE, COOLANT - UPPER
    PIPE, COOLANT - UPPER
  • 20
    0423-921 O-RING
    O-RING
  • 21
    0423-984 SCREW, BLEED
    SCREW, BLEED
  • 22
    0410-207 HOSE, COOLANT - UPPER ENGINE
    HOSE, COOLANT - UPPER ENGINE
  • 23
    0410-093 HOSE, COOLANT - LOWER ENGINE
    HOSE, COOLANT - LOWER ENGINE
  • 24
    0410-297 HOSE, COOLANT - LOWER RADIATOR
    HOSE, COOLANT - LOWER RADIATOR
  • 25
    0410-247 PIPE, COOLANT - LOWER
    PIPE, COOLANT - LOWER
  • 26
    0406-288 PAD, FOAM
    PAD, FOAM
  • 27
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 28
    0423-594 CLAMP, ROUTING
    CLAMP, ROUTING
  • 29
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 30
    0623-751 TIE, CABLE - REUSABLE
    TIE, CABLE - REUSABLE
  • 31
    0413-329 SPACER
    SPACER
  • 32
    0413-328 CAP
    CAP
  • 33
    0413-320 BOTTLE, OVERFLOW
    BOTTLE, OVERFLOW
  • 34
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 35
    0410-095 COOLANT HOSE, CROSSOVER
    COOLANT HOSE, CROSSOVER
