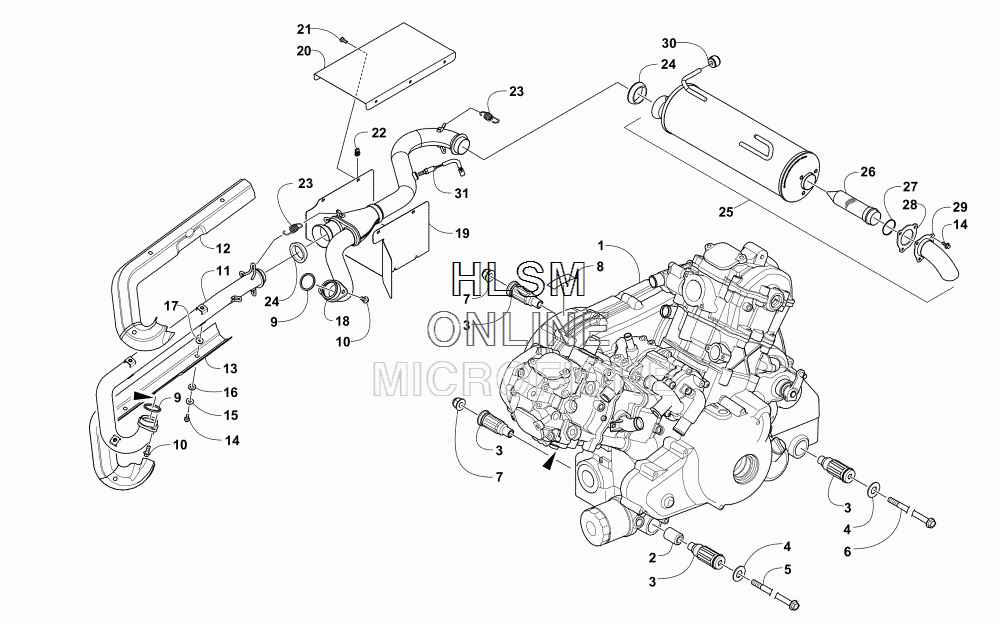

ENGINE AND EXHAUST для Arctic Cat PROWLER 1000 XT GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
10800-159 ENGINE, A950GH2 (INC. 2-3)ENGINE, A950GH2 (INC. 2-3)
-
20801-128 ...SPACER, ENGINE MOUNT...SPACER, ENGINE MOUNT
-
30801-091 ...MOUNT, ENGINE...MOUNT, ENGINE
-
40423-426 WASHERWASHER
-
50423-734 SCREW, CAPSCREW, CAP
-
60423-451 SCREW, CAPSCREW, CAP
-
78428-002 NUT, LOCKNUT, LOCK
-
80411-426 DECAL, WARNINGDECAL, WARNING
-
90412-338 GASKET, EXHAUSTGASKET, EXHAUST
-
108408-820 SCREW, CAPSCREW, CAP
-
110512-517 PIPE, EXHAUST - FRONTPIPE, EXHAUST - FRONT
-
120512-528 SHIELD, EXHAUST - UPPERSHIELD, EXHAUST - UPPER
-
130512-529 SHIELD, EXHAUST PIPE - LOWERSHIELD, EXHAUST PIPE - LOWER
-
148408-616 SCREW, CAPSCREW, CAP
-
158050-222 WASHERWASHER
-
160423-909 ISOLATORISOLATOR
-
170423-908 ISOLATORISOLATOR
-
180512-804 PIPE, EXHAUST - REARPIPE, EXHAUST - REAR
-
190412-543 SHIELD, EXHAUST PIPE - REARSHIELD, EXHAUST PIPE - REAR
-
200412-850 SHIELD, HEATSHIELD, HEAT
-
218476-616 SCREW, MACHINESCREW, MACHINE
-
220423-577 CLIP, U-NUTCLIP, U-NUT
-
230612-668 SPRINGSPRING
-
240412-375 SEAL, EXHAUSTSEAL, EXHAUST
-
250512-732 MUFFLER - ASSEMBLY (INC. 26-30 AND THREE NO. 14)MUFFLER - ASSEMBLY (INC. 26-30 AND THREE NO. 14)
-
260512-647 ...SPARK ARRESTER ASSEMBLY...SPARK ARRESTER ASSEMBLY
-
271423-246 ...WASHER, WAVE...WASHER, WAVE
-
280412-675 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
290512-770 ...TAIL PIPE...TAIL PIPE
-
300412-577 ...BUSHING...BUSHING
-
310630-302 SENSOR, OXYGENSENSOR, OXYGEN
