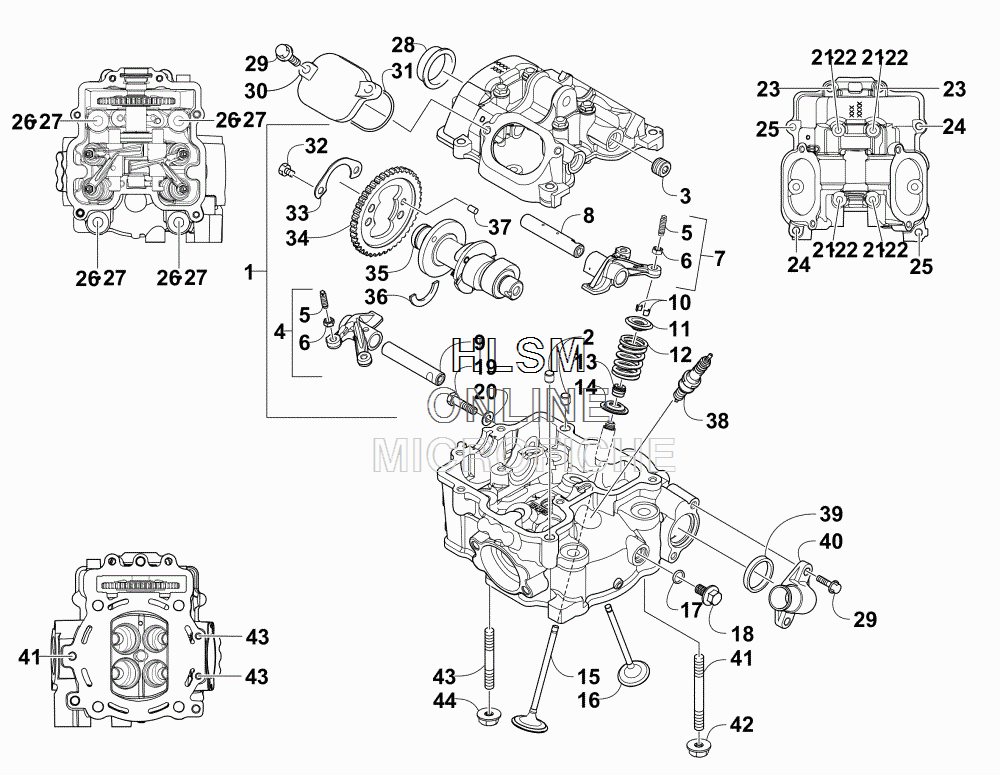

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY для Arctic Cat PROWLER 1000 XT GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
10808-227 CYLINDER HEAD - ASSEMBLY (INC. 2-21)CYLINDER HEAD - ASSEMBLY (INC. 2-21)
-
20829-062 ...PIN, DOWEL...PIN, DOWEL
-
30831-092 ...PLUG, SHAFT...PLUG, SHAFT
-
40809-319 ...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)
-
50809-240 ......SCREW, ADJUSTER......SCREW, ADJUSTER
-
60827-059 ......NUT......NUT
-
70809-318 ...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)
-
80809-241 ...SHAFT, ROCKER ARM - INTAKE...SHAFT, ROCKER ARM - INTAKE
-
90809-242 ...SHAFT, ROCKER ARM - EXHAUST...SHAFT, ROCKER ARM - EXHAUST
-
100809-233 ...COTTER, VALVE...COTTER, VALVE
-
110809-232 ...RETAINER, SPRING...RETAINER, SPRING
-
120809-231 ...SPRING, VALVE...SPRING, VALVE
-
130830-186 ...SEAL, OIL...SEAL, OIL
-
140809-230 ...SEAT, SPRING - VALVE...SEAT, SPRING - VALVE
-
150809-228 ...VALVE, INTAKE...VALVE, INTAKE
-
160809-229 ...VALVE, EXHAUST...VALVE, EXHAUST
-
170830-213 ...O-RING...O-RING
-
180826-157 ...SCREW, CAP...SCREW, CAP
-
198400-812 ...SCREW, CAP...SCREW, CAP
-
200830-025 ...WASHER, CRUSH...WASHER, CRUSH
-
210826-149 ...SCREW, CAP...SCREW, CAP
-
220830-155 GASKETGASKET
-
230826-002 SCREW, CAPSCREW, CAP
-
240826-005 SCREW, CAPSCREW, CAP
-
250826-006 SCREW, CAPSCREW, CAP
-
260808-090 BOLT, HEAD, M10X1.25 - 173BOLT, HEAD, M10X1.25 - 173
-
270830-147 WASHERWASHER
-
280808-077 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
290826-007 SCREW, CAPSCREW, CAP
-
300808-003 CAP, INSPECTIONCAP, INSPECTION
-
310830-004 O-RINGO-RING
-
320826-034 SCREW, CAPSCREW, CAP
-
330828-004 PLATE, RETAINERPLATE, RETAINER
-
340809-212 SPROCKETSPROCKET
-
350809-246 CAMSHAFT, V TWIN - FRONT CYLINDER - ASSEMBLYCAMSHAFT, V TWIN - FRONT CYLINDER - ASSEMBLY
-
350809-248 CAMSHAFT, V TWIN - REAR CYLINDER - ASSEMBLYCAMSHAFT, V TWIN - REAR CYLINDER - ASSEMBLY
-
360809-003 C-RINGC-RING
-
370829-049 PIN, DOWELPIN, DOWEL
-
380217-799 SPARK PLUG - CPR8ESPARK PLUG - CPR8E
-
390830-120 SEALSEAL
-
400808-008 COVER, THERMOSTATCOVER, THERMOSTAT
-
410827-069 BOLT, STUDBOLT, STUD
-
428424-804 NUTNUT
-
430827-068 BOLT, STUDBOLT, STUD
-
448424-604 NUTNUT
