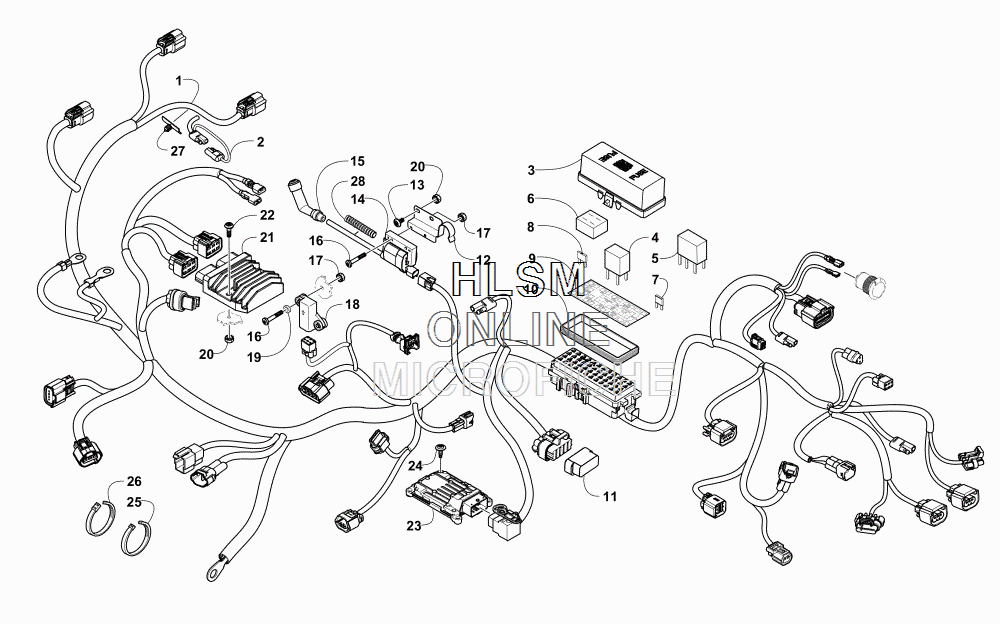

WIRING HARNESS ASSEMBLY для Arctic Cat ALTERRA 700 XT EPS CAMO - 2017 года выпуска`
-
№АртикулНазвание
-
10486-534 HARNESS, MAIN (INC. 2-11)HARNESS, MAIN (INC. 2-11)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-045 ...RELAY (4-PIN) 20 AMP...RELAY (4-PIN) 20 AMP
-
50430-033 ...RELAY (5-PIN) 30 AMP...RELAY (5-PIN) 30 AMP
-
60430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
70430-100 ...BREAKER, CIRCUIT 15 AMP...BREAKER, CIRCUIT 15 AMP
-
80430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
80430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
80430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
94411-131 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
100430-086 ...SEAL...SEAL
-
110430-103 ...COVER, DIAGNOSTICS CONNECTOR...COVER, DIAGNOSTICS CONNECTOR
-
120530-171 BRACKET, MOUNTING - COILBRACKET, MOUNTING - COIL
-
138476-612 SCREW, MACHINESCREW, MACHINE
-
140824-071 COIL, IGNITION - ASSEMBLY (INC. 15)COIL, IGNITION - ASSEMBLY (INC. 15)
-
150824-049 CAP, SPARK PLUGCAP, SPARK PLUG
-
168468-425 SCREW, MACHINESCREW, MACHINE
-
170423-493 NUT W/WASHERNUT W/WASHER
-
180409-064 SENSOR, TILTSENSOR, TILT
-
190123-802 WASHERWASHER
-
200623-038 NUT W/WASHERNUT W/WASHER
-
210824-078 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
228476-625 SCREW, CAPSCREW, CAP
-
230530-186 ECMECM
-
241423-198 SCREW, MACHINESCREW, MACHINE
-
250123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
250123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
261423-270 TIE, CABLE - DOUBLE LOOP - 11 IN.TIE, CABLE - DOUBLE LOOP - 11 IN.
-
270430-102 CLIP, ROUTINGCLIP, ROUTING
-
280716-558 CONDUIT, PROTECTIVE - 10 FTCONDUIT, PROTECTIVE - 10 FT
