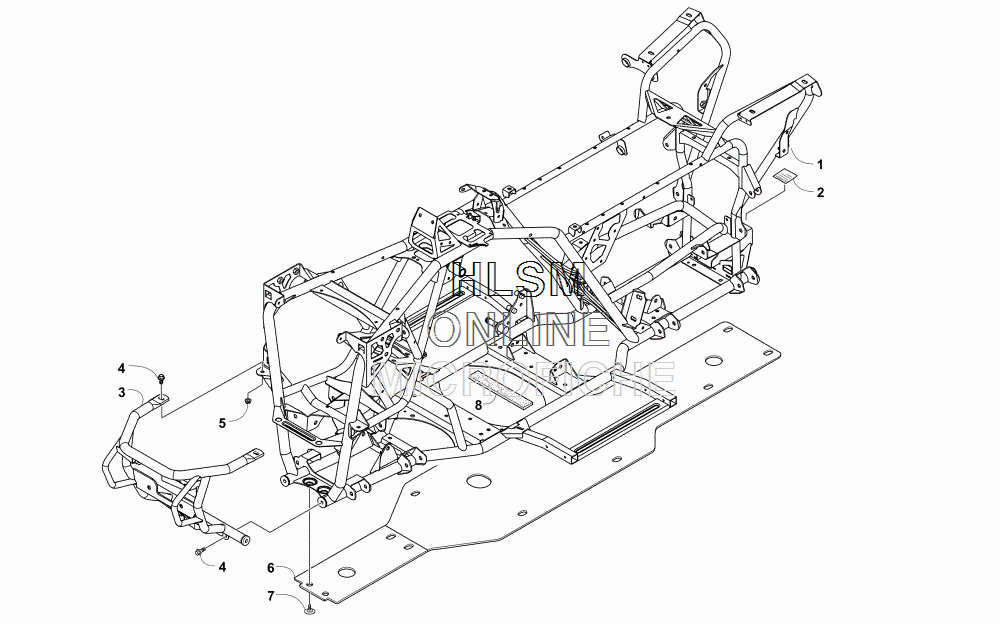

FRAME AND RELATED PARTS для Arctic Cat ALTERRA 700 XT EPS CAMO - 2017 года выпуска
-
№АртикулНазвание
-
17506-803 FRAME, MAINFRAME, MAIN
-
24411-550 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
-
24411-551 DECAL, WARNING - TOWING - FRENCHDECAL, WARNING - TOWING - FRENCH
-
35506-625 BUMPER, FRONT - BLACKBUMPER, FRONT - BLACK
-
48409-020 SCREW, CAPSCREW, CAP
-
58424-802 NUT, LOCKNUT, LOCK
-
64406-582 PANEL, BELLYPANEL, BELLY
-
71423-109 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
80406-289 PAD, FRAMEPAD, FRAME
