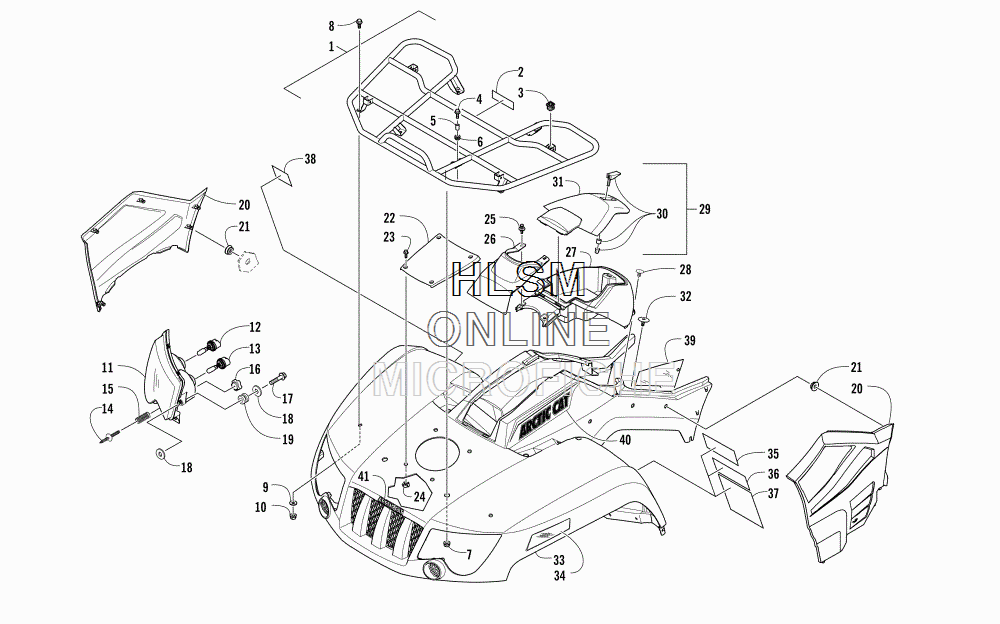

FRONT RACK- BODY PANEL- AND HEADLIGHT ASSEMBLIES для Arctic Cat 500 RED - 2017 года выпуска`
-
№АртикулНазвание
-
12506-107 RACK, FRONT - ASSEMBLY (INC. 2-3)RACK, FRONT - ASSEMBLY (INC. 2-3)
-
20411-576 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING...BUSHING
-
48410-835 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, HEXNUT, HEX
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
108427-602 NUT, LOCKNUT, LOCK
-
110609-852 HEADLIGHT ASSEMBLY - RIGHT (INC. 12-13)HEADLIGHT ASSEMBLY - RIGHT (INC. 12-13)
-
110609-853 HEADLIGHT ASSEMBLY - LEFT-HAND (INC. 12-13)HEADLIGHT ASSEMBLY - LEFT-HAND (INC. 12-13)
-
120409-073 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
130409-045 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
140423-514 STUD, ADJUSTER - HEADLIGHTSTUD, ADJUSTER - HEADLIGHT
-
150423-522 SPRING, ADJUSTERSPRING, ADJUSTER
-
160423-513 KNOB, ADJUSTERKNOB, ADJUSTER
-
170623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
188050-217 WASHERWASHER
-
190423-447 GROMMETGROMMET
-
202406-302 PANEL, SIDE - LOWER - RIGHTPANEL, SIDE - LOWER - RIGHT
-
202416-133 PANEL, SIDE - LOWER - LEFTPANEL, SIDE - LOWER - LEFT
-
210423-678 GROMMETGROMMET
-
222416-134 COVER, ACCESS - REDCOVER, ACCESS - RED
-
238410-616 SCREW, CAPSCREW, CAP
-
240423-997 T-NUTT-NUT
-
250623-362 CLIP, RETAININGCLIP, RETAINING
-
261406-972 COVER, STEERING POST - BLACKCOVER, STEERING POST - BLACK
-
272416-240 BOX, STORAGE - BLACKBOX, STORAGE - BLACK
-
280623-544 PLUGPLUG
-
292506-235 LID, STORAGE BOX - W/LATCH (INC. 30-31)LID, STORAGE BOX - W/LATCH (INC. 30-31)
-
301406-599 ...LATCH, STORAGE BOX...LATCH, STORAGE BOX
-
311406-862 ...LID, STORAGE BOX...LID, STORAGE BOX
-
320423-101 SCREW, SHOULDERSCREW, SHOULDER
-
334506-392 FENDER, FRONT - ASSEMBLY - RED (INC. 34-39)FENDER, FRONT - ASSEMBLY - RED (INC. 34-39)
-
341411-078 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
341411-079 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
351411-574 ...DECAL, WARNING - OFF-ROAD ONLY...DECAL, WARNING - OFF-ROAD ONLY
-
361411-804 ...DECAL, WARNING - AGE (16)...DECAL, WARNING - AGE (16)
-
371411-932 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
384411-818 ...DECAL, WARNING - TURN/HILL...DECAL, WARNING - TURN/HILL
-
390412-394 ...SHIELD, HEAT...SHIELD, HEAT
-
405411-634 DECAL, SIDE - UPPER RIGHT - REDDECAL, SIDE - UPPER RIGHT - RED
-
405411-635 DECAL, SIDE - UPPER LEFT - REDDECAL, SIDE - UPPER LEFT - RED
-
411411-725 DECAL - "ARCTIC CAT" - BLACKDECAL - "ARCTIC CAT" - BLACK
