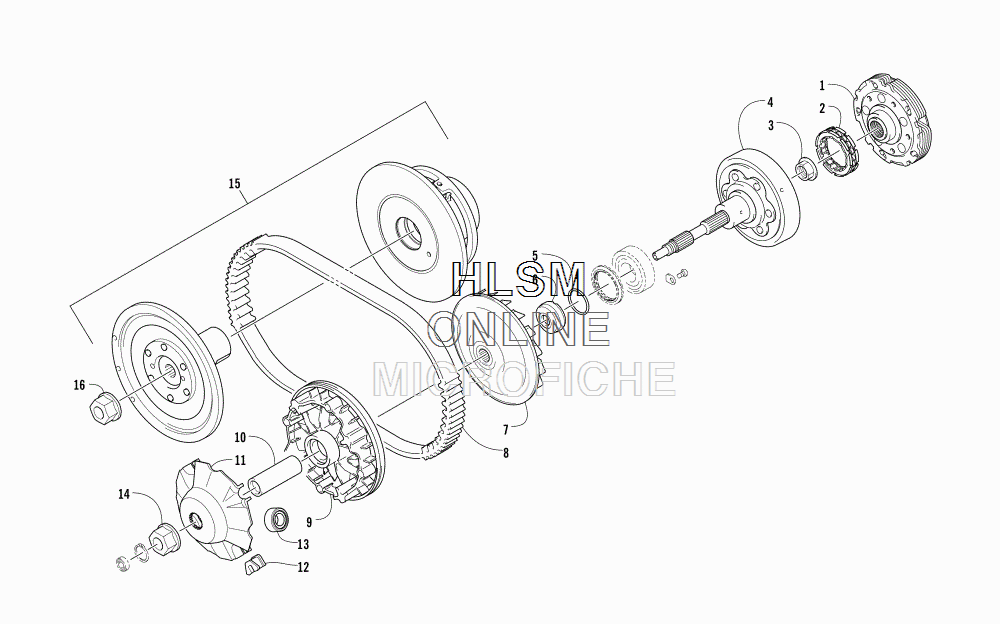

CLUTCH AND DRIVE BELT ASSEMBLY для Arctic Cat 500 RED - 2017 года выпуска`
-
№АртикулНазвание
-
10823-328 SHOE, CLUTCH - ASSEMBLYSHOE, CLUTCH - ASSEMBLY
-
20823-198 CLUTCH, ONE-WAYCLUTCH, ONE-WAY
-
30827-050 NUTNUT
-
40823-338 HOUSING, CLUTCHHOUSING, CLUTCH
-
50830-187 O-RINGO-RING
-
60823-058 SPACERSPACER
-
70823-313 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
80823-228 BELT, DRIVEBELT, DRIVE
-
90823-324 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
100823-206 SPACER, MOVABLE DRIVE FACESPACER, MOVABLE DRIVE FACE
-
110823-213 PLATE, MOVABLE DRIVE FACEPLATE, MOVABLE DRIVE FACE
-
120823-214 DAMPER, MOVABLE DRIVE FACEDAMPER, MOVABLE DRIVE FACE
-
130823-351 ROLLER, MOVABLE DRIVE FACEROLLER, MOVABLE DRIVE FACE
-
143323-165 NUT, FLANGE - 16 MMNUT, FLANGE - 16 MM
-
150823-350 CLUTCH, DRIVEN - ASSEMBLYCLUTCH, DRIVEN - ASSEMBLY
-
160827-058 NUTNUT
