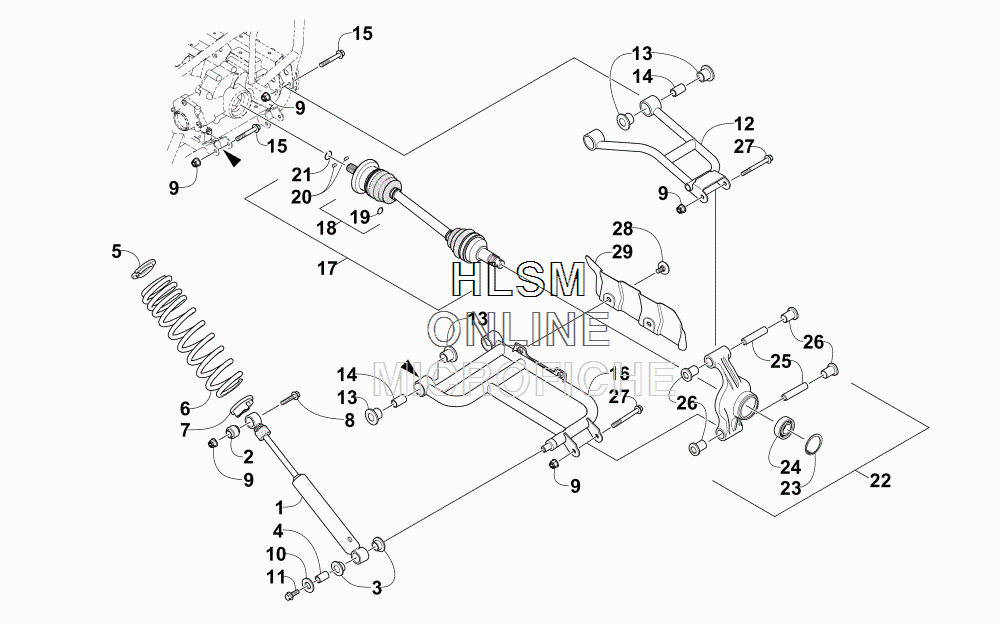

REAR SUSPENSION ASSEMBLY для Arctic Cat TBX 700 EPS SE CAMO/ORANGE [A2016BBT1PUSH] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0404-158 SHOCK ABSORBER (INC. 2-4)
    SHOCK ABSORBER (INC. 2-4)
  • 2
    0403-182 ...BUSHING
    ...BUSHING
  • 3
    0603-955 ...BUSHING
    ...BUSHING
  • 4
    1603-575 ...SLEEVE, EYELET
    ...SLEEVE, EYELET
  • 5
    1603-889 RETAINER, SPRING
    RETAINER, SPRING
  • 6
    0504-536 SPRING, SUSPENSION - BLACK
    SPRING, SUSPENSION - BLACK
  • 7
    0404-496 CAM, SPRING ADJUSTER
    CAM, SPRING ADJUSTER
  • 8
    8409-050 SCREW, CAP
    SCREW, CAP
  • 9
    0423-744 NUT, LOCK
    NUT, LOCK
  • 10
    0423-087 WASHER
    WASHER
  • 11
    8408-820 SCREW, CAP
    SCREW, CAP
  • 12
    0504-582 A-ARM, REAR - UPPER RIGHT - BLACK (INC. 13-14)
    A-ARM, REAR - UPPER RIGHT - BLACK (INC. 13-14)
  • 12
    0504-583 A-ARM, REAR - UPPER LEFT - BLACK (INC. 13-14)
    A-ARM, REAR - UPPER LEFT - BLACK (INC. 13-14)
  • 13
    0403-409 ...BUSHING
    ...BUSHING
  • 14
    0403-438 ...COLLAR
    ...COLLAR
  • 15
    8409-075 SCREW, CAP
    SCREW, CAP
  • 16
    0504-572 A-ARM, REAR - LOWER RIGHT - BLACK (INC. 13-14)
    A-ARM, REAR - LOWER RIGHT - BLACK (INC. 13-14)
  • 16
    0504-573 A-ARM, REAR - LOWER LEFT - BLACK (INC. 13-14)
    A-ARM, REAR - LOWER LEFT - BLACK (INC. 13-14)
  • 17
    2502-353 KIT, HALFSHAFT (INC. 18-21)
    KIT, HALFSHAFT (INC. 18-21)
  • 18
    2436-111 ...REPAIR KIT, BOOT (INC. 19)
    ...REPAIR KIT, BOOT (INC. 19)
  • 19
    1441-988 CLIP, RETAINING
    CLIP, RETAINING
  • 20
    1402-884 PIN, DETENT
    PIN, DETENT
  • 21
    1402-890 CLIP, RETAINING
    CLIP, RETAINING
  • 22
    0504-548 KNUCKLE, REAR - ASSEMBLY (RIGHT) (INC. 23-26)
    KNUCKLE, REAR - ASSEMBLY (RIGHT) (INC. 23-26)
  • 22
    0504-549 KNUCKLE, REAR - ASSEMBLY (LEFT) (INC. 23-26)
    KNUCKLE, REAR - ASSEMBLY (LEFT) (INC. 23-26)
  • 23
    0423-423 ...RING, RETAINING
    ...RING, RETAINING
  • 24
    1402-809 ...BEARING
    ...BEARING
  • 25
    0403-437 ...COLLAR, SUSPENSION BUSHING
    ...COLLAR, SUSPENSION BUSHING
  • 26
    0403-283 ...BUSHING, SUSPENSION
    ...BUSHING, SUSPENSION
  • 27
    8409-000 SCREW, CAP
    SCREW, CAP
  • 28
    0423-545 SCREW, SHOULDER
    SCREW, SHOULDER
  • 29
    1406-068 GUARD, BOOT - RIGHT
    GUARD, BOOT - RIGHT
  • 29
    1406-069 GUARD, BOOT - LEFT
    GUARD, BOOT - LEFT
