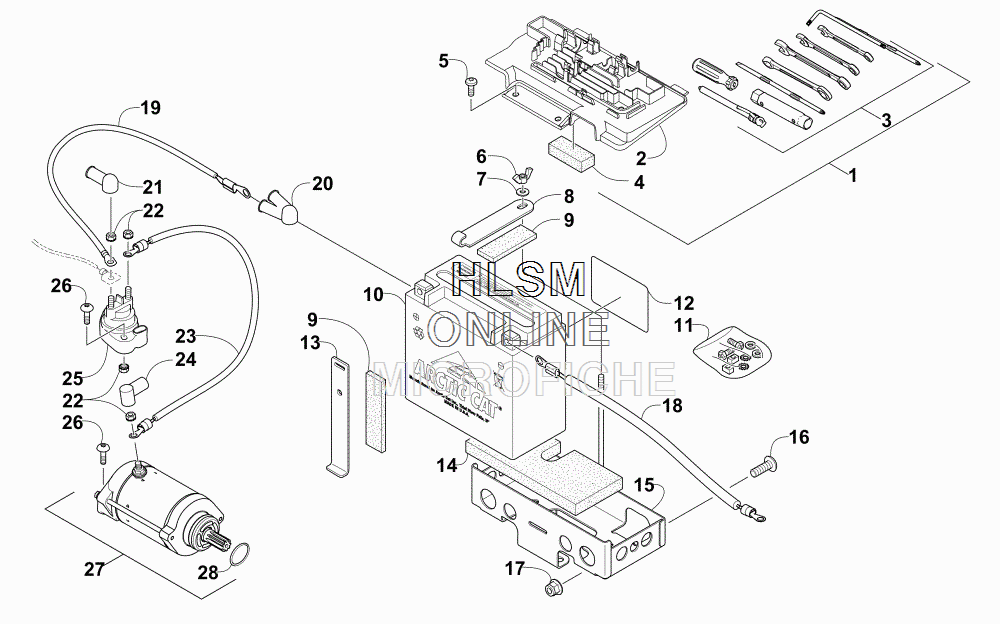

BATTERY AND STARTER ASSEMBLY для Arctic Cat TBX 700 EPS SE CAMO/ORANGE [A2016BBT1PUSH] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    5993-041 BATTERY COVER/TOOL TRAY ASSEMBLY (INC. 2-4)
    BATTERY COVER/TOOL TRAY ASSEMBLY (INC. 2-4)
  • 2
    4506-970 ...COVER, BATTERY
    ...COVER, BATTERY
  • 3
    0444-122 ...KIT, TOOL
    ...KIT, TOOL
  • 4
    0417-016 ...PAD, BATTERY
    ...PAD, BATTERY
  • 5
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    0623-325 NUT, WING
    NUT, WING
  • 7
    8050-217 WASHER
    WASHER
  • 8
    0645-243 HOLD-DOWN, BATTERY - TOP
    HOLD-DOWN, BATTERY - TOP
  • 9
    0406-288 PAD, FOAM
    PAD, FOAM
  • 10
    0745-406 BATTERY (INC. 11-12)
    BATTERY (INC. 11-12)
  • 11
    0445-082 ...KIT, HARDWARE
    ...KIT, HARDWARE
  • 12
    0645-430 ...DECAL, WARNING
    ...DECAL, WARNING
  • 13
    0645-311 HOLD-DOWN, BATTERY - SIDE
    HOLD-DOWN, BATTERY - SIDE
  • 14
    0406-227 PAD, FOAM
    PAD, FOAM
  • 15
    2516-591 BOX, BATTERY
    BOX, BATTERY
  • 16
    8468-820 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    8427-802 NUT, LOCK
    NUT, LOCK
  • 18
    0445-084 CABLE, BATTERY/GROUND
    CABLE, BATTERY/GROUND
  • 19
    0445-061 CABLE, SOLENOID/STARTER
    CABLE, SOLENOID/STARTER
  • 20
    0445-067 BOOT, DUAL TERMINAL
    BOOT, DUAL TERMINAL
  • 21
    0645-327 BOOT, TERMINAL - SOLENOID
    BOOT, TERMINAL - SOLENOID
  • 22
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 23
    0445-064 CABLE, SOLENOID/STARTER (INC. 24)
    CABLE, SOLENOID/STARTER (INC. 24)
  • 24
    0645-019 ...BOOT, TERMINAL
    ...BOOT, TERMINAL
  • 25
    0445-058 SOLENOID, STARTER RELAY
    SOLENOID, STARTER RELAY
  • 26
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 27
    0825-024 MOTOR, STARTER (INC. 28)
    MOTOR, STARTER (INC. 28)
  • 28
    0830-228 ...O-RING
    ...O-RING
