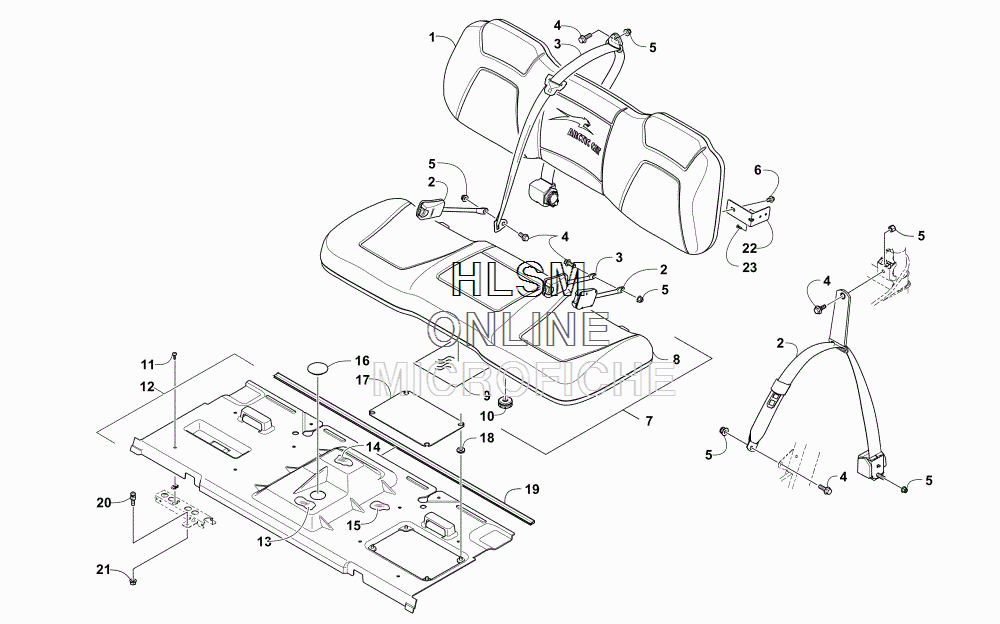

SEAT ASSEMBLY для Arctic Cat HDX 700 XT BLACK [U2016R6T1PISO] - 2016 года выпуска
-
№АртикулНазвание
-
17506-538 BACKREST ASSEMBLYBACKREST ASSEMBLY
-
25506-889 BELT, SEATBELT, SEAT
-
35506-892 BELT, SEAT - 3 POINTBELT, SEAT - 3 POINT
-
41423-182 SCREW, CAPSCREW, CAP
-
51423-184 NUT, LOCKNUT, LOCK
-
68408-820 SCREW, CAPSCREW, CAP
-
75506-616 SEAT, BENCH - BOTTOM - W/FOIL (INC. 8-10)SEAT, BENCH - BOTTOM - W/FOIL (INC. 8-10)
-
90412-776 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
101423-066 ...GROMMET...GROMMET
-
110423-609 SCREW, MACHINESCREW, MACHINE
-
125506-384 BASE, SEAT (INC. 13-15)BASE, SEAT (INC. 13-15)
-
130412-779 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
140412-780 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
150412-781 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
160623-600 PLUGPLUG
-
172416-491 COVER, ACCESSCOVER, ACCESS
-
181623-156 GROMMETGROMMET
-
192406-915 SEAL, CARGO BOXSEAL, CARGO BOX
-
201423-286 STUD, LATCH - SEATSTUD, LATCH - SEAT
-
218424-002 NUTNUT
-
227506-166 BRACKET, LOWER SEAT MOUNTBRACKET, LOWER SEAT MOUNT
-
230423-538 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
