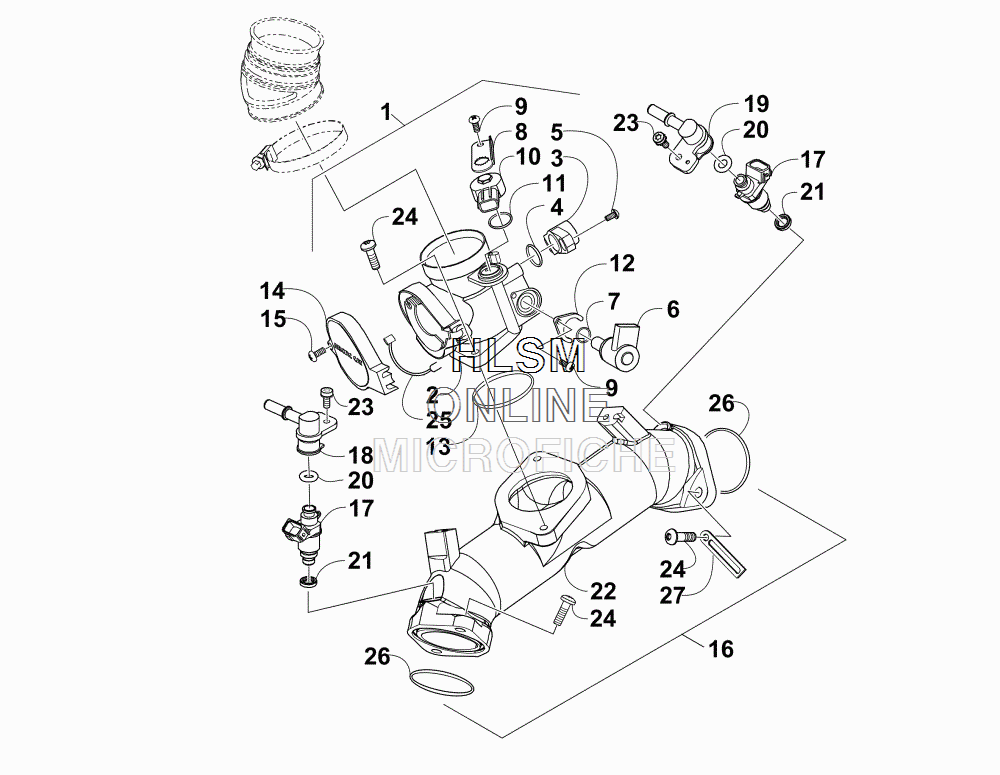

THROTTLE BODY ASSEMBLY для Arctic Cat 1000 MUD PRO SE EPS [A2016MLW1PUSW] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0470-686 THROTTLE - ASSEMBLY (INC. 2-15)
    THROTTLE - ASSEMBLY (INC. 2-15)
  • 3
    0430-072 ...SENSOR, THROTTLE POSITION
    ...SENSOR, THROTTLE POSITION
  • 4
    5507-234 ...O-RING, THROTTLE POSITION SENSOR
    ...O-RING, THROTTLE POSITION SENSOR
  • 5
    5507-231 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 6
    0430-074 ...VALVE, ISC
    ...VALVE, ISC
  • 7
    5507-233 ...O-RING, ISC VALVE
    ...O-RING, ISC VALVE
  • 8
    5507-227 ...BRACKET, MAP SENSOR
    ...BRACKET, MAP SENSOR
  • 9
    5507-117 ...SCREW
    ...SCREW
  • 10
    0430-073 ...SENSOR, MAP
    ...SENSOR, MAP
  • 11
    5507-232 ...O-RING, MAP SENSOR
    ...O-RING, MAP SENSOR
  • 12
    5507-229 ...PLATE, ISC VALVE
    ...PLATE, ISC VALVE
  • 13
    5507-235 ...O-RING
    ...O-RING
  • 14
    5507-223 ...COVER
    ...COVER
  • 15
    5507-037 ...SCREW
    ...SCREW
  • 16
    0570-407 MANIFOLD, INTAKE - ASSEMBLY (INC. 17-23)
    MANIFOLD, INTAKE - ASSEMBLY (INC. 17-23)
  • 17
    0470-688 ...INJECTOR, FUEL
    ...INJECTOR, FUEL
  • 18
    0470-763 ...RAIL, FUEL - FRONT CYLINDER
    ...RAIL, FUEL - FRONT CYLINDER
  • 19
    0470-764 ...RAIL, FUEL - REAR CYLINDER
    ...RAIL, FUEL - REAR CYLINDER
  • 20
    0470-767 ...O-RING, FUEL INJECTOR
    ...O-RING, FUEL INJECTOR
  • 21
    0470-768 ...RING, SEAL - FUEL INJECTOR
    ...RING, SEAL - FUEL INJECTOR
  • 22
    0570-406 ...MANIFOLD, INTAKE
    ...MANIFOLD, INTAKE
  • 23
    0423-371 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 24
    0826-008 SCREW, MACHINE
    SCREW, MACHINE
  • 25
    0487-046 CABLE, THROTTLE
    CABLE, THROTTLE
  • 26
    0830-090 O-RING
    O-RING
  • 27
    1623-984 CLAMP, ROUTING
    CLAMP, ROUTING
