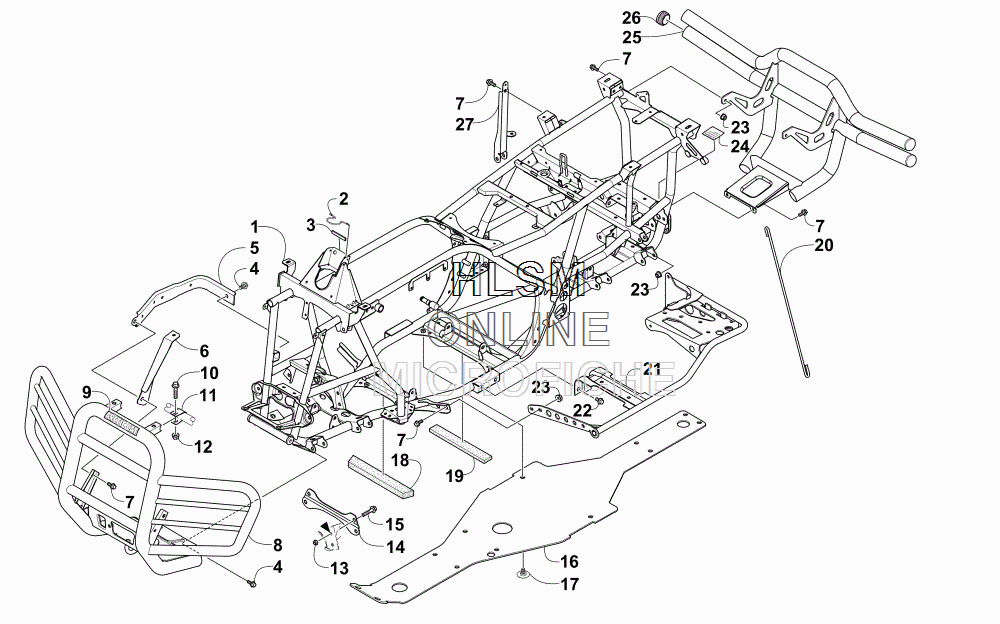

FRAME AND RELATED PARTS для Arctic Cat 1000 MUD PRO SE EPS [A2016MLW1PUSW] - 2016 года выпуска`
-
№АртикулНазвание
-
14506-556 FRAME, MAINFRAME, MAIN
-
22416-401 CLIP, ROUTINGCLIP, ROUTING
-
30706-371 TRIM - 3 FTTRIM - 3 FT
-
48409-020 SCREW, CAPSCREW, CAP
-
52506-285 CHANNEL, BUMPER MOUNTING - LEFTCHANNEL, BUMPER MOUNTING - LEFT
-
61506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
61506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
78408-816 SCREW, CAPSCREW, CAP
-
87506-409 BUMPER, FRONTBUMPER, FRONT
-
90621-755 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
108410-835 SCREW, CAPSCREW, CAP
-
112506-641 STRAP, SUPPORTSTRAP, SUPPORT
-
128424-805 NUTNUT
-
130423-744 NUT, LOCKNUT, LOCK
-
142516-852 BRACE, A-ARMBRACE, A-ARM
-
158409-025 SCREW, CAPSCREW, CAP
-
162406-718 PANEL, BELLYPANEL, BELLY
-
170423-101 SCREW, SHOULDERSCREW, SHOULDER
-
182506-701 PAD, FOAMPAD, FOAM
-
190406-289 PAD, FRAMEPAD, FRAME
-
202406-788 STRAP, FOOTREST - RIGHTSTRAP, FOOTREST - RIGHT
-
202406-789 STRAP, FOOTREST - LEFTSTRAP, FOOTREST - LEFT
-
212506-776 FOOTREST - RIGHTFOOTREST - RIGHT
-
211506-849 FOOTREST - LEFTFOOTREST - LEFT
-
228409-016 SCREW, CAPSCREW, CAP
-
238424-802 NUTNUT
-
244411-550 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
-
257506-410 BUMPER, REARBUMPER, REAR
-
260406-130 PLUGPLUG
-
272506-447 BRACKET, SUPPORTBRACKET, SUPPORT
