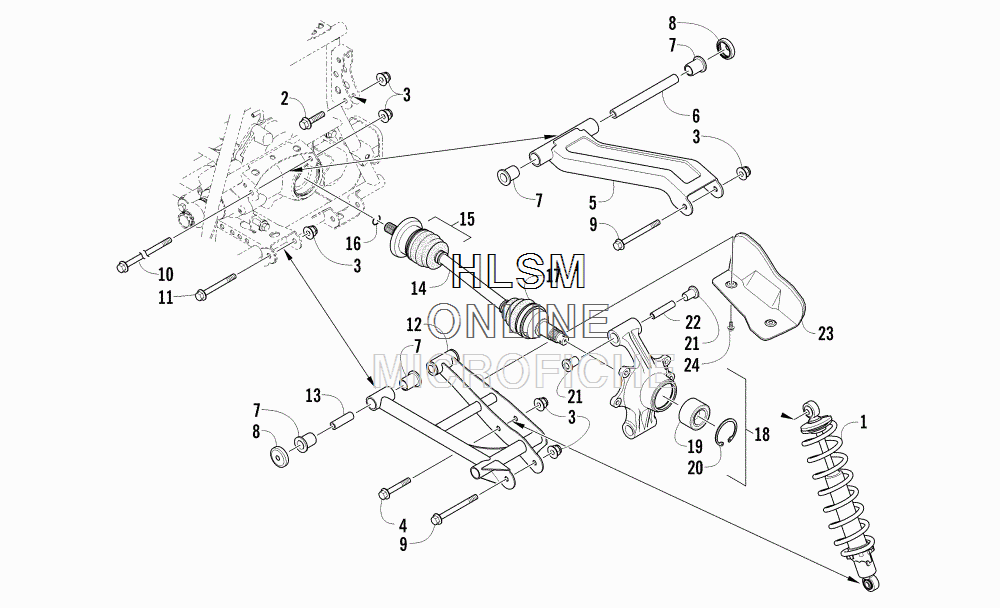

REAR SUSPENSION ASSEMBLY для Arctic Cat XC 450 EFT ORANGE [A2015KCK4CETY] - 2015 года выпуска`
-
№АртикулНазвание
-
13306-776 SHOCK/SPRING ASSEMBLY - WHITESHOCK/SPRING ASSEMBLY - WHITE
-
23303-376 SCREW, CAPSCREW, CAP
-
33304-031 NUT, LOCKNUT, LOCK
-
48409-065 SCREW, CAPSCREW, CAP
-
53306-414 A-ARM, UPPER RIGHT - PLATINUM (INC. ONE NO. 6, FOUR NO. 7, AND FOUR NO. 8)A-ARM, UPPER RIGHT - PLATINUM (INC. ONE NO. 6, FOUR NO. 7, AND FOUR NO. 8)
-
53306-415 A-ARM, UPPER LEFT - PLATINUM (INC. ONE NO. 6, FOUR NO. 7, AND FOUR NO. 8)A-ARM, UPPER LEFT - PLATINUM (INC. ONE NO. 6, FOUR NO. 7, AND FOUR NO. 8)
-
63313-111 ...AXLE...AXLE
-
73313-112 ...BUSHING...BUSHING
-
83313-113 ...SEAL...SEAL
-
93323-188 SCREW, CAPSCREW, CAP
-
103313-430 SCREW, CAPSCREW, CAP
-
113304-183 SCREW, CAPSCREW, CAP
-
123306-568 A-ARM, LOWER RIGHT - PLATINUM (INC. FOUR NO. 7, FOUR NO. 8, AND TWO NO. 13)A-ARM, LOWER RIGHT - PLATINUM (INC. FOUR NO. 7, FOUR NO. 8, AND TWO NO. 13)
-
123306-569 A-ARM, LOWER LEFT - PLATINUM (INC. FOUR NO. 7, FOUR NO. 8, AND TWO NO. 13)A-ARM, LOWER LEFT - PLATINUM (INC. FOUR NO. 7, FOUR NO. 8, AND TWO NO. 13)
-
133313-107 ...AXLE...AXLE
-
143313-832 AXLE, DRIVE (INC. 15-17)AXLE, DRIVE (INC. 15-17)
-
153313-560 ...REPAIR KIT, BOOT - DRIVE AXLE - INBOUND...REPAIR KIT, BOOT - DRIVE AXLE - INBOUND
-
160423-845 ...RING, RETAINING...RING, RETAINING
-
173306-425 ...REPAIR KIT, BOOT - DRIVE AXLE - OUTBOUND...REPAIR KIT, BOOT - DRIVE AXLE - OUTBOUND
-
183323-108 KNUCKLE - ASSEMBLY - RIGHT (INC. ONE NO. 19, ONE NO. 20, FOUR NO. 21, AND TWO NO. 22)KNUCKLE - ASSEMBLY - RIGHT (INC. ONE NO. 19, ONE NO. 20, FOUR NO. 21, AND TWO NO. 22)
-
183323-109 KNUCKLE - ASSEMBLY - LEFT (INC. ONE NO. 19, ONE NO. 20, FOUR NO. 21, AND TWO NO. 22)KNUCKLE - ASSEMBLY - LEFT (INC. ONE NO. 19, ONE NO. 20, FOUR NO. 21, AND TWO NO. 22)
-
191402-809 ...BEARING...BEARING
-
200423-423 ...RING, RETAINING...RING, RETAINING
-
210403-283 ...BUSHING...BUSHING
-
220403-213 ...AXLE...AXLE
-
233306-486 MUDGUARD - RIGHTMUDGUARD - RIGHT
-
233306-487 MUDGUARD - LEFTMUDGUARD - LEFT
-
243304-587 SCREW, CAPSCREW, CAP
