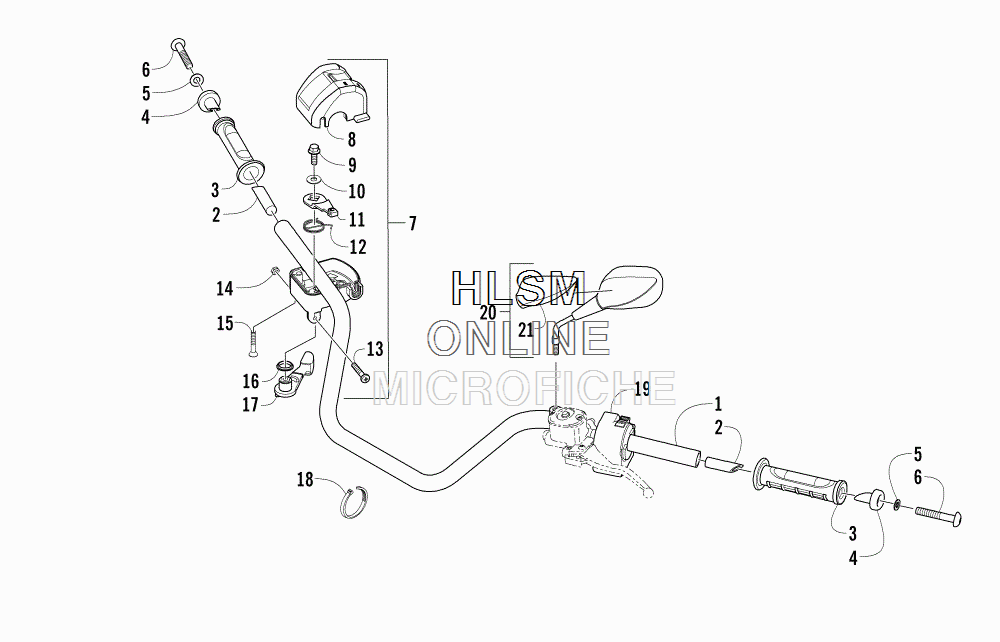

HANDLEBAR ASSEMBLY для Arctic Cat XC 450 EFT ORANGE [A2015KCK4CETY] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3306-614 HANDLEBAR
    HANDLEBAR
  • 2
    0405-148 PLUG, HANDLEBAR
    PLUG, HANDLEBAR
  • 3
    3306-448 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 4
    0405-149 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 5
    8050-247 WASHER
    WASHER
  • 6
    8477-845 SCREW, MACHINE
    SCREW, MACHINE
  • 7
    3306-276 CASE, THROTTLE - ASSEMBLY (INC. 8-17)
    CASE, THROTTLE - ASSEMBLY (INC. 8-17)
  • 9
    3305-344 ...SCREW, CAP
    ...SCREW, CAP
  • 10
    3313-739 ...WASHER
    ...WASHER
  • 11
    3313-838 ...ARM, THROTTLE
    ...ARM, THROTTLE
  • 12
    3313-839 ...SPRING
    ...SPRING
  • 13
    3313-740 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 14
    3305-832 ...NUT
    ...NUT
  • 15
    3313-741 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 16
    3313-841 ...SPACER
    ...SPACER
  • 17
    3313-842 ...LEVER
    ...LEVER
  • 18
    3303-839 TIE, CABLE
    TIE, CABLE
  • 19
    3313-581 SWITCH, CONTROL - ASSEMBLY
    SWITCH, CONTROL - ASSEMBLY
  • 20
    3306-808 MIRROR - RIGHT (INC. 21)
    MIRROR - RIGHT (INC. 21)
  • 20
    3306-809 MIRROR - LEFT (INC. 21)
    MIRROR - LEFT (INC. 21)
  • 21
    3306-970 ...COVER, MIRROR - RIGHT
    ...COVER, MIRROR - RIGHT
  • 21
    3306-971 ...COVER, MIRROR - LEFT
    ...COVER, MIRROR - LEFT
