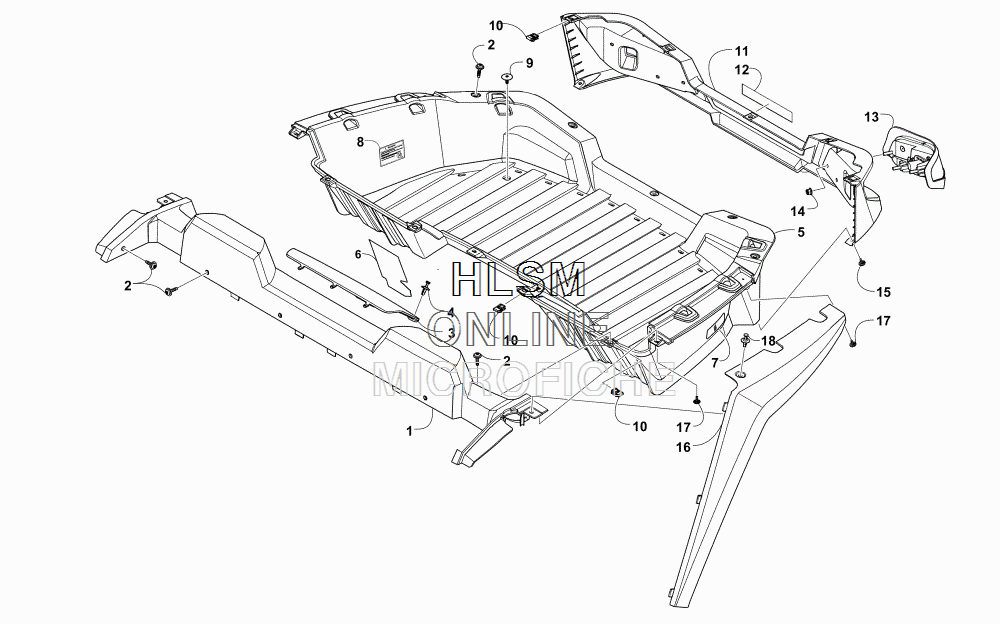

CARGO BOX AND TAILLIGHT ASSEMBLY для Arctic Cat WILDCAT TRAIL RED [U2015W5T4CUSR] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4406-382 PANEL, HEADREST - RED
    PANEL, HEADREST - RED
  • 2
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
  • 3
    2416-825 COVER, ACCESS
    COVER, ACCESS
  • 4
    0423-535 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 5
    5506-602 BOX, CARGO - W/DECALS (INC.6-7)
    BOX, CARGO - W/DECALS (INC.6-7)
  • 6
    2411-974 ...DECAL, REFLECTOR - RED
    ...DECAL, REFLECTOR - RED
  • 7
    5411-405 ...DECAL, "550 EFI" WHITE METALLIC
    ...DECAL, "550 EFI" WHITE METALLIC
  • 8
    1423-109 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 9
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 10
    4406-264 FASCIA, REAR
    FASCIA, REAR
  • 11
    2411-944 DECAL, ARCTIC CAT
    DECAL, ARCTIC CAT
  • 12
    0509-074 TAILLIGHT - RIGHT
    TAILLIGHT - RIGHT
  • 12
    0509-075 TAILLIGHT - LEFT
    TAILLIGHT - LEFT
  • 13
    8427-602 NUT, LOCK
    NUT, LOCK
  • 14
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    4406-380 FENDER, REAR - RIGHT - RED
    FENDER, REAR - RIGHT - RED
  • 15
    4406-381 FENDER, REAR - LEFT - RED
    FENDER, REAR - LEFT - RED
  • 16
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    0623-362 CLIP, RETAINING
    CLIP, RETAINING
