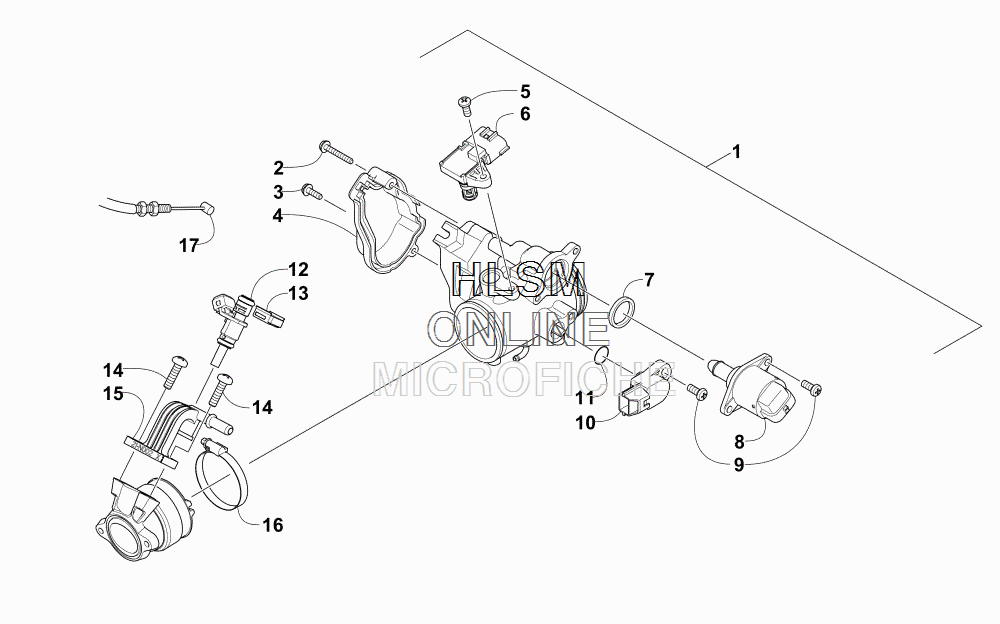

THROTTLE BODY ASSEMBLY для Arctic Cat TRV 500 RED [A2015TBK4CUSR] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-328 THROTTLE BODY - ASSEMBLY (INC. 2-11)
    THROTTLE BODY - ASSEMBLY (INC. 2-11)
  • 2
    3306-267 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 3
    3306-266 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 4
    0824-060 ...COVER
    ...COVER
  • 5
    0835-007 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 6
    0824-052 ...SENSOR, T-MAP
    ...SENSOR, T-MAP
  • 7
    0832-088 ...SEAL
    ...SEAL
  • 8
    0824-054 ...VALVE, BYPASS - IDLE AIR
    ...VALVE, BYPASS - IDLE AIR
  • 9
    3305-953 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 10
    0824-053 SENSOR, THROTTLE POSITION (INC. 11)
    SENSOR, THROTTLE POSITION (INC. 11)
  • 11
    3306-150 ...O-RING
    ...O-RING
  • 12
    0470-884 INJECTOR, FUEL
    INJECTOR, FUEL
  • 13
    0470-889 CLIP, RETAINING
    CLIP, RETAINING
  • 14
    8468-620 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    0470-885 RAIL, FUEL
    RAIL, FUEL
  • 16
    0423-019 CLAMP
    CLAMP
  • 17
    0487-076 CABLE, THROTTLE
    CABLE, THROTTLE
