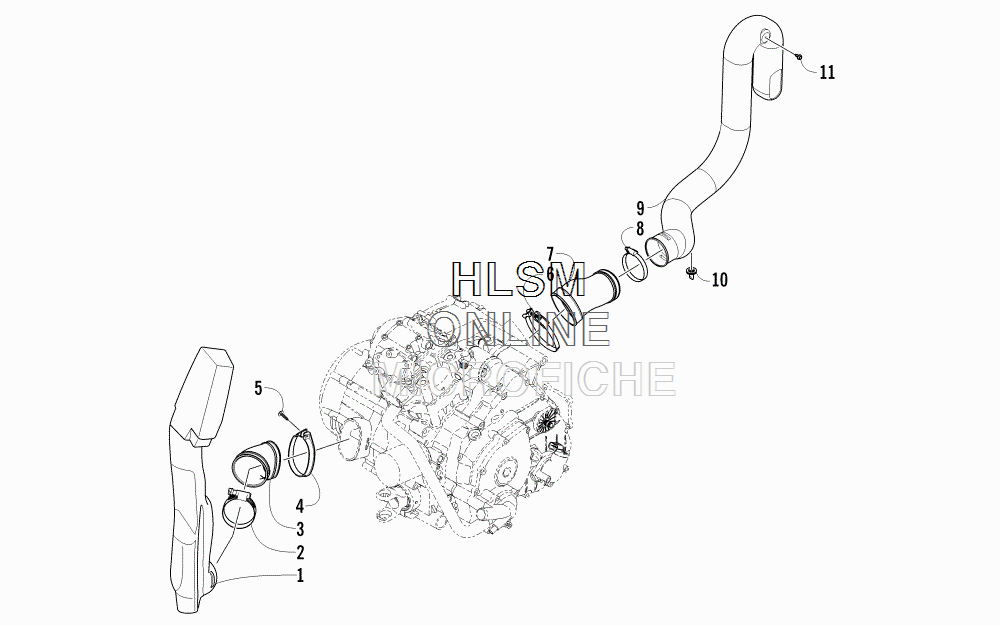

CASE/BELT COOLING ASSEMBLY для Arctic Cat TRV 500 RED [A2015TBK4CUSR] - 2015 года выпуска
-
№АртикулНазвание
-
10413-126 DUCT, AIR INTAKE - FRONT - LOWERDUCT, AIR INTAKE - FRONT - LOWER
-
20423-057 CLAMPCLAMP
-
30413-160 BOOT, COOLING - BELTBOOT, COOLING - BELT
-
40423-550 CLAMPCLAMP
-
50423-342 SCREW, SELF-TAPPING - .1875 X .75SCREW, SELF-TAPPING - .1875 X .75
-
60423-730 CLAMPCLAMP
-
70413-231 BOOT, AIR-OUTBOOT, AIR-OUT
-
80423-019 CLAMPCLAMP
-
90413-106 DUCT, BELT COOLING - REARDUCT, BELT COOLING - REAR
-
100470-442 VALVE, AIR CLEANERVALVE, AIR CLEANER
-
110623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
