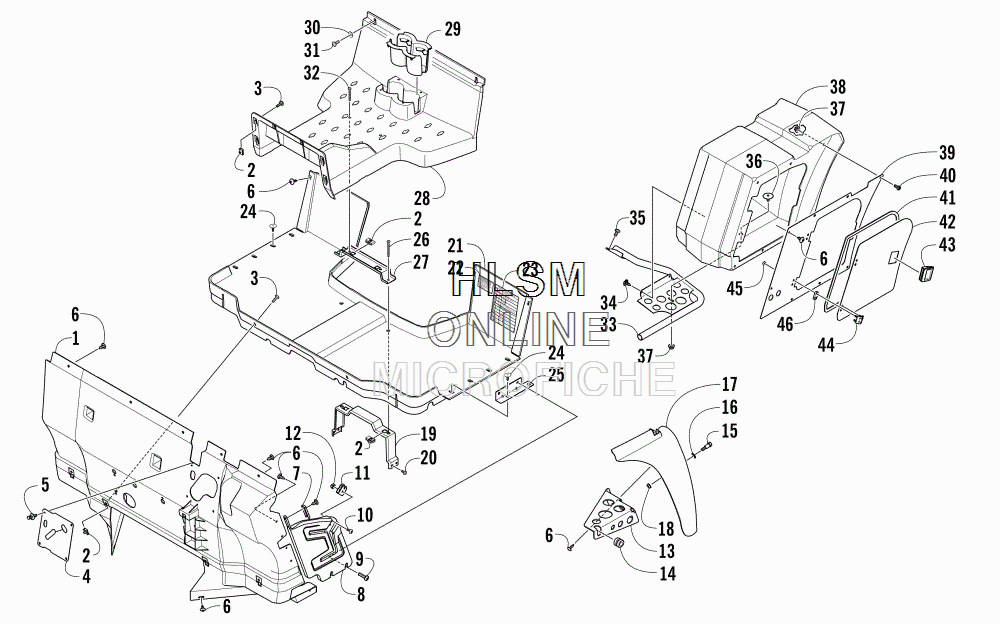

CONSOLE- FLOOR PANEL- AND STORAGE BOX ASSEMBLY для Arctic Cat PROWLER 700 HDX KE CAMO [U2015P5T1PKEH] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2516-798 PANEL, FENDER - INNER
    PANEL, FENDER - INNER
  • 2
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 3
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
  • 4
    0405-407 SEAL, STEERING COLUMN
    SEAL, STEERING COLUMN
  • 5
    0623-362 CLIP, RETAINING
    CLIP, RETAINING
  • 6
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    4506-596 CAP, REINFORCEMENT
    CAP, REINFORCEMENT
  • 8
    2416-848 PANEL, SIDE
    PANEL, SIDE
  • 9
    8468-625 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    0423-419 SCREW, MACHINE
    SCREW, MACHINE
  • 11
    2416-846 LATCH, SIDE RESTRAINT
    LATCH, SIDE RESTRAINT
  • 12
    0623-056 NUT, LOCK
    NUT, LOCK
  • 13
    2506-066 BRACKET, SUPPORT - RIGHT
    BRACKET, SUPPORT - RIGHT
  • 13
    2506-067 BRACKET, SUPPORT - LEFT
    BRACKET, SUPPORT - LEFT
  • 14
    0423-447 GROMMET
    GROMMET
  • 15
    0623-855 SCREW, SHOULDER
    SCREW, SHOULDER
  • 16
    8050-217 WASHER
    WASHER
  • 17
    7506-170 FENDER, FRONT - RIGHT - CAMO
    FENDER, FRONT - RIGHT - CAMO
  • 17
    7506-171 FENDER, FRONT - LEFT - CAMO
    FENDER, FRONT - LEFT - CAMO
  • 18
    8048-366 NUT, LOCK
    NUT, LOCK
  • 19
    2516-313 BRACKET, SUPPORT
    BRACKET, SUPPORT
  • 20
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    2416-085 FLOOR
    FLOOR
  • 22
    2411-233 DECAL, "TREAD LIGHTLY"
    DECAL, "TREAD LIGHTLY"
  • 23
    2411-232 DECAL, PRE-RIDE
    DECAL, PRE-RIDE
  • 24
    0423-545 SCREW, SHOULDER
    SCREW, SHOULDER
  • 25
    4506-260 BRACKET, SIDE PANEL - RIGHT - BLACK
    BRACKET, SIDE PANEL - RIGHT - BLACK
  • 25
    4506-261 BRACKET, SIDE PANEL - LEFT - BLACK
    BRACKET, SIDE PANEL - LEFT - BLACK
  • 26
    8468-670 SCREW, MACHINE
    SCREW, MACHINE
  • 27
    2416-483 BRACKET, SUPPORT - CENTER FOOTREST
    BRACKET, SUPPORT - CENTER FOOTREST
  • 28
    2416-412 FOOTREST, CENTER
    FOOTREST, CENTER
  • 29
    2416-109 INSERT, CUPHOLDER
    INSERT, CUPHOLDER
  • 30
    8450-133 WASHER
    WASHER
  • 31
    8476-630 SCREW, MACHINE
    SCREW, MACHINE
  • 32
    8468-655 SCREW, MACHINE
    SCREW, MACHINE
  • 33
    2516-854 BRACKET, SUPPORT - STORAGE BOX - RIGHT - BLACK
    BRACKET, SUPPORT - STORAGE BOX - RIGHT - BLACK
  • 33
    2516-855 BRACKET, SUPPORT - STORAGE BOX - LEFT - BLACK
    BRACKET, SUPPORT - STORAGE BOX - LEFT - BLACK
  • 34
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 35
    8476-816 SCREW, MACHINE
    SCREW, MACHINE
  • 36
    1423-133 SCREW, SHOULDER
    SCREW, SHOULDER
  • 37
    8427-602 NUT, LOCK
    NUT, LOCK
  • 38
    4506-528 STORAGE BOX - RIGHT - ASSEMBLY (INC. 39-46 AND 12 NO. 37)
    STORAGE BOX - RIGHT - ASSEMBLY (INC. 39-46 AND 12 NO. 37)
  • 38
    4506-527 STORAGE BOX - LEFT - ASSEMBLY (INC. 39-46 AND 12 NO. 37)
    STORAGE BOX - LEFT - ASSEMBLY (INC. 39-46 AND 12 NO. 37)
  • 39
    2516-858 PANEL, REINFORCEMENT
    PANEL, REINFORCEMENT
  • 40
    8477-616 SCREW, MACHINE
    SCREW, MACHINE
  • 41
    2416-504 SEAL, ACCESS DOOR
    SEAL, ACCESS DOOR
  • 42
    2516-853 DOOR, ACCESS
    DOOR, ACCESS
  • 43
    1423-035 LATCH, ACCESS DOOR
    LATCH, ACCESS DOOR
  • 44
    1423-037 HINGE (INC. 45)
    HINGE (INC. 45)
  • 45
    1623-928 ...NUT, STAMPED
    ...NUT, STAMPED
  • 46
    1423-036 SPACER
    SPACER
