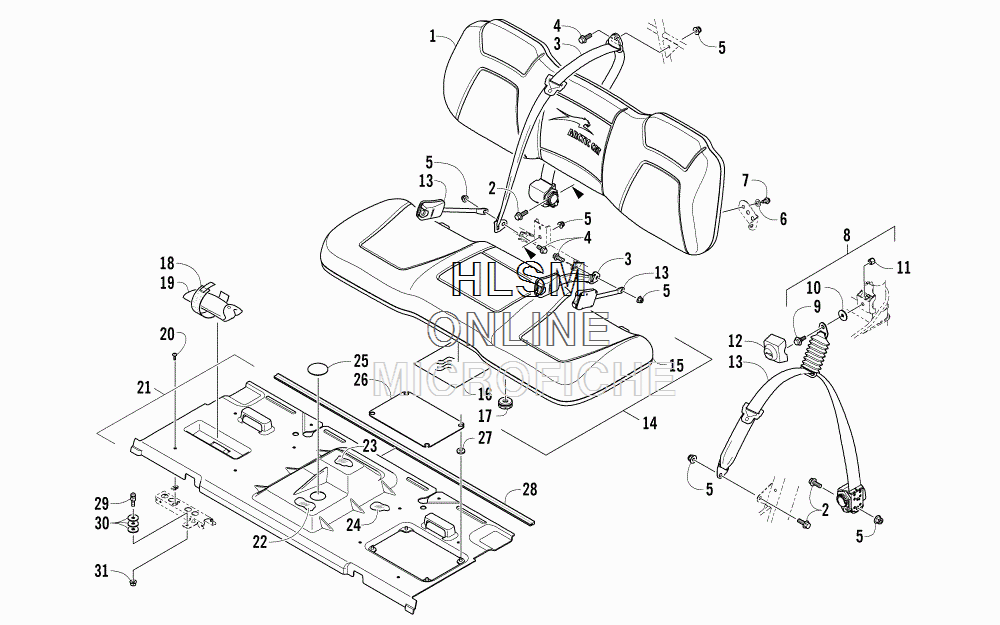

SEAT ASSEMBLY для Arctic Cat PROWLER 700 HDX KE CAMO [U2015P5T1PKEH] - 2015 года выпуска`
-
№АртикулНазвание
-
12516-897 BACKREST ASSEMBLYBACKREST ASSEMBLY
-
21423-199 SCREW, CAPSCREW, CAP
-
35506-195 BELT, SEAT - 3PT.BELT, SEAT - 3PT.
-
41423-182 SCREW, CAPSCREW, CAP
-
51423-184 NUT, LOCKNUT, LOCK
-
68050-252 WASHERWASHER
-
78408-820 SCREW, CAPSCREW, CAP
-
80423-915 SCREW, SHOULDER - ASSEMBLY (INC. 9-11)SCREW, SHOULDER - ASSEMBLY (INC. 9-11)
-
122416-638 COVER, SEAT BELTCOVER, SEAT BELT
-
135506-159 BELT, SEATBELT, SEAT
-
145506-616 SEAT, BENCH - BOTTOM - W/FOIL (INC.15-17)SEAT, BENCH - BOTTOM - W/FOIL (INC.15-17)
-
160412-776 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
171423-066 ...GROMMET...GROMMET
-
180707-582 RETAINER, VELCRORETAINER, VELCRO
-
192516-863 KIT, TOOLKIT, TOOL
-
200423-609 SCREW, MACHINESCREW, MACHINE
-
215506-384 BASE, SEAT (INC. 22-24)BASE, SEAT (INC. 22-24)
-
220412-779 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
230412-780 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
240412-781 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
250623-600 PLUGPLUG
-
262416-491 COVER, ACCESSCOVER, ACCESS
-
271623-156 GROMMETGROMMET
-
282406-915 SEAL, CARGO BOXSEAL, CARGO BOX
-
290423-559 STUD, LATCH - SEATSTUD, LATCH - SEAT
-
300423-073 WASHERWASHER
-
318424-002 NUTNUT
