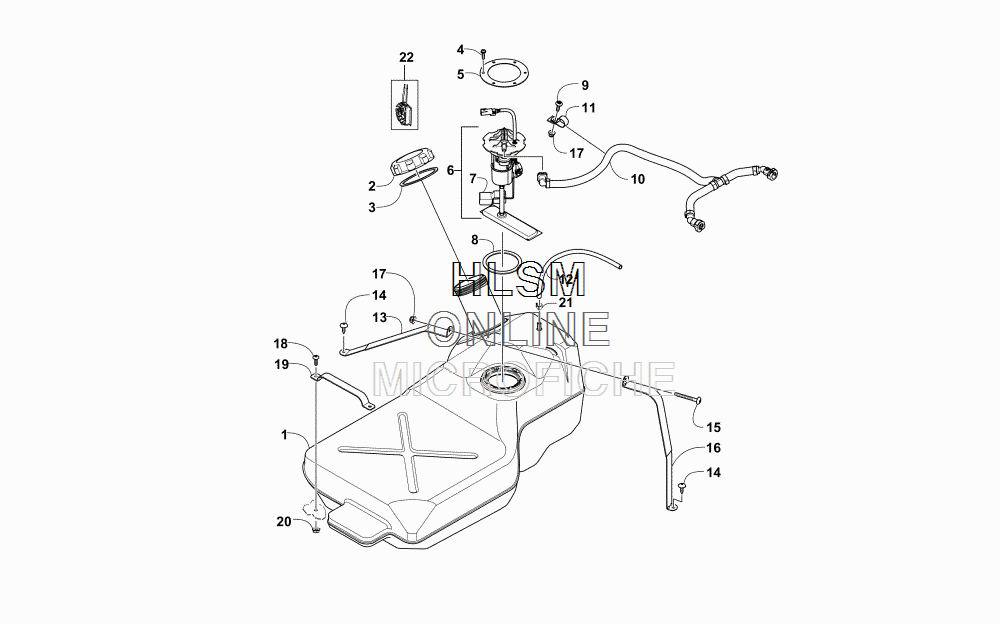

GAS TANK ASSEMBLY для Arctic Cat PROWLER 1000 XT RED [U2015R4W1PUSR] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-309 TANK, GAS - ASSEMBLY (INC 2-5)
    TANK, GAS - ASSEMBLY (INC 2-5)
  • 2
    0470-541 ...GAS TANK CAP
    ...GAS TANK CAP
  • 3
    1670-228 ...GASKET, GAS TANK CAP
    ...GASKET, GAS TANK CAP
  • 4
    0423-898 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 5
    2670-042 ...PLATE, RETAINING
    ...PLATE, RETAINING
  • 6
    0570-435 PUMP, FUEL - ASSEMBLY (INC. 7)
    PUMP, FUEL - ASSEMBLY (INC. 7)
  • 7
    2670-235 ...FLOAT
    ...FLOAT
  • 8
    0470-838 SEAL
    SEAL
  • 9
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    0570-431 HOSE, GASLINE
    HOSE, GASLINE
  • 11
    1623-675 CLAMP, ROUTING
    CLAMP, ROUTING
  • 12
    0410-070 HOSE - 25 FT
    HOSE - 25 FT
  • 13
    0470-829 BRACKET, HOLD-DOWN - RIGHT
    BRACKET, HOLD-DOWN - RIGHT
  • 14
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    8476-650 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0470-830 BRACKET, HOLD-DOWN - LEFT
    BRACKET, HOLD-DOWN - LEFT
  • 17
    8427-602 NUT, LOCK
    NUT, LOCK
  • 18
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    0470-544 BRACKET, HOLD-DOWN - FRONT
    BRACKET, HOLD-DOWN - FRONT
  • 20
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 21
    0423-688 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    1770-170 FUEL LEVEL SENSOR KIT
    FUEL LEVEL SENSOR KIT
