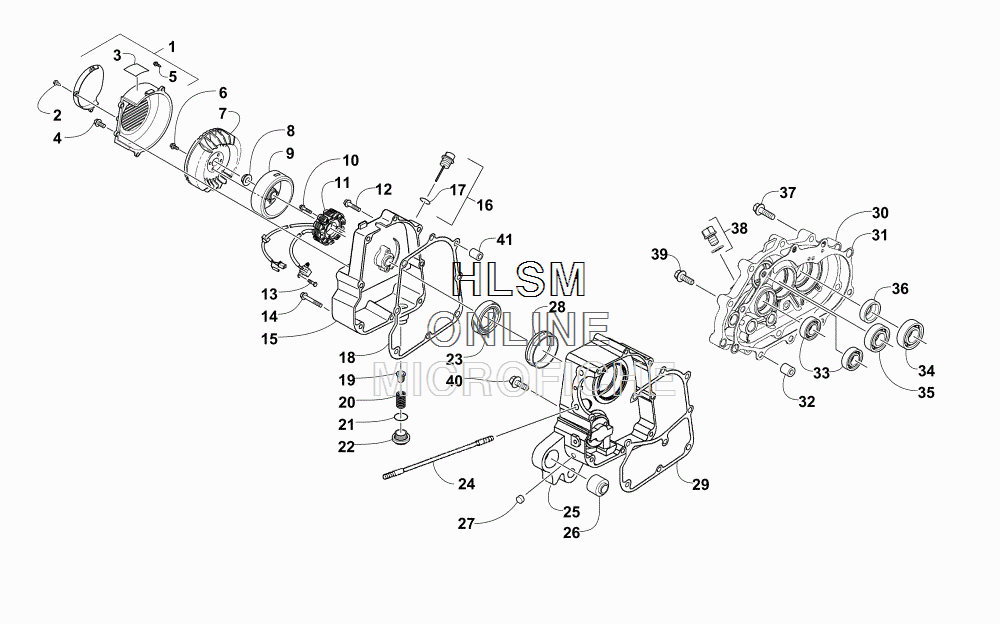

RIGHT CRANKCASE AND COVER ASSEMBLY для Arctic Cat 90 2X4 UTILITY RED [A2015KUB2BOSR] (INTERNATIONAL) - 2015 года выпуска`
-
№АртикулНазвание
-
13305-910 COVER, FAN - ASSEMBLYCOVER, FAN - ASSEMBLY
-
23304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
32411-052 DECAL, SHIFTDECAL, SHIFT
-
43303-384 BOLT, FLANGEBOLT, FLANGE
-
53304-585 SCREW, SELF-TAPPING - 5 X 16 (SQUARE HEAD)SCREW, SELF-TAPPING - 5 X 16 (SQUARE HEAD)
-
63303-382 BOLT, FLANGEBOLT, FLANGE
-
73303-075 FAN, COOLINGFAN, COOLING
-
83303-333 NUT, FLANGE - 10 MMNUT, FLANGE - 10 MM
-
93303-127 ROTOR/FLYWHEEL (A) - D402ROTOR/FLYWHEEL (A) - D402
-
93303-414 ROTOR/FLYWHEEL (B) - D406ROTOR/FLYWHEEL (B) - D406
-
93303-415 ROTOR/FLYWHEEL (C) - D414ROTOR/FLYWHEEL (C) - D414
-
103303-383 BOLTBOLT
-
113304-641 STATOR - ASSEMBLY (O) - D402STATOR - ASSEMBLY (O) - D402
-
113305-254 STATOR - ASSEMBLY (D406) (A) - D406STATOR - ASSEMBLY (D406) (A) - D406
-
113305-256 STATOR - ASSEMBLY (D414) (B) - D414STATOR - ASSEMBLY (D414) (B) - D414
-
123304-580 SCREW, CAPSCREW, CAP
-
133303-308 SCREW, CAPSCREW, CAP
-
143303-390 SCREW, CAPSCREW, CAP
-
153303-007 COVER, CRANKCASECOVER, CRANKCASE
-
163303-050 GAUGE, OIL LEVEL (INC. 17)GAUGE, OIL LEVEL (INC. 17)
-
173304-102 ...O-RING...O-RING
-
183303-012 GASKET, CRANKCASE COVERGASKET, CRANKCASE COVER
-
193303-691 SCREEN, OIL FILTERSCREEN, OIL FILTER
-
203303-692 SPRING, OIL FILTER SCREENSPRING, OIL FILTER SCREEN
-
213304-096 O-RINGO-RING
-
223303-021 CAPCAP
-
233303-296 SEAL, OILSEAL, OIL
-
243303-247 BOLT, STUDBOLT, STUD
-
253303-400 SET, CRANKCASE - RIGHT (INC. 26-28)SET, CRANKCASE - RIGHT (INC. 26-28)
-
263303-402 ...RUBBER BUSHING, ENGINE HANGER...RUBBER BUSHING, ENGINE HANGER
-
273304-065 ...PLUG...PLUG
-
293303-003 GASKET, CRANKCASEGASKET, CRANKCASE
-
303305-806 CASE, TRANSMISSIONCASE, TRANSMISSION
-
313305-807 GASKET, TRANSMISSION CASEGASKET, TRANSMISSION CASE
-
323303-342 PIN, DOWELPIN, DOWEL
-
333303-596 BEARING BALL, RADIALBEARING BALL, RADIAL
-
343305-821 BEARINGBEARING
-
353304-909 BEARINGBEARING
-
363305-808 SEAL, OILSEAL, OIL
-
373303-615 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
383304-052 SCREW, CAP - W/WASHERSCREW, CAP - W/WASHER
-
393305-468 SCREW, CAPSCREW, CAP
-
403303-387 SCREW, CAPSCREW, CAP
-
413303-341 PIN, DOWELPIN, DOWEL
