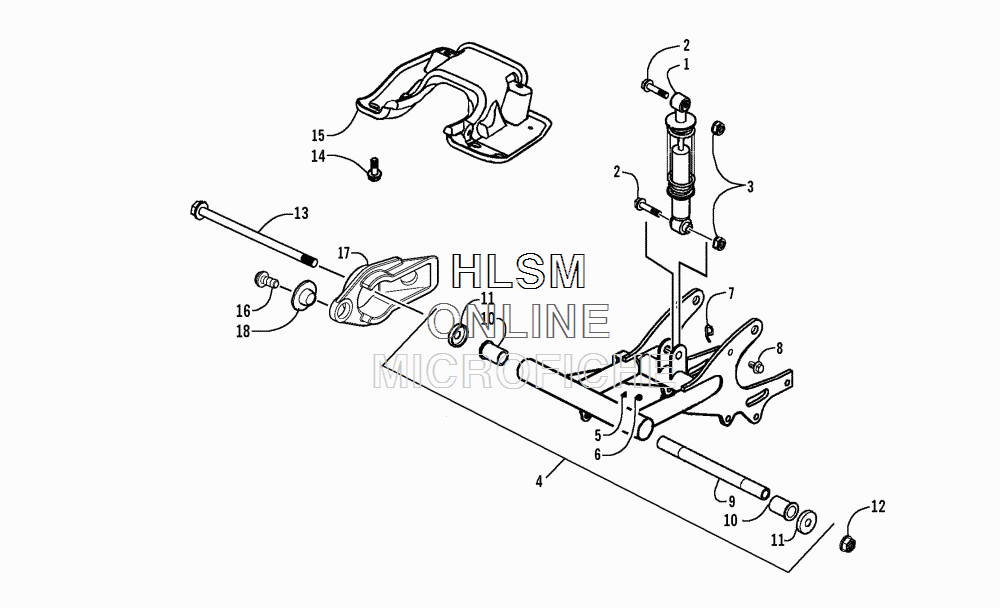

REAR SUSPENSION ASSEMBLY для Arctic Cat 90 2X4 UTILITY RED [A2015KUB2BOSR] (INTERNATIONAL) - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3306-857 SHOCK/SPRING - ASSEMBLY - BLACK
    SHOCK/SPRING - ASSEMBLY - BLACK
  • 2
    3303-376 SCREW, CAP - HFH M10 X 1.25 X 40
    SCREW, CAP - HFH M10 X 1.25 X 40
  • 3
    3304-031 U-NUT
    U-NUT
  • 4
    3305-858 FORK, REAR - ASSEMBLY (INC. 5-11)
    FORK, REAR - ASSEMBLY (INC. 5-11)
  • 5
    3303-394 ...CAP, GREASE FITTING
    ...CAP, GREASE FITTING
  • 6
    3303-393 ...FITTING, GREASE
    ...FITTING, GREASE
  • 7
    3304-594 ...CLAMP, ROUTING
    ...CLAMP, ROUTING
  • 8
    3305-341 ...SCREW, CAP
    ...SCREW, CAP
  • 9
    3303-189 ...AXLE
    ...AXLE
  • 10
    3303-191 ...BUSHING
    ...BUSHING
  • 11
    3303-192 ...CAP
    ...CAP
  • 12
    3304-032 NUT
    NUT
  • 13
    3303-150 SCREW, CAP
    SCREW, CAP
  • 14
    3305-454 SCREW, CAP
    SCREW, CAP
  • 15
    3305-996 GUARD, REAR SUSPENSION
    GUARD, REAR SUSPENSION
  • 16
    3304-690 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    3305-859 GUIDE, CHAIN
    GUIDE, CHAIN
  • 18
    3304-360 BUSHING
    BUSHING
