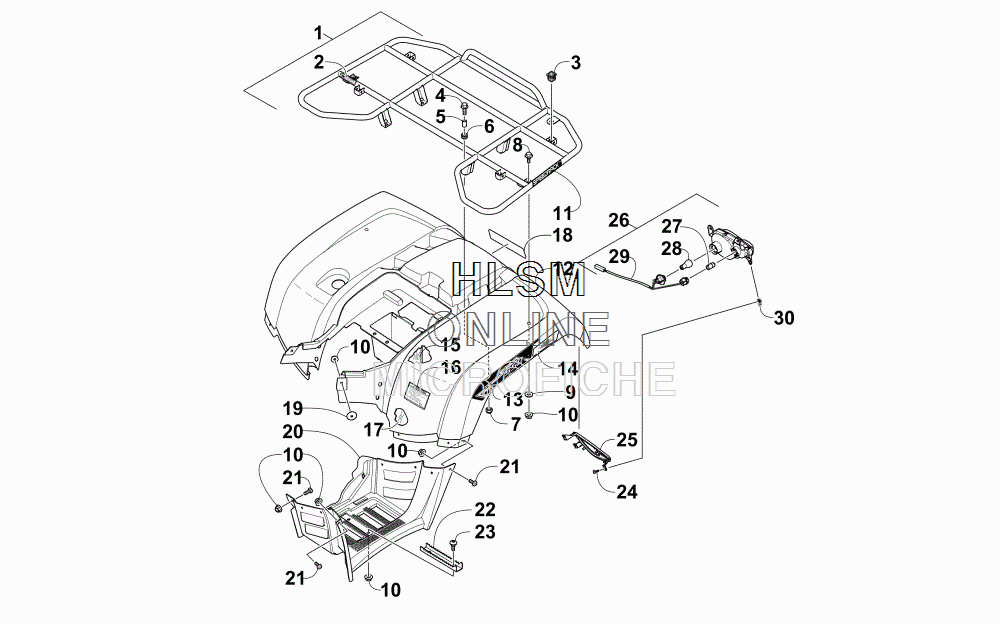

REAR RACK- BODY PANEL- AND FOOTWELL ASSEMBLIES для Arctic Cat 550 EFT BLACK [A2015IBO4EETP] - 2015 года выпуска`
-
№АртикулНазвание
-
12506-125 RACK, REAR - ASSEMBLY (INC. 2-3)RACK, REAR - ASSEMBLY (INC. 2-3)
-
20411-648 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING...BUSHING
-
48410-835 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, LOCKNUT, LOCK
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
108427-602 NUT, LOCKNUT, LOCK
-
110411-965 DECAL, SPEEDRACKDECAL, SPEEDRACK
-
122506-885 PANEL, FENDER - BLACKPANEL, FENDER - BLACK
-
134411-800 DECAL - "550 EFI" - RIGHTDECAL - "550 EFI" - RIGHT
-
134411-801 DECAL - "550 EFI" - LEFTDECAL - "550 EFI" - LEFT
-
141411-592 DECAL, REFLECTOR - RIGHT - REDDECAL, REFLECTOR - RIGHT - RED
-
141411-593 DECAL, REFLECTOR - LEFT - REDDECAL, REFLECTOR - LEFT - RED
-
150470-658 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
162411-609 DECAL, WARNING - TIRE PRESSUREDECAL, WARNING - TIRE PRESSURE
-
170412-582 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
181411-725 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
190423-101 SCREW, BODYSCREW, BODY
-
201406-356 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
202406-429 FOOTWELL - LEFTFOOTWELL - LEFT
-
210423-419 SCREW, MACHINESCREW, MACHINE
-
225506-497 FOOTPEG - BLACKFOOTPEG - BLACK
-
230423-355 SCREW, SHOULDERSCREW, SHOULDER
-
248476-516 SCREW, MACHINESCREW, MACHINE
-
250409-112 BEZEL, TAILLIGHT - RIGHTBEZEL, TAILLIGHT - RIGHT
-
250409-113 BEZEL, TAILLIGHT - LEFTBEZEL, TAILLIGHT - LEFT
-
263313-392 TAILLIGHT ASSEMBLY - RIGHT (INC. ONE NO. 27, ONE NO. 28, AND 29)TAILLIGHT ASSEMBLY - RIGHT (INC. ONE NO. 27, ONE NO. 28, AND 29)
-
293313-509 ...HARNESS, TAILLIGHT - RIGHT...HARNESS, TAILLIGHT - RIGHT
-
263313-393 TAILLIGHT ASSEMBLY - LEFT (INC. ONE NO. 27, ONE NO. 28, AND 29)TAILLIGHT ASSEMBLY - LEFT (INC. ONE NO. 27, ONE NO. 28, AND 29)
-
273313-506 ...BULB, TURN SIGNAL...BULB, TURN SIGNAL
-
283303-849 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
293313-507 ...HARNESS, TAILLIGHT - LEFT...HARNESS, TAILLIGHT - LEFT
-
303304-061 CLIP, U-NUTCLIP, U-NUT
