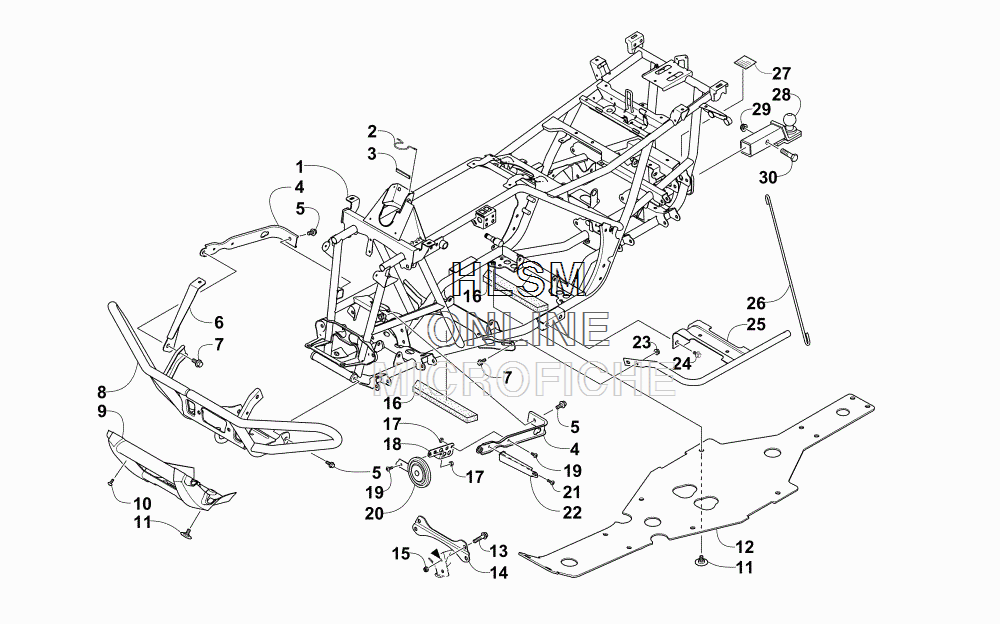

FRAME AND RELATED PARTS для Arctic Cat 550 EFT BLACK [A2015IBO4EETP] - 2015 года выпуска`
-
№АртикулНазвание
-
14506-550 FRAME, MAINFRAME, MAIN
-
22416-401 CLIP, ROUTINGCLIP, ROUTING
-
30706-371 TRIM - 3 FTTRIM - 3 FT
-
41506-596 CHANNEL, BUMPER MOUNTINGCHANNEL, BUMPER MOUNTING
-
58409-020 SCREW, CAPSCREW, CAP
-
61506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
61506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
78408-816 SCREW, CAPSCREW, CAP
-
81506-855 BUMPERBUMPER
-
91406-360 FASCIA, BUMPER - FRONTFASCIA, BUMPER - FRONT
-
100423-419 SCREW, MACHINESCREW, MACHINE
-
110423-101 SCREW, BODYSCREW, BODY
-
121406-030 PANEL, BELLYPANEL, BELLY
-
138409-025 SCREW, CAPSCREW, CAP
-
142516-852 BRACE, A-ARMBRACE, A-ARM
-
150423-744 NUT, LOCKNUT, LOCK
-
160406-289 PAD, FRAMEPAD, FRAME
-
170623-038 NUT W/WASHERNUT W/WASHER
-
182406-321 BRACKET, MOUNTING - HORNBRACKET, MOUNTING - HORN
-
198477-616 SCREW, MACHINESCREW, MACHINE
-
200430-053 HORN, ELECTRIC - 12VHORN, ELECTRIC - 12V
-
218477-620 SCREW, MACHINESCREW, MACHINE
-
222416-162 BRACKET, SUPPORT - RIGHTBRACKET, SUPPORT - RIGHT
-
222416-163 BRACKET, SUPPORT - LEFTBRACKET, SUPPORT - LEFT
-
238424-802 NUTNUT
-
248409-016 SCREW, CAPSCREW, CAP
-
251506-380 FOOTREST - RIGHTFOOTREST - RIGHT
-
251506-379 FOOTREST - LEFTFOOTREST - LEFT
-
262506-423 ROD, SUPPORTROD, SUPPORT
-
274411-550 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
-
280541-857 MOUNT, BALL HITCH (INC. 29-30)MOUNT, BALL HITCH (INC. 29-30)
-
290423-690 ...NUT, LOCK...NUT, LOCK
-
300423-693 ...SCREW, CAP...SCREW, CAP
