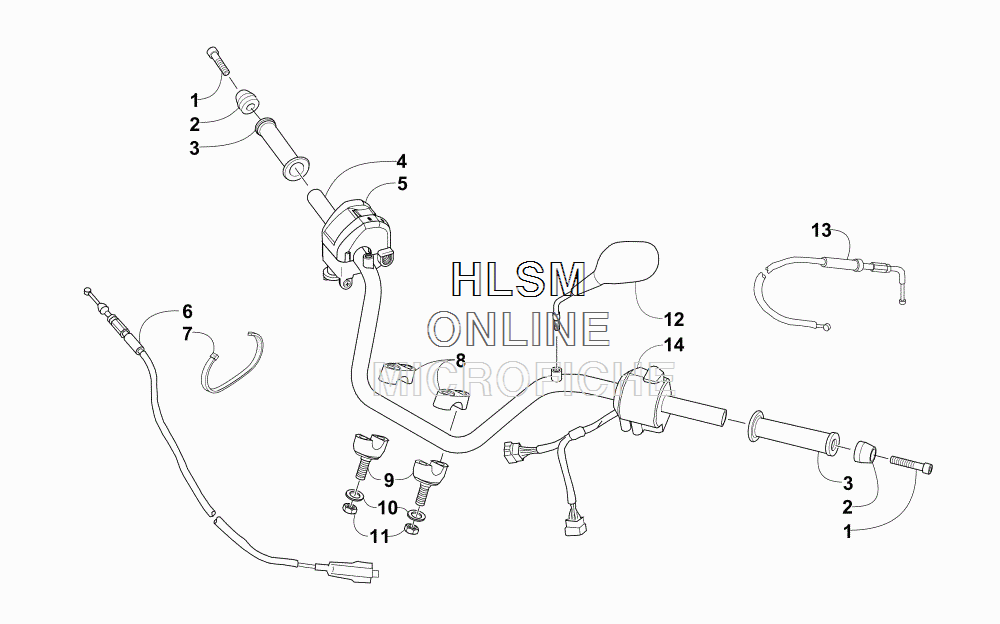

HANDLEBAR AND CONTROLS ASSEMBLY для Arctic Cat 300 DVX EU GREEN [A2015KSF2BEUZ] - 2015 года выпуска
-
№АртикулНазвание
-
13304-016 SCREW, CAPSCREW, CAP
-
23305-541 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
33305-905 GRIP, HANDLEGRIP, HANDLE
-
43304-723 HANDLEBARHANDLEBAR
-
53303-953 CASE, THROTTLE - ASSEMBLYCASE, THROTTLE - ASSEMBLY
-
63305-414 CABLE, THROTTLECABLE, THROTTLE
-
73303-839 TIE, CABLETIE, CABLE
-
83303-954 CLAMP, HANDLEBAR - UPPERCLAMP, HANDLEBAR - UPPER
-
93303-955 CLAMP, HANDLEBAR - LOWERCLAMP, HANDLEBAR - LOWER
-
103304-136 WASHERWASHER
-
113306-189 NUTNUT
-
123304-803 MIRROR ASSEMBLY - RIGHTMIRROR ASSEMBLY - RIGHT
-
123304-816 MIRROR ASSEMBLY - LEFTMIRROR ASSEMBLY - LEFT
-
133305-632 CABLE, CHOKECABLE, CHOKE
-
143304-736 SWITCH, CONTROL - ASSEMBLYSWITCH, CONTROL - ASSEMBLY
