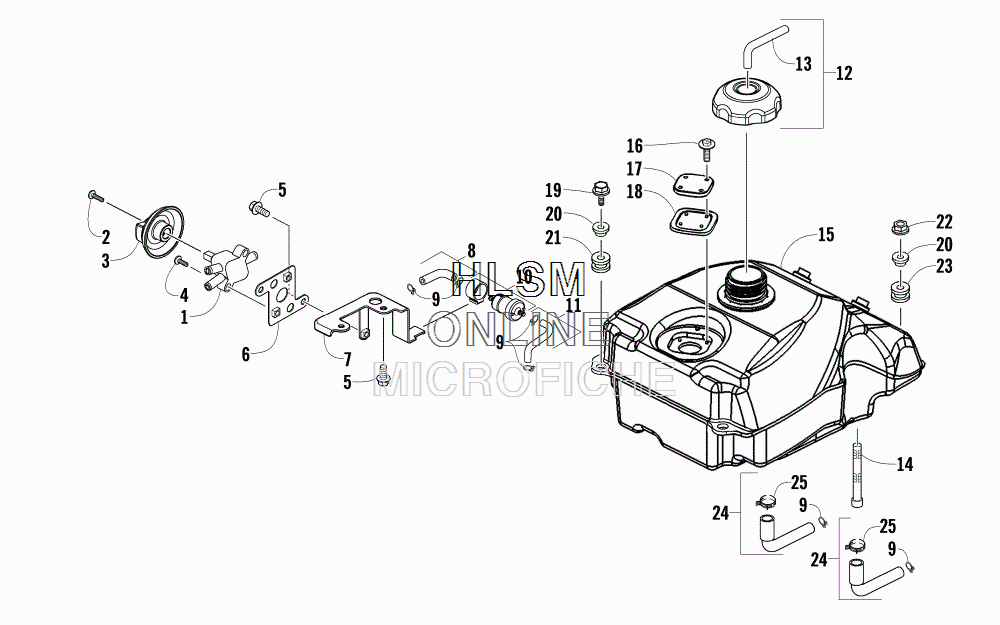

GAS TANK ASSEMBLY для Arctic Cat 300 DVX EU GREEN [A2015KSF2BEUZ] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3306-884 SHUT-OFF, FUEL
    SHUT-OFF, FUEL
  • 2
    5507-017 SCREW
    SCREW
  • 3
    3303-701 COVER, FUEL SHUT-OFF
    COVER, FUEL SHUT-OFF
  • 4
    3303-316 SCREW, MACHINE
    SCREW, MACHINE
  • 5
    3304-409 BOLT WASHER 5*12
    BOLT WASHER 5*12
  • 6
    3305-551 BRACKET, MOUNTING - FUEL SHUT-OFF
    BRACKET, MOUNTING - FUEL SHUT-OFF
  • 7
    3305-419 BRACKET, SUPPORT
    BRACKET, SUPPORT
  • 8
    3305-642 HOSE ASSEMBLY (INC. 9)
    HOSE ASSEMBLY (INC. 9)
  • 9
    3303-349 ...CLAMP, HOSE
    ...CLAMP, HOSE
  • 10
    3305-641 FILTER, FUEL
    FILTER, FUEL
  • 11
    3305-652 HOSE ASSEMBLY (INC. 9)
    HOSE ASSEMBLY (INC. 9)
  • 12
    3305-975 CAP, GAS TANK (INC. 13)
    CAP, GAS TANK (INC. 13)
  • 13
    3304-169 ...HOSE, VENT
    ...HOSE, VENT
  • 14
    3303-058 STRAINER, FUEL
    STRAINER, FUEL
  • 15
    3306-584 TANK, GAS
    TANK, GAS
  • 16
    3305-397 SCREW, CAP
    SCREW, CAP
  • 17
    3305-417 COVER, ACCESS
    COVER, ACCESS
  • 18
    3305-418 SEAL
    SEAL
  • 19
    3304-551 BOLT, FLANGE - 6 X 22
    BOLT, FLANGE - 6 X 22
  • 20
    3303-226 INSERT
    INSERT
  • 21
    3303-406 GROMMET
    GROMMET
  • 22
    3304-654 NUT, FLANGE - 6 MM
    NUT, FLANGE - 6 MM
  • 23
    3304-647 GROMMET
    GROMMET
  • 24
    3305-439 HOSE ASSEMBLY (INC. 25 AND TWO NO. 9)
    HOSE ASSEMBLY (INC. 25 AND TWO NO. 9)
  • 25
    3303-351 CLAMP, HOSE
    CLAMP, HOSE
