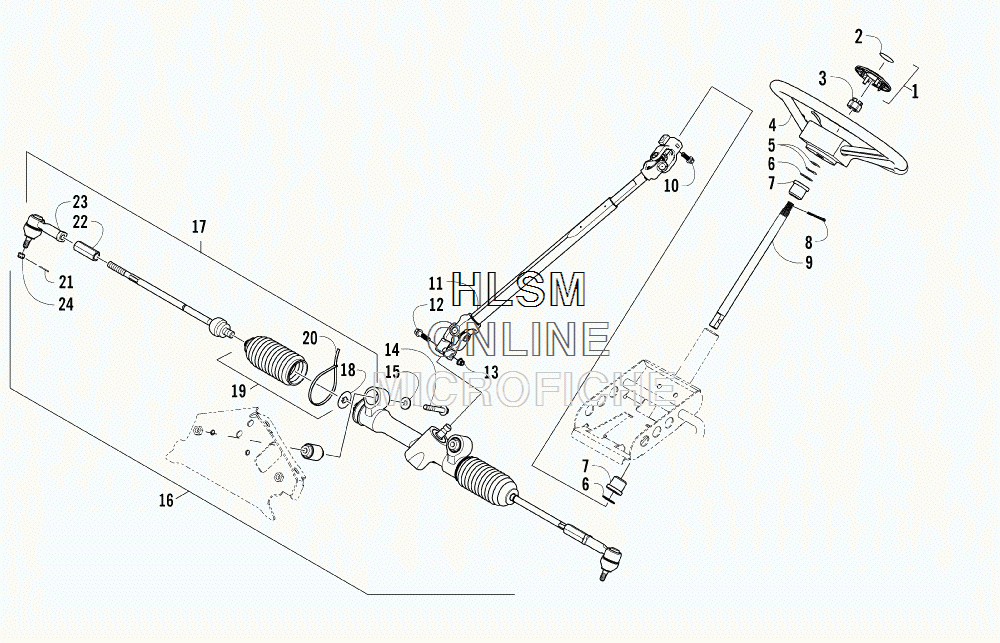

STEERING ASSEMBLY для Arctic Cat Prowler 500 HDX RED [U2014P5K4CUSR] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    0505-690 CAP, STEERING WHEEL (INC. 2)
    CAP, STEERING WHEEL (INC. 2)
  • 2
    1411-798 ...DECAL, AIRCAT
    ...DECAL, AIRCAT
  • 3
    0423-884 NUT
    NUT
  • 4
    0405-398 WHEEL, STEERING - ASSEMBLY
    WHEEL, STEERING - ASSEMBLY
  • 5
    0828-071 WASHER
    WASHER
  • 6
    0423-558 WASHER
    WASHER
  • 7
    0405-155 BUSHING
    BUSHING
  • 8
    1423-045 CLIP, RETAINING
    CLIP, RETAINING
  • 9
    0405-321 SHAFT, UPPER STEERING
    SHAFT, UPPER STEERING
  • 10
    1423-047 SCREW, CAP
    SCREW, CAP
  • 11
    0405-438 SHAFT, LOWER STEERING - ASSEMBLY
    SHAFT, LOWER STEERING - ASSEMBLY
  • 12
    1423-053 SCREW, CAP
    SCREW, CAP
  • 13
    8427-802 NUT, LOCK
    NUT, LOCK
  • 14
    8408-070 SCREW, CAP
    SCREW, CAP
  • 15
    0623-728 WASHER
    WASHER
  • 16
    0505-689 HOUSING, RACK AND PINION (INC. 17-23)
    HOUSING, RACK AND PINION (INC. 17-23)
  • 17
    0505-772 ...TIE ROD - ASSEMBLY (INC. 18-23)
    ...TIE ROD - ASSEMBLY (INC. 18-23)
  • 18
    0405-428 ......PLATE, RETAINING
    ......PLATE, RETAINING
  • 19
    0505-745 ......KIT, TIE ROD BOOT (INC. 20-21)
    ......KIT, TIE ROD BOOT (INC. 20-21)
  • 20
    0123-903 LLL TIE, CABLE - 11.5 IN.
    LLL TIE, CABLE - 11.5 IN.
  • 21
    0623-175 LLL PIN, COTTER
    LLL PIN, COTTER
  • 22
    0505-640 ......KIT, NUT (INC. 21)
    ......KIT, NUT (INC. 21)
  • 23
    0505-743 ......KIT, TIE ROD END (INC. 21)
    ......KIT, TIE ROD END (INC. 21)
  • 24
    0423-072 NUT
    NUT
