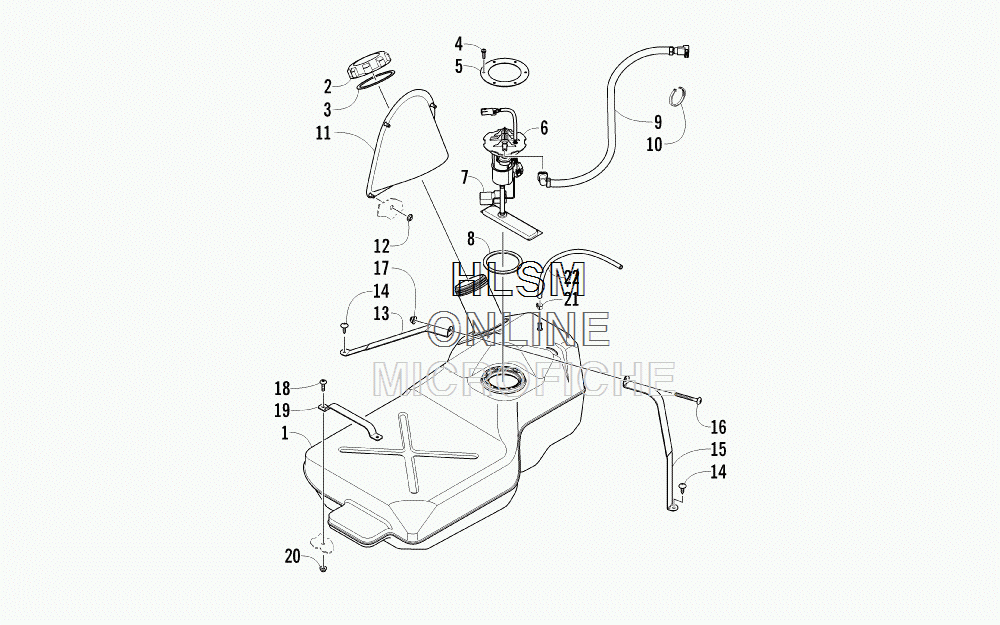

GAS TANK ASSEMBLY для Arctic Cat Prowler 500 HDX RED [U2014P5K4CUSR] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-309 TANK, GAS - ASSEMBLY (INC. 2-5)
    TANK, GAS - ASSEMBLY (INC. 2-5)
  • 2
    0470-541 ...CAP, GAS TANK (INC. 3)
    ...CAP, GAS TANK (INC. 3)
  • 3
    1670-228 ......GASKET, GAS TANK CAP
    ......GASKET, GAS TANK CAP
  • 4
    0423-898 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 5
    2670-042 ...PLATE, RETAINING
    ...PLATE, RETAINING
  • 6
    0570-334 PUMP, FUEL - ASSEMBLY (INC. 7-8)
    PUMP, FUEL - ASSEMBLY (INC. 7-8)
  • 7
    2670-235 ...FLOAT
    ...FLOAT
  • 8
    0470-838 ...SEAL
    ...SEAL
  • 9
    0570-388 HOSE, GASLINE
    HOSE, GASLINE
  • 10
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 11
    1406-886 INSERT, GAS TANK CAP
    INSERT, GAS TANK CAP
  • 12
    0423-357 NUT, STAMPED
    NUT, STAMPED
  • 13
    0470-829 BRACKET, HOLD-DOWN - RIGHT
    BRACKET, HOLD-DOWN - RIGHT
  • 14
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    0470-830 BRACKET, HOLD-DOWN - LEFT
    BRACKET, HOLD-DOWN - LEFT
  • 16
    8476-650 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    8427-602 NUT, LOCK
    NUT, LOCK
  • 18
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    0470-544 BRACKET, HOLD-DOWN - FRONT
    BRACKET, HOLD-DOWN - FRONT
  • 20
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 21
    0423-688 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    0410-070 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
