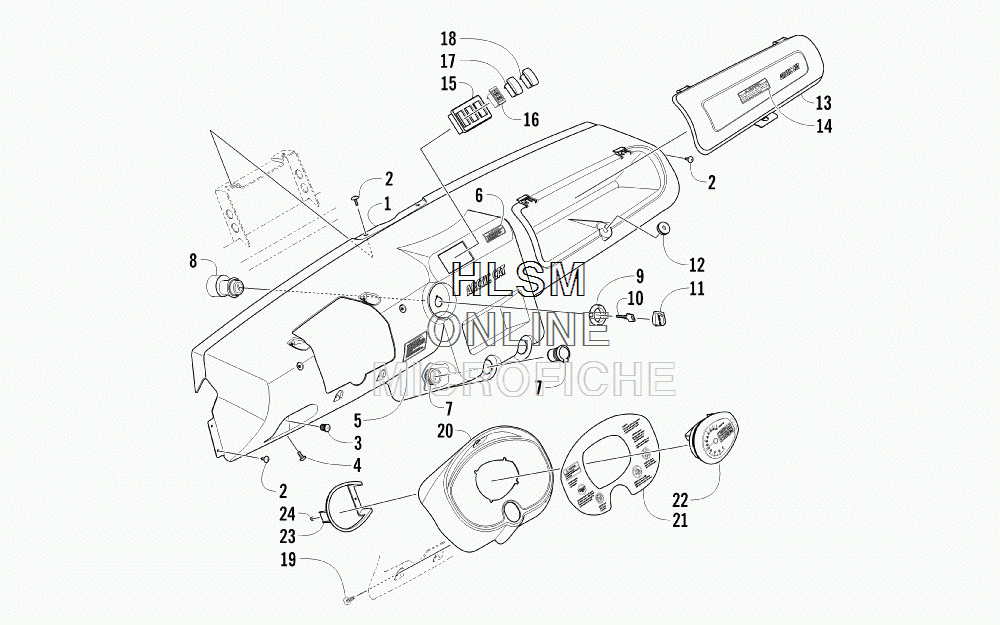

DASH ASSEMBLY для Arctic Cat PROWLER 1000 XTZ 4X4 [U2014P4W1POSE] (INTERNATIONAL) - 2014 года выпуска
-
№АртикулНазвание
-
14506-357 PANEL, DASHPANEL, DASH
-
20623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
31623-697 PLUGPLUG
-
40423-609 SCREW, MACHINESCREW, MACHINE
-
51411-904 DECAL, STARTINGDECAL, STARTING
-
61411-124 DECAL, WARNING - DIFFERENTIAL LOCKDECAL, WARNING - DIFFERENTIAL LOCK
-
70641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
80430-089 SWITCH, IGNITION (INC. 9-11)SWITCH, IGNITION (INC. 9-11)
-
90430-050 ...NUT, RETAINING...NUT, RETAINING
-
100430-042 ...KEY, IGNITION - SERIES (Y SERIES - LEFT-SIDE CUT)...KEY, IGNITION - SERIES (Y SERIES - LEFT-SIDE CUT)
-
100430-043 ...KEY, IGNITION - SERIES (Z SERIES - RIGHT-SIDE CUT)...KEY, IGNITION - SERIES (Z SERIES - RIGHT-SIDE CUT)
-
110430-054 ...COVER, KEY...COVER, KEY
-
120423-541 GROMMET, LATCH - GLOVE BOXGROMMET, LATCH - GLOVE BOX
-
134506-420 COVER, GLOVE BOX (INC. 14)COVER, GLOVE BOX (INC. 14)
-
142411-512 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
150409-069 PANEL, SWITCH-MOUNTPANEL, SWITCH-MOUNT
-
160420-117 LIGHT, INDICATORLIGHT, INDICATOR
-
170409-067 SWITCH, LIGHTSWITCH, LIGHT
-
180409-061 SWITCH, 2WD/4WD/DIFFERENTIAL LOCKSWITCH, 2WD/4WD/DIFFERENTIAL LOCK
-
190423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
201406-727 POD, INSTRUMENTPOD, INSTRUMENT
-
213411-633 DECAL, WARNING - DASHDECAL, WARNING - DASH
-
220520-159 GAUGE, ANALOG/LCDGAUGE, ANALOG/LCD
-
230420-065 BRACKET, RETAININGBRACKET, RETAINING
-
240423-493 NUT W/WASHERNUT W/WASHER
