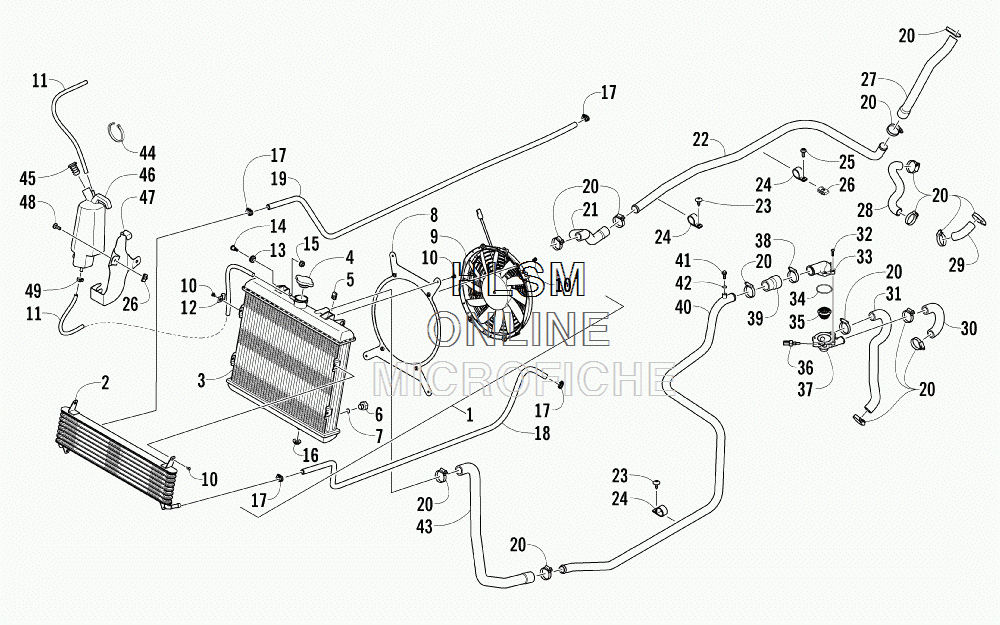

COOLING ASSEMBLY для Arctic Cat PROWLER 1000 XTZ 4X4 [U2014P4W1POSE] (INTERNATIONAL) - 2014 года выпуска`
-
№АртикулНазвание
-
10513-036 RADIATOR ASSEMBLY (INC. 2-13)RADIATOR ASSEMBLY (INC. 2-13)
-
20413-241 ...COOLER, OIL...COOLER, OIL
-
30413-216 ...RADIATOR...RADIATOR
-
40413-255 ...CAP, RADIATOR...CAP, RADIATOR
-
51623-637 ...CLIP, U-NUT...CLIP, U-NUT
-
60413-195 ...PLUG, DRAIN...PLUG, DRAIN
-
71602-213 ...O-RING...O-RING
-
80413-217 ...BRACKET, MOUNTING - FAN...BRACKET, MOUNTING - FAN
-
90413-123 ...FAN, COOLING...FAN, COOLING
-
108470-510 ...SCREW, MACHINE...SCREW, MACHINE
-
110610-011 ...HOSE - 25 FT...HOSE - 25 FT
-
120423-351 ...CLAMP, ROUTING...CLAMP, ROUTING
-
130423-030 ...GROMMET...GROMMET
-
140423-484 SCREW, SHOULDERSCREW, SHOULDER
-
150623-038 NUT W/WASHERNUT W/WASHER
-
160423-028 BUSHING, STEMBUSHING, STEM
-
170423-632 CLAMP, HOSECLAMP, HOSE
-
180410-183 HOSE, OIL COOLER - INHOSE, OIL COOLER - IN
-
190410-184 HOSE, OIL COOLER - OUTHOSE, OIL COOLER - OUT
-
200423-496 CLAMP, HOSECLAMP, HOSE
-
210410-251 HOSE, COOLANT - RADIATOR/COOLANT PIPEHOSE, COOLANT - RADIATOR/COOLANT PIPE
-
220410-249 PIPE, COOLANTPIPE, COOLANT
-
230623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
240423-594 CLAMP, ROUTINGCLAMP, ROUTING
-
258476-620 SCREW, MACHINESCREW, MACHINE
-
260423-577 CLIP, U-NUTCLIP, U-NUT
-
270410-252 HOSE, COOLANT - COOLANT PIPE/WATER PUMPHOSE, COOLANT - COOLANT PIPE/WATER PUMP
-
280410-116 HOSE, COOLANT - CROSSOVER - COLDHOSE, COOLANT - CROSSOVER - COLD
-
290410-115 HOSE, COOLANT - CROSSOVER - COLDHOSE, COOLANT - CROSSOVER - COLD
-
300410-191 HOSE, COOLANT - CYLINDER/THERMOSTATHOSE, COOLANT - CYLINDER/THERMOSTAT
-
310410-190 HOSE, COOLANT - CYLINDER/THERMOSTATHOSE, COOLANT - CYLINDER/THERMOSTAT
-
328470-520 SCREW, MACHINESCREW, MACHINE
-
330808-092 COVER, THERMOSTATCOVER, THERMOSTAT
-
340830-173 O-RINGO-RING
-
350808-093 THERMOSTATTHERMOSTAT
-
360808-124 SENSOR, ENGINE COOLANT TEMPERATURESENSOR, ENGINE COOLANT TEMPERATURE
-
370808-189 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
381623-093 CLAMP, HOSECLAMP, HOSE
-
390410-189 HOSE, COOLANT - THERMOSTAT/COOLANT PIPEHOSE, COOLANT - THERMOSTAT/COOLANT PIPE
-
400510-597 PIPE, COOLANT W/BLEED VALVEPIPE, COOLANT W/BLEED VALVE
-
410423-984 SCREW, BLEEDSCREW, BLEED
-
420423-921 O-RINGO-RING
-
430410-092 HOSE, COOLANT - COOLANT PIPE/RADIATORHOSE, COOLANT - COOLANT PIPE/RADIATOR
-
440623-751 CABLE TIE - 11.75 IN.CABLE TIE - 11.75 IN.
-
440623-316 TIE, CABLE - 14 IN.TIE, CABLE - 14 IN.
-
450413-087 PLUGPLUG
-
460413-086 BOTTLE, OVERFLOWBOTTLE, OVERFLOW
-
470410-199 BRACKET, MOUNTING - OVERFLOW BOTTLEBRACKET, MOUNTING - OVERFLOW BOTTLE
-
488476-616 SCREW, MACHINESCREW, MACHINE
-
490124-045 CLAMP, HOSECLAMP, HOSE
